产品特点：
★高精度钻铣头
★精密制造，使用P5等级的轴承
★精密磨削的工作台
★钻铣头可回转可倾斜

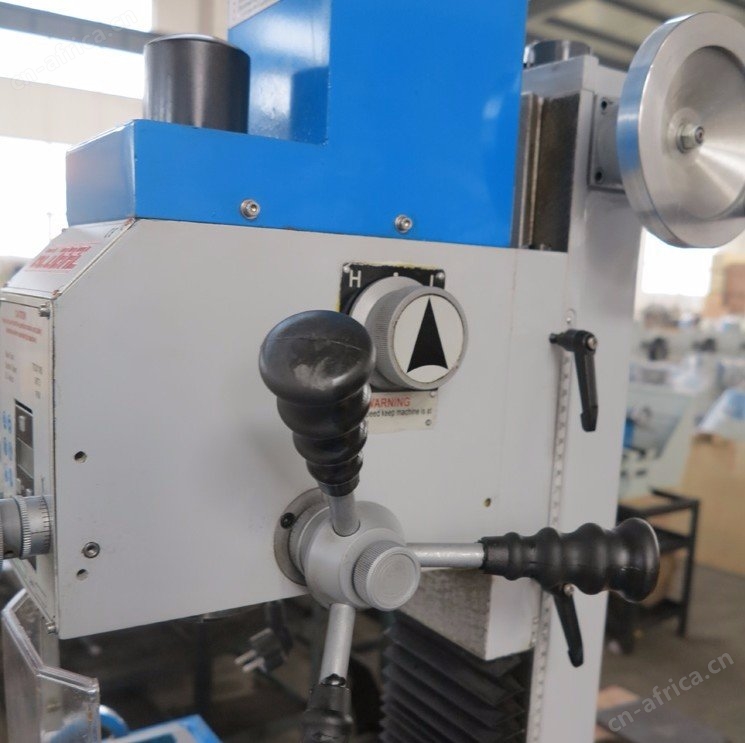

★微动进给手轮和快速进给手柄
★工作台间隙镶条调整
★工作台限位位置可调
★定位准确、刚性强、切削力强大
★全齿轮传动、低噪音
★主轴转速从50-1500rpm和100-3000rpm
Feature：
★High precision bored and honed milling head
★Precision-manufactured,taper roller bearings in P5 quality
★Precision ground worktable
★Tilting and swiveling head
★With Mirco-feed handwheel and lever down feed
★Adjustable gibs on table
★Adjustable stops on table
★Accurate position, strong rigidity, strong cutting power
★Gear drive, lower noise
★Stepless spindle speeds from 50 to 1500 rpm and 100 to3000 rpm

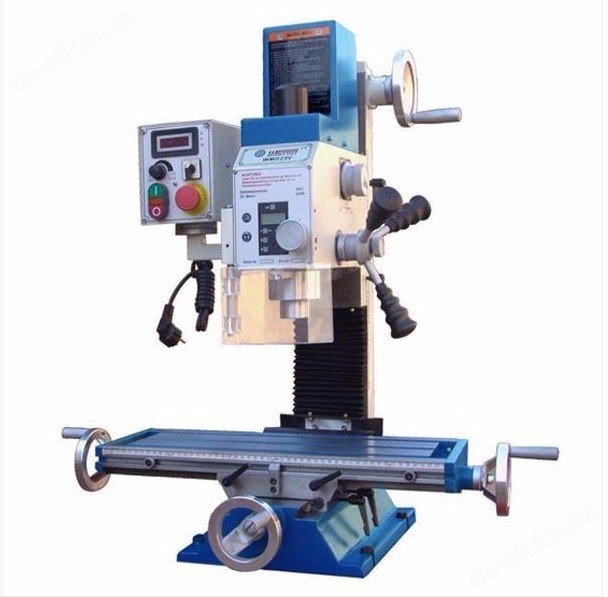

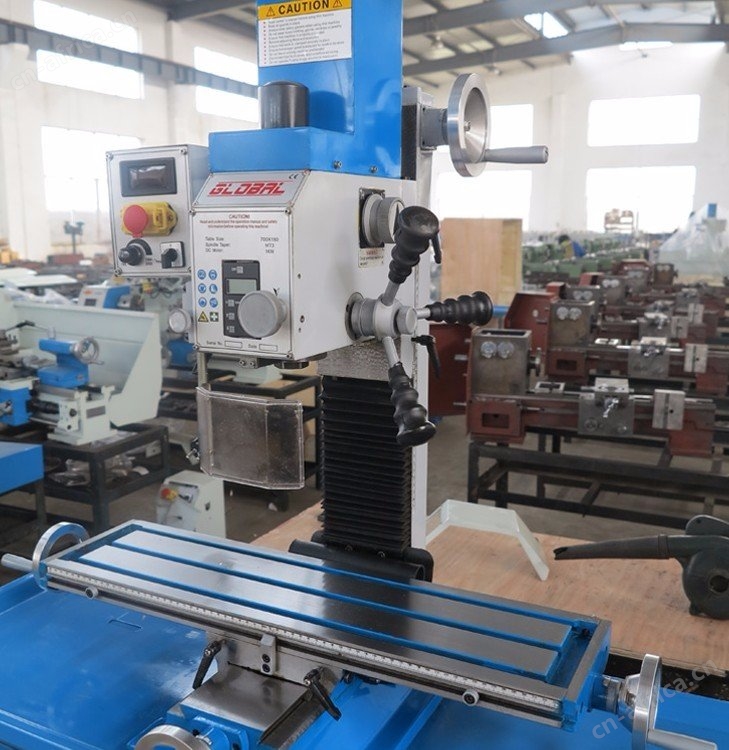

BF25Vario技术参数Specification
型号Model | BF25VARIO |
钻孔直径Max. drilling capacity | Max. Φ22mm |
面铣能力Max. face milling capacity | Max. Φ65mm |
立铣能力Max. end milling capacity | Max. Φ20mm |
主轴手动升降行程Working range | 190mm |
工作台尺寸Working table size | 500X180mm |
T形槽尺寸T-slot size | 12mm |
X轴行程X-axis travel | 290mm |
Y轴行程Y-axis travel | 180mm |
Z轴行程Z-axis travel | 380mm |
主轴锥度Taper of spindle bore | MT3/M12 |
套筒行程Sleeve travel | 52mm |
主轴转速Range of spindle speeds | 50-3000rpm |
主轴箱左右旋角Headstock tilt left & right | 90° |
电机功率Motor power | 850W |
净重/毛重NW/GW | 115/135Kg |
包装箱尺寸（长X宽X高）Package size（LXWXH） | 620X580X900mm |
标准附件standard Accessories：
★速度显示器Speed display
★卤素工作灯Halogen Lamp
★莫氏接杆Morse taper MT3/B16
★吊杆Draw in rod M10
★钻夹头Drill chunk 0-13mm
★工具箱Tools&Tool box
可选附件Optional Accessories：
★冷却系统Coolant pump system
★自紧钻夹头Keyless chunk 1-13mm/B16
★平口钳Milling vice
★铣夹头Collect chunk
★立铣刀End mill cutter
★全钢底座Stand
★油盘Chip tray
