产品介绍：

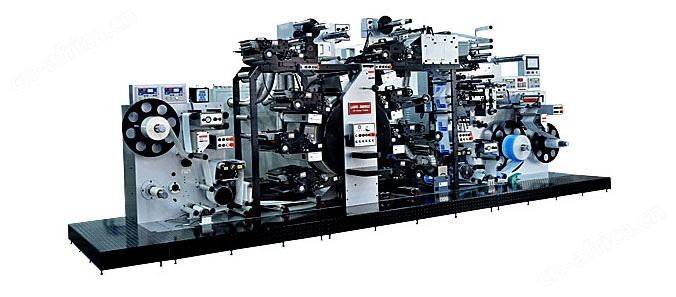

▲世界多功能组台机，镭射转印涂胶上膜功能齐全，前中后冷烫一机达成
▲The worid's first innovatio of multifunction combination machine With the polymar-coatad gelatinize and anterior middle posteror Cold foil.
▲世界多功能组台机，镭射转印涂胶上膜功能齐全，前中后冷烫一机达成
▲The worid's first innovatio of multifunction combination machine With the polymar-coatad gelatinize and anterior middle posteror Cold foil.
| Specification规格 : | |||
| 印刷座 | Printing Station | (Sets) | 7 |
| 上金油 | Flexo varnishing station(Part） | (Set） | 1 |
| 传动齿轮 | Gearing | (cp) | 1/8* |
| 纸宽 | Max.paper width | (mm) | 260 |
| 印刷宽 | Max.printing width | (mm) | 250 |
| 送纸径（） | 送纸径（） | (mm) | 800 |
| 复卷径（） | Rewind roll dia.Max | (mm) | 800 |
| 印刷长度 | 最长max. | (mm) | 460.375 |
| Print length | 最短min. | (mm) | 190.5 |
| 印刷速度 | Max.printing Speed | (m／min) | 100 |
| 机械重量 | 浮重Net weight | (kgs) | 8100 |
| Machine weight | 毛重 Gross weight | (kgs) | 9100 |
| 主机马达Main Motor | 380v(kw) | 7.5 | |
| 耗电与马达 | 匀墨马达（7个）Stirring motor(7PCS) | ||
| Power＆Motor | UV乾燥8套(UV dryer8sets) 5Kw／PC 7LAMPS | (w) | 1400 |
| 7KW／PC lLAMPS | (kw) | 42 | |
| 机械尺寸 | Machine Size L*W*H | (m) | 6.2×1.6×2.2 |
| 标准配备： | Standard Accessories | ||
| 印刷座 | 七座 | Printing station | 7Sets |
| 版胴（尺寸任选） | 五套 | Printing cylinder(Size Optional) | 5Sets |
| UV | 六座 | UV dryer | 7Sets |
| 修纸边 | 七套 | Paper Slitting System | 1Set |
| 工具 | 一套 | Tools | 1Set |
| 贴版台 | 一套 | Biock setting tabIe | 1Set |
| 封边器 | 一套 | Automatic web guiding system | 1Set |
| 接纸台 | 一套 | Splicing platform | 1Set |
| 上金油座(含UV系统） | 一套 | Flexo varnishing Syste with UV dryer | 1Set |
| 可乐娜表面处理器 | Corona treater (Foil can be treated) | ||
| 胶裹和背面印刷设备 | Back Side printing device | ||
| 圆垫模切座 | Rotary Die Cutting Device | ||
| 静电消除器 | Electrostatic Eliminato. | ||
| 选购配备： | The Selects and Purchases Equipments: |
| 冷烫系统 | Cole foil system |
| 凹版印刷系统 | Intaglio plate printing system |
| 圆纲版印刷系统 | Rotary screen printing system |
| 切单张系统 | Cuts the single sheet system |
| 静态观测系统 | Static state observation sysiem |
| 冷却系统 | Cooling system |
| 适用材料 | Suitable materlals |
| 贴纸、积层材、BOPP膜、收缩膜、 石化附属环保材料和特殊材料等 | Adhesive paper,Laminatem materials BOPP Film,Shrinkable Film Styrofam and othe Special materials |
| 适用刀模:磁性圆刀模、雕刻圆胴刀模 | Suitable Die-Cuttling:Magnetic cylinder,flexible plate,rotarydie cut，Rotaoy hard dies. |
| 印版版材：树脂版 | Standard Plate Making Reference：photoPolymer plate |
| 版材硬度45°~55°度 | Plate Hardness:45°~55° |
| 版材厚度0.95mm | Plate Thickness:0.95mm |
| 洗刷深赓0.69mm（参考） | Depth:0.69mm(Reference） |
