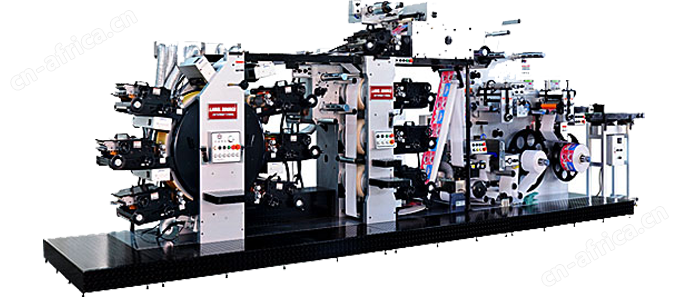

产品介绍：
▲集合三烫金，凸版，柔印，圆纲等特殊配置适用于日化类标签，可实现多功能印刷效果
▲wim three kinds of cold-stamplng. letterpress. flexo. Screen printing and Other pecial devicesto achive multifunction prieffection Widly used in cosmetic lable.
▲集合三烫金，凸版，柔印，圆纲等特殊配置适用于日化类标签，可实现多功能印刷效果
▲wim three kinds of cold-stamplng. letterpress. flexo. Screen printing and Other pecial devicesto achive multifunction prieffection Widly used in cosmetic lable.
| Specification规格 : | |||
| 印刷座 | Printing Station | (Sets) | 9 |
| 上金油 | Flexo varnishing station(Part） | (Set） | 1 |
| 传动齿轮 | Gearing | (cp) | 1/8* |
| 纸宽 | Max.paper width | (mm) | 260 |
| 印刷宽 | Max.printing width | (mm) | 250 |
| 送纸径（） | Unwind roll dia.max. | (mm) | 800 |
| 复卷径（） | Rewind roll dia.Max | (mm) | 800 |
| 印刷长度 | 最长max. | (mm) | 460.375 |
| Print length | 最短min. | (mm) | 190.5 |
| 印刷速度 | Max.printing Speed | (m／min) | 100 |
| 机械重量 | 浮重Net weight | (kgs) | 8800 |
| Machine weight | 毛重 Gross weight | (kgs) | 9800 |
| 主机马达Main Motor | 380v(kw) | 11 | |
| 耗电与马达 | 匀墨马达（8个）Stirring motor(8PCS) | ||
| Power＆Motor | UV乾燥9套(UV dryer9sets) 5Kw／PC 8LAMPS | (w) | 1800 |
| 7KW／PC lLAMPS | (kw) | 52 | |
| 机械尺寸 | Machine Size L*W*H | (m) | 6.2×1.6×2.2 |
| 标准配备： | Standard Accessories | ||
| 印刷座 | 四座 | Printing station | 4Sets |
| 版胴 (尺寸任选） | 五套 | Printing cylinder(Size Optional) | 5Sets |
| UV | 四座 | UV dryer | 4Sets |
| 修纸边 | 一套 | Papar Slitting Sy.tem | 1Set |
| 工具 | 一套 | Tools | 1Set |
| 贴版台 | 一套 | Block setting table | 1Set |
| 对边器 | 一套 | Automatic web gulding system | 1Set |
| 接纸台 | 一套 | Splicing platform | 1Set |
| 上金油座（台UV系统） | 一套 | Flaxo varnishing System width UV drye | 1Set |
| 可乐娜表面处理器 | Coronat tteater (Fol can be treated) | ||
| 胶裹和背面印刷设备 | Back side printing device | ||
| 圆垫模切座 | Rotary Die Cutting Device | ||
| 静电消除器 | Electrostatic Eliminator | ||
| 上护膜（有、无底纸均可） | Opp Laminatlng System | ||
| 选购配备： | The Selects and Purchases Equipments: |
| 冷烫系统 | Cole foil system |
| 凹版印刷系统 | Intaglio plate printing system |
| 圆纲版印刷系统 | Rotary screen printing system |
| 切单张系统 | Cuts the single sheet system |
| 静态观测系统 | Static state observation sysiem |
| 冷却系统 | Cooling system |
| 适用材料 | Suitable materlals: |
| 贴纸、积层材、BOPP膜、收缩膜、 石化附属环保材料和特殊材料等 | Adhesive paper,Laminate materials BOPP Film,Shrinkable Film Styrofam and othe Special materials |
| 适用刀模 | Suitable Die-Cuttling: |
| 磁性圆刀模、雕刻圆胴刀模 | Magnetic cylinder,flexible plate,rotarydie cut，Rotaoy hard dies. |
| 印版版材：树脂版 | Standard Plate Making Reference：photoPolymer plate |
| 版材硬度45°~55°度 | Plate Hardness:45°~55° |
| 版材厚度0.95mm | Plate Thickness:0.95mm |
| 洗刷深赓0.69mm（参考） | Depth:0.69mm(Reference） |
