IFRM04P15A5/Q-Baumer,电感传感器,IFRM04P15A5/Q-广西壹点电子商务有限公司

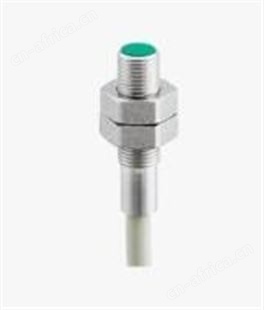

Baumer电感传感器IFRM04P15A5/Q

电感式接近开关

IFRM 04P15A5/Q

nductive proximity switch - subminiature

1 mm

PNP 常开 (NO)

电线, 0,5 m

-25 … 75 °C

IP 67

技术数据

基本参数

安装方式

屏蔽式

额定感应距离 Sn

1 mm

迟滞

2 … 20 % (Sr)

电气参数

开关频率

< 5 kHz

电源电压范围 +Vs

10 … 30 VDC

电流消耗（无负载）

12 mA

输出电路

PNP 常开 (NO)

压降 Vd

< 2 VDC

输出电流

< 100 mA

短路保护

是

反极性保护

是

机械参数

类型

圆柱型光版

感应面材质

LCP

外壳材质

不锈钢

尺寸

4 mm

外壳长度

15 mm

连接方式

电线, 0,5 m

环境条件

工作温度

-25 … +75 °C

防护等级

IP 67
