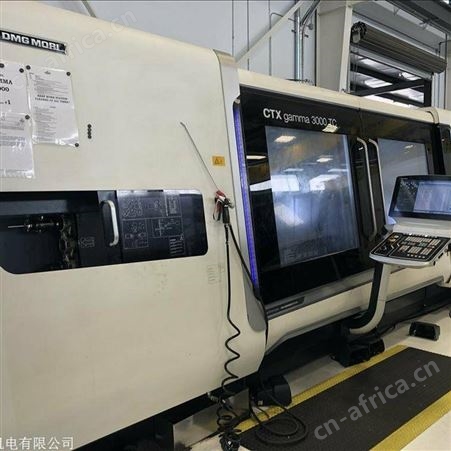

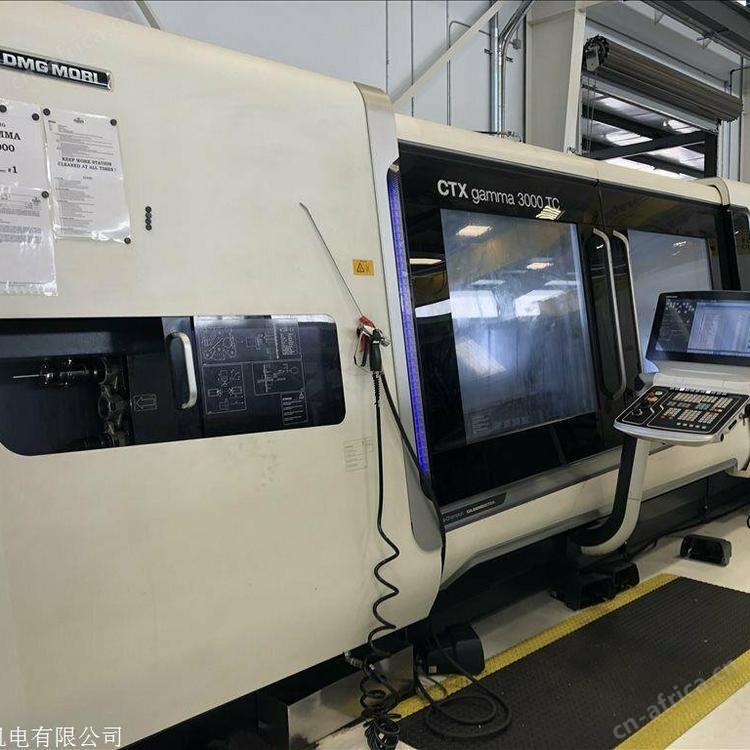

DMG MORI CTX GAMMA 3000 TC TURNING & MILLING CENTER

　　Preliminary Specification.

　　Catalogue Specifications

　　Maximum Swing: 35"

　　Swing Over Turret 2: 27.6"

　　Maximum Turning Length: 120"

　　Bar Work Capacity: 5"

　　Maximum Distance Between Chucks: 120"

　　X-Axis Travel: 31.5"

　　Y-Axis Travel: +/- 8.3"

　　Z-Axis Travel: 120.1"

　　B-Axis Range: 240°

　　Maximum Spindle Speed: 2000 RPM

　　Number of Speed Ranges: 2

　　Spindle Hole Diameter: 5"

　　Spindle 2 Maximum Speed: 4000 RPM

　　Minimum Spindle Indexing Increment: .0001°

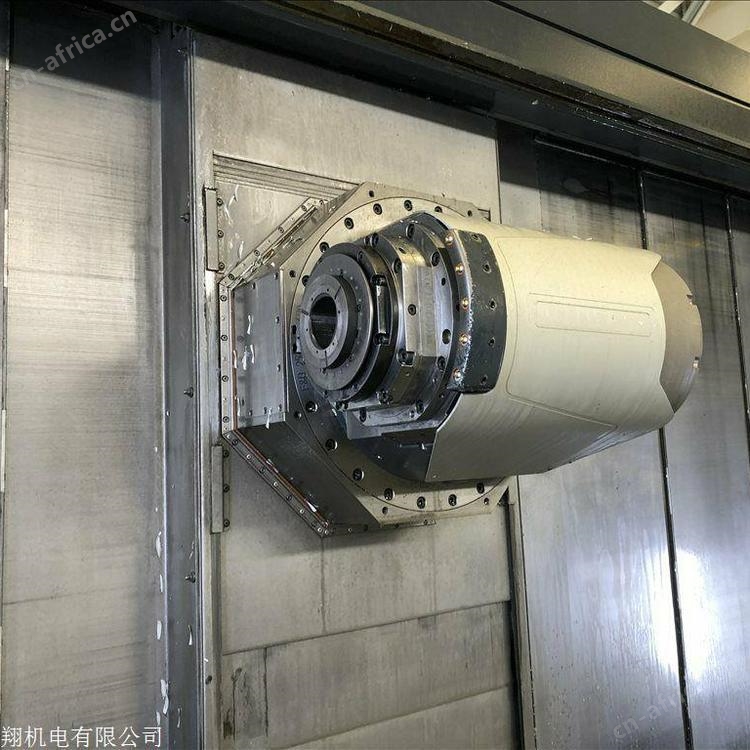

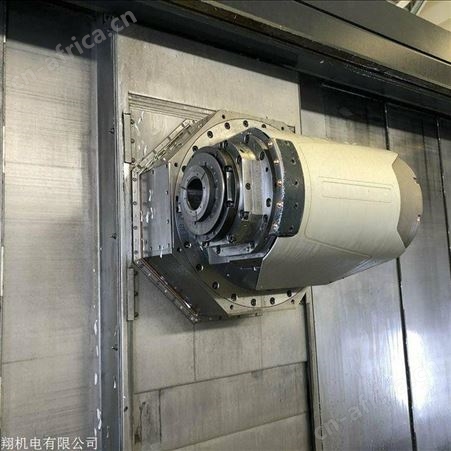

　　Milling Spindle Maximum Speed: 10,000 RPM

　　Milling Spindle Taper: Capto C8

　　Chuck Size: (2) 21" 3-Jaw

　　Equipped With:

　　Siemens 840D w/ Touch Screen

　　Long Boring Bar Changer for Boring Bars up to 31.5"

　　80-ATC

　　Hydraulic Actuators

　　Renishaw MP700 Probing

　　High Pressure Coolant

　　67 HP Main Spindle Drive / 53 HP Counter Spindle

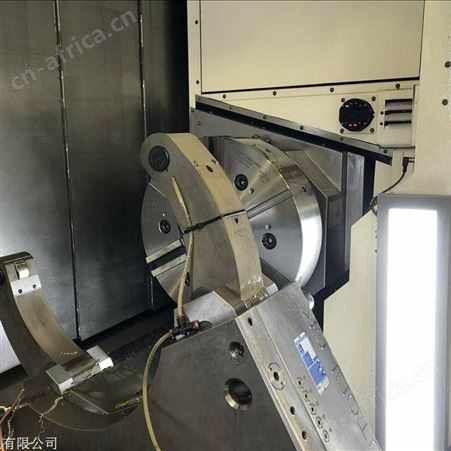

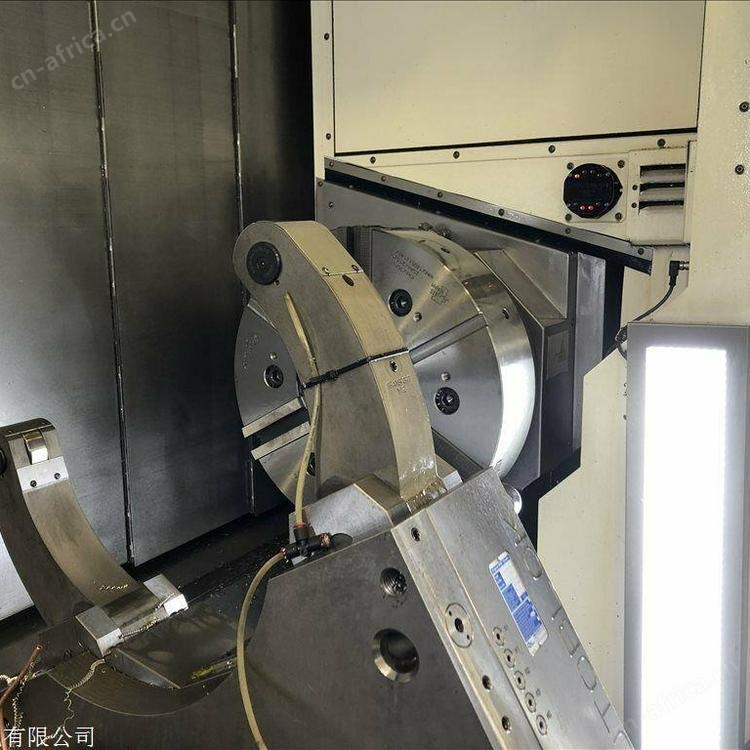

　　18" Capacity SMW Omni Rest

　　Chip Conveyor

　　Coolant Tanks

　　Contact Perfection Global for Dimensions

　　Approximate Weight: 67000 Lbs

　　Year (New 2014)
