技术参数

Specifications

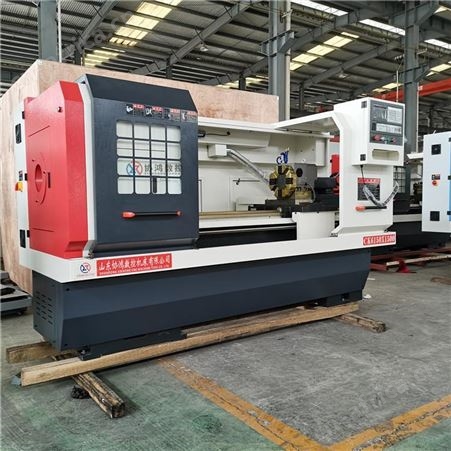

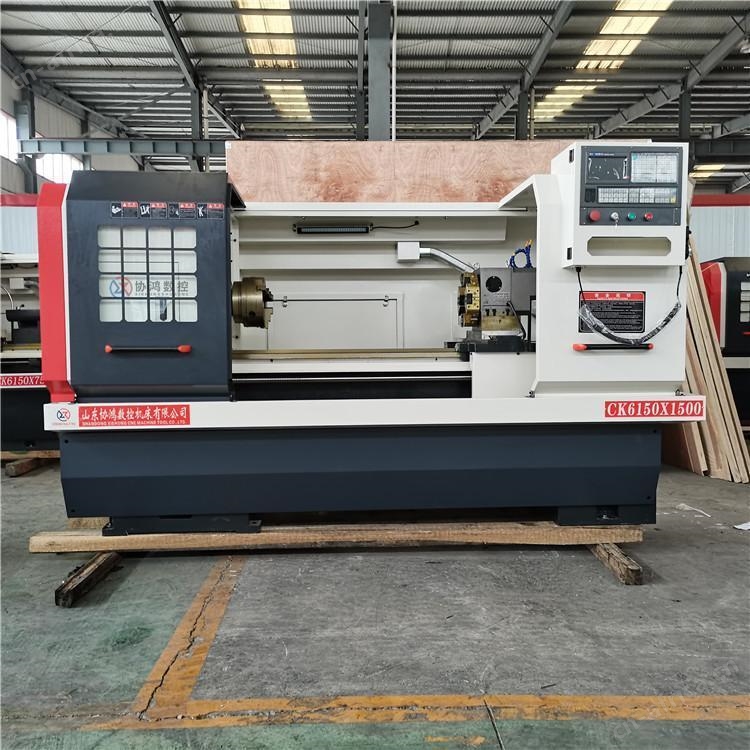

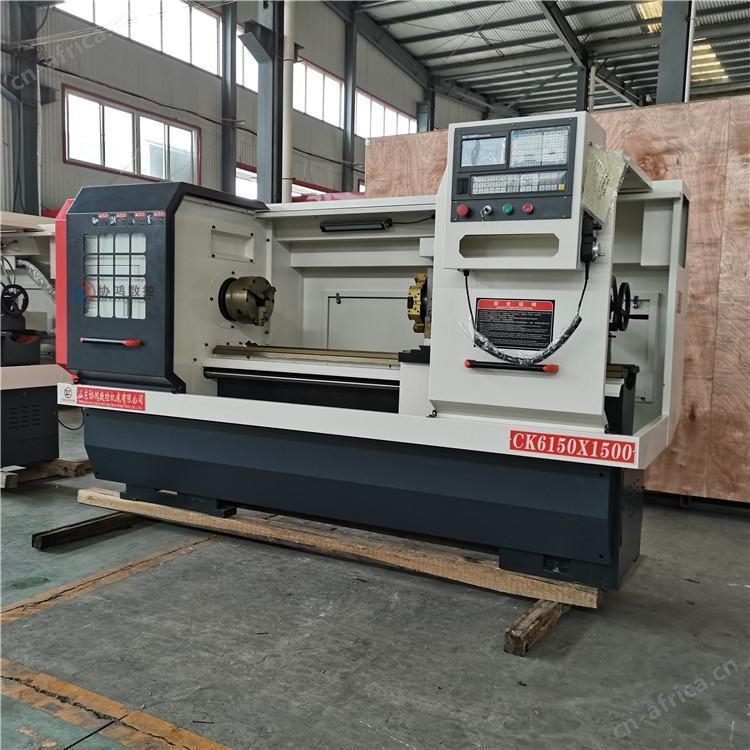

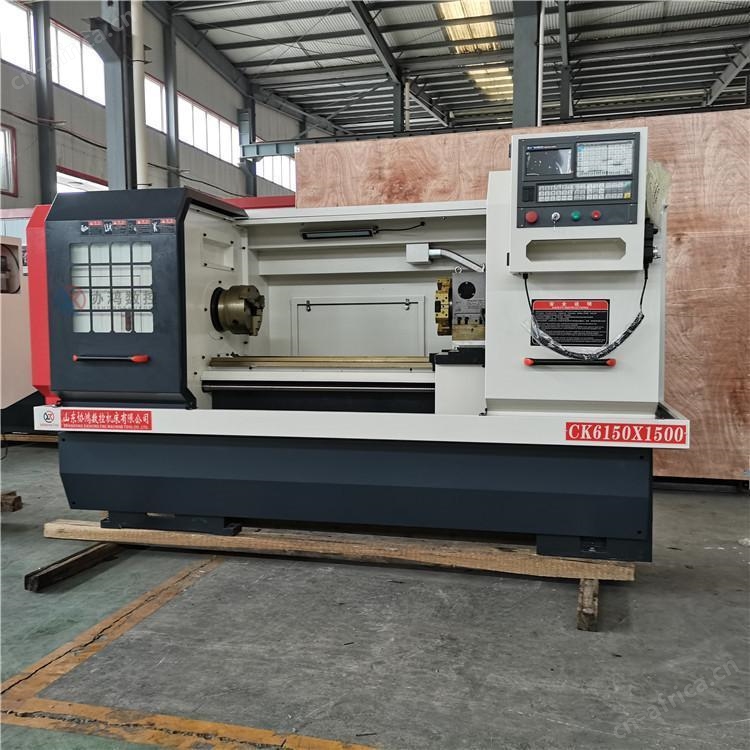

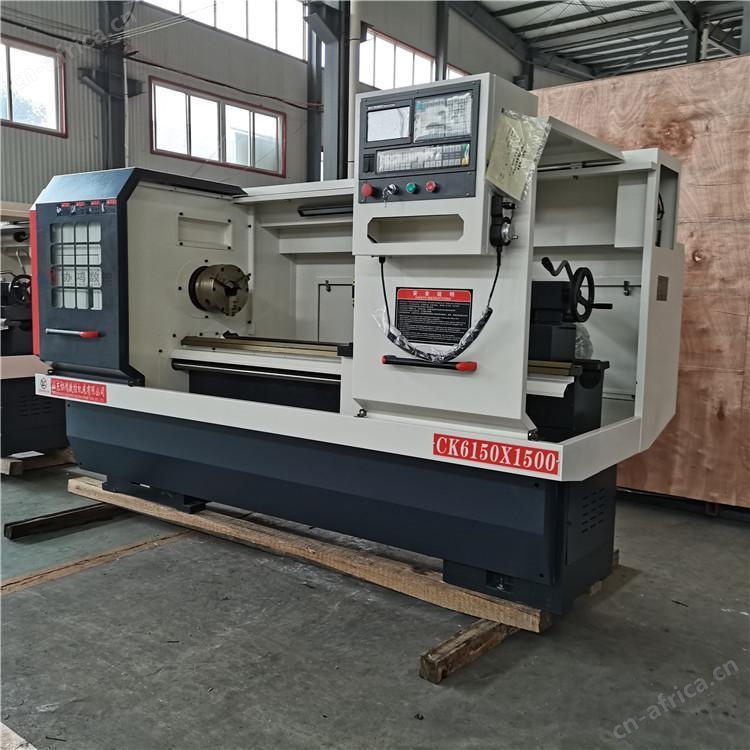

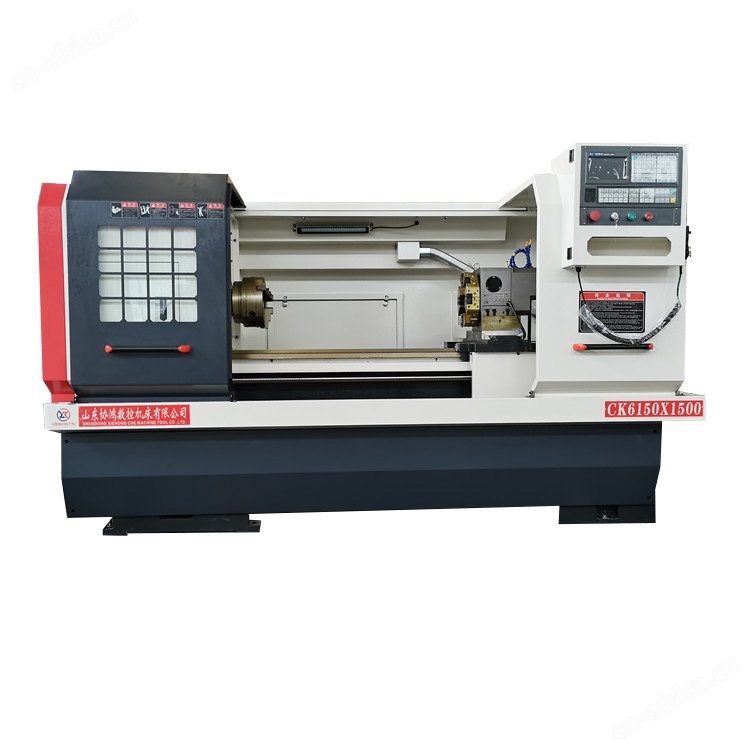

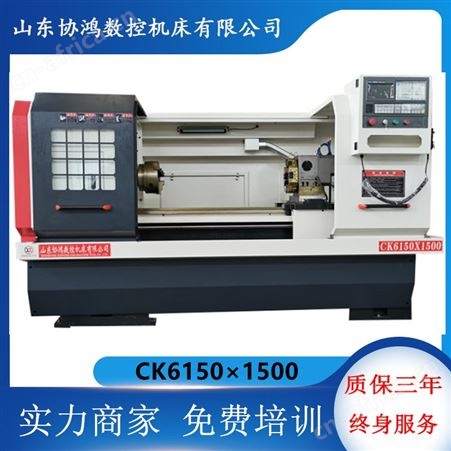

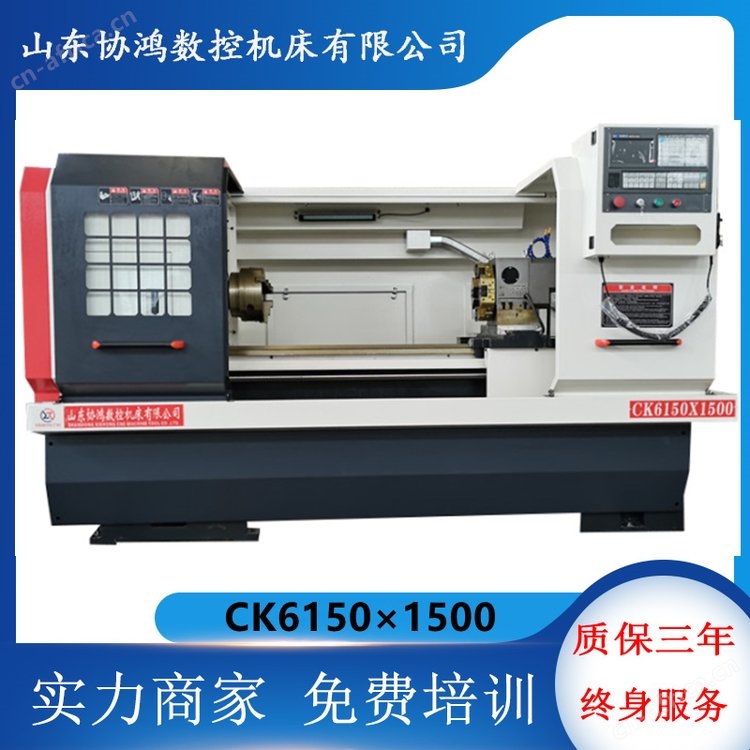

CK6150

床身上工作直径

Max.Swing over bed

500mm

床身工件长度

Max.workpiece Length

750/1000/1500/2000/3000mm

主轴孔锥度

Spindle taper

Morse 6 (φ90 1:20)

卡盘规格

Chruk size

C6(D8)

主轴通孔直径

Thru-hole of spindle

52mm(80mm)

转速范围

Range of spindle speeds

3档自动变速

3 Stpers auto change gear

21-1500r/min（l 162-1500 ll

66 -660 lll 21-210)

尾座行程

Tail stock center travel

150mm

尾做套筒锥度

Tail stock sleeve taper

MT5

重复定位精度

Repeatability error

0.01mm

快移速度

X/Z rapid traverse

3/6m/min

电机功率

Spindle motor

7.5kw

包装尺寸

Packing dimensions

(L×M×H mm)

Overall dimensions for 750mm

2550×1550×1700mm

Overall dimensions for1000mm

2750×1550×1700mm

Overall dimensions for 1500mm

3250×1550×1700mm

Overall dimensions for 2000mm

3700×1550×1700mm

Overall dimensions for 3000mm

4710×1550×1700mm

重量Weinght（kg）

Lenght

净重G.W.毛重N.W.

Weinght for 750mm

2100/2800

Weinght for 1000mm

2200/2900

Weinght for 1500mm

2300/3150

Weinght for 2000mm

2700/3350

Weinght for 3000mm

3500/4100
