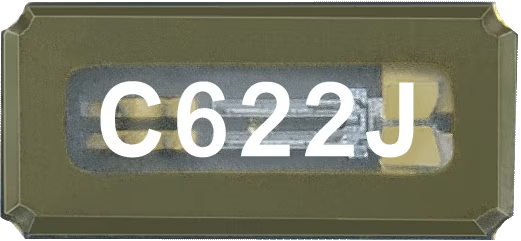

（贴片无源晶振FC-135/SMD3215 32.768KHz放大图片）

关于贴片无源晶振FC-135/SMD3215 32.768KHz 9pF规格，晶诺威科技说明如下：

• 产品类型（PRODUCT TYPE）：石英晶体谐振器、Quartz Crystal

• 标称频率（NOMINAL FREQUENCY）：32.768KHz

• 晶诺威料号（GNW P/N）：T32.768B

• 尺寸（Dimension）：3.2×1.5mm

贴片无源晶振FC-135/SMD3215 32.768KHz 9pF电气参数详情如下：

Handling Instructions 应用指南

1. Tuning fork products oscillate at frequency bands that are close to the washing frequency of ultrasonic cleaning machine, which may cause resonance deteriorating the electrical characteristics in devices, and even damaging the overall structure of devices. Therefore, using ultrasonic cleaning machine to clean tuning fork devices should be avoided. If the use of this method to clean tuning fork devices is required, it’s suggested to check the functionality of devices before and after the cleaning process.

若超声波清洗频率与音叉晶振频率接近，可能引发共振，使晶振的电气特性恶化，甚至破坏晶振的整体结构。因此，应避免使用超声波清洗音叉晶振。如果需要使用这种方法来清洁音叉晶振，建议在清洁之前和之后对晶振功能进行确定。

2. Avoid mounting and processing by Ultrasonic welding this method has a possibility of an excessive vibration spreading inside the crystal products and becoming the cause of characteristic deterioration and not oscillating.

请避免超声波安装和超声波焊接晶振，因为超声波有可能产生过度振动，若其危害扩散到晶体内部，会引发晶振电气特性恶化，造成停振。

3. Manual soldering heat resistance手工焊接耐热性

Pressing a soldering iron of 400°C on the terminal electrode for four seconds (twice).

在烙铁温度400°C条件下，焊接时间控制在4秒钟以内（焊接次数不可超过两次）。

Our products are manufactured in a dust-free environment. To keep them clean and dust free, keep them in a clean environment after they are unpacked.

我司产品为无尘车间制造。打开包装后，请在洁净环境中使用。
