压控温补晶振VC-TCXO 32.768MHz规格说明

标称频率（Nominal Frequency）: 32.768MHz
输入电压(Supply Voltage)： 3.3V
压控范围（Control Voltage Range）: +1.5
工作温度（Operating Temperature Range）:-40℃~+85℃
输出波形（Wave Form）:Clipped Sine Wave(DC-coupled) 削峰正弦波

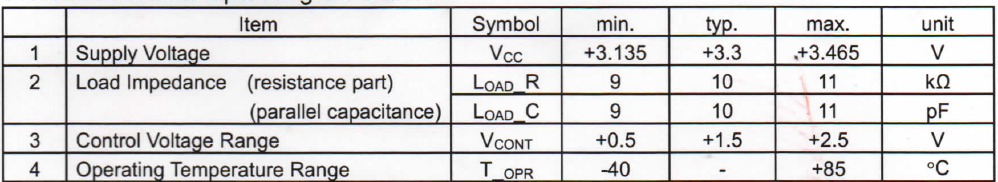

• 压控温补晶振VC-TCXO 32.768MHz建议工作环境（Recommended Operating Conditions)

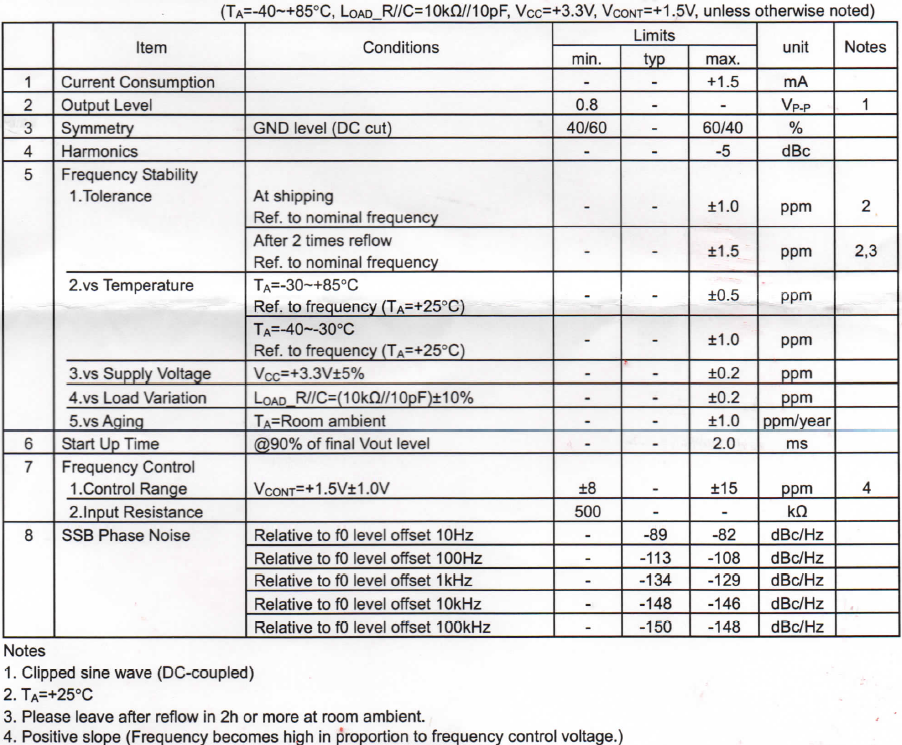

• 压控温补晶振VC-TCXO 32.768MHz电气特性（Electrical Characteristics)

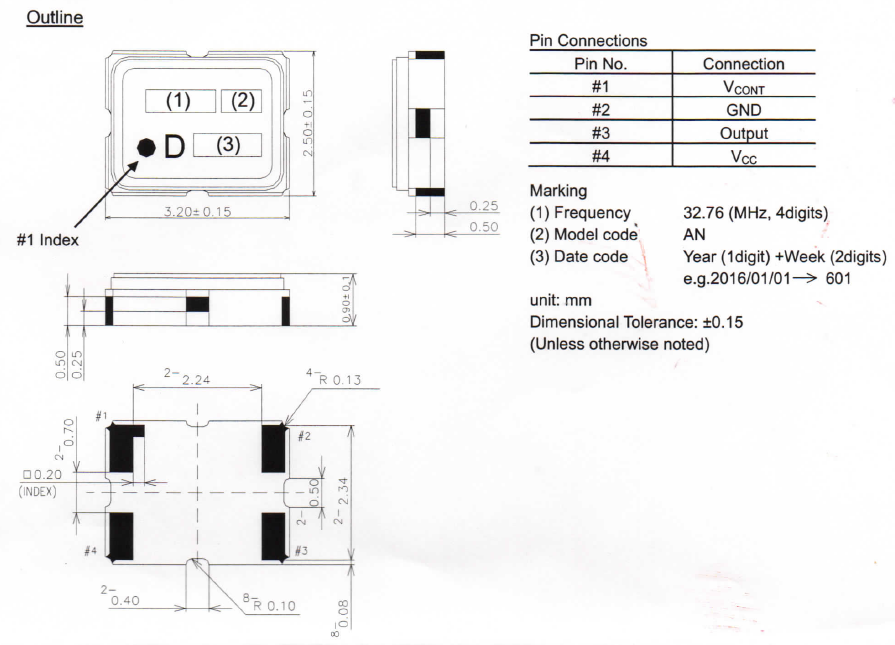

• 压控温补晶振VC-TCXO 32.768MHz焊盘及脚位说明（Outline and Pin Connections)

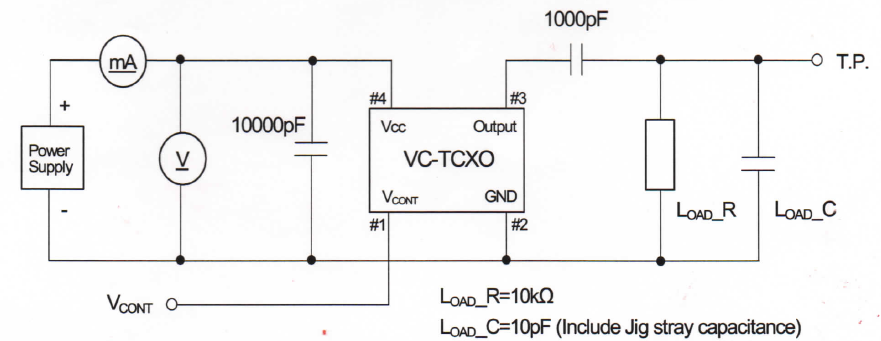

• 压控温补晶振VC-TCXO 32.768MHz测试电路（Measurement Circuit)
