石英晶振规格QUARTZ CRYSTAL SPECIFICATION中英文表述

• 标准频率NOMINAL FREQUENCY

• 外形尺寸REMARKS DIMENSIONS

• 振荡方式OSCILLATION MODE

• 调整频差FREQUENCY TOLERANCE(25℃±3℃)

• 温度频差FREQUENCY STABILITY

• 工作温度范围OPERATING TEMPERATURE RANGE

• 贮存温度范围OPERATING TEMPERATURE RANGE

• 负载电容LOACING CAPACITANCE

• 谐振电阻EQUIVALENT RESISTANCE

• 静电容SHUNT CAPACITANCE

• 激励功率DRIVE LEVEL

• 绝缘电阻INSULATION RESISTANCE

• 年老化率AGING RATE A YEAR

• 检测仪器TEST LMPEDANCE METER

• 印字MARK

SPECIFICATION for SMD7050 晶诺威产无源晶振如下：

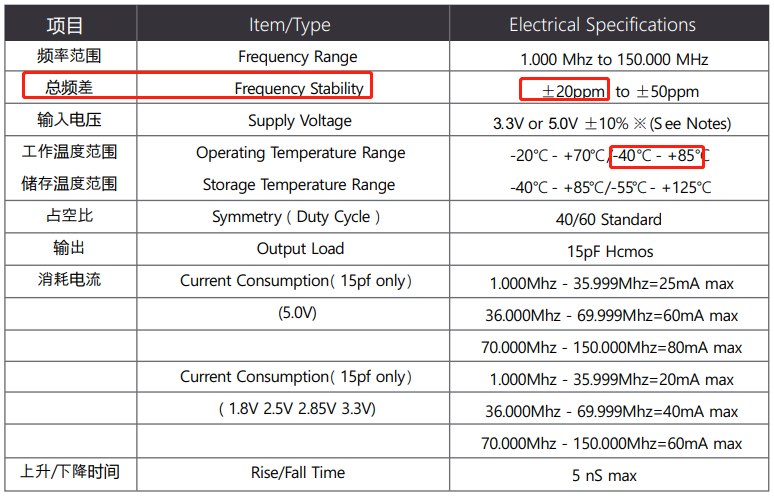

SPECIFICATION for OSC 7050 晶诺威产有源晶振如下：
