SMD3225 TXC差分晶振156.25MHz电气参数介绍如下：

FACTORY（生产工厂）:TXC

OUTPUT WAVEFORM（输出波形）:LVPECL

TXC P/N（TXC料号）: DBA5600011

PRODUCT TYPE（产品类型）: SMD LVPECL CXO 3.2mm*2.5mm

• ELECTRICAL SPECIFICATIONS（差分晶振156.25MHz电气参数）

Note1 Inclusive of frequency tolerance at 25degC , variation over temperature, supply voltage variation, aging and vibration.
Note 2 Output will be enable if OE is Logic 1 or open ; Output will be disable if OE is Logic 0.
Note 3 The standard testing environment except temperature test is 25+5degC,40%~70% relative humidity.

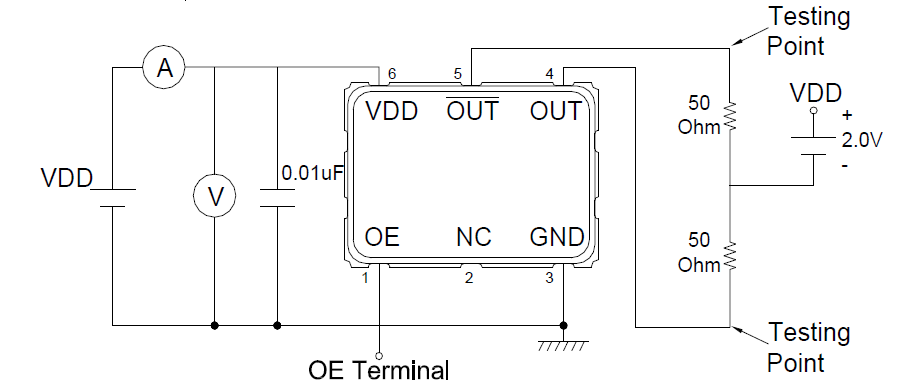

• TESTING CIRCUIT（差分晶振156.25MHz测试电路）

Testing Circuit Note:
1) Above testing circuits cover all the specifications except temperature test & Jitter measurement.
2) All the testing equipments are 50 Ohm terminal.
3) OE terminal is open connection except OE function test.

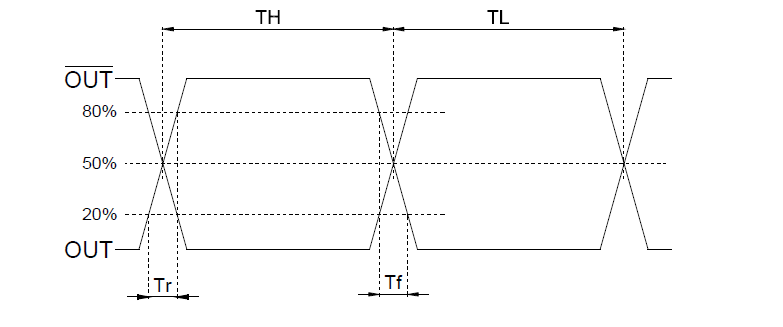

• WAVEFORM CONDITONS（差分晶振156.25MHz波形示图）

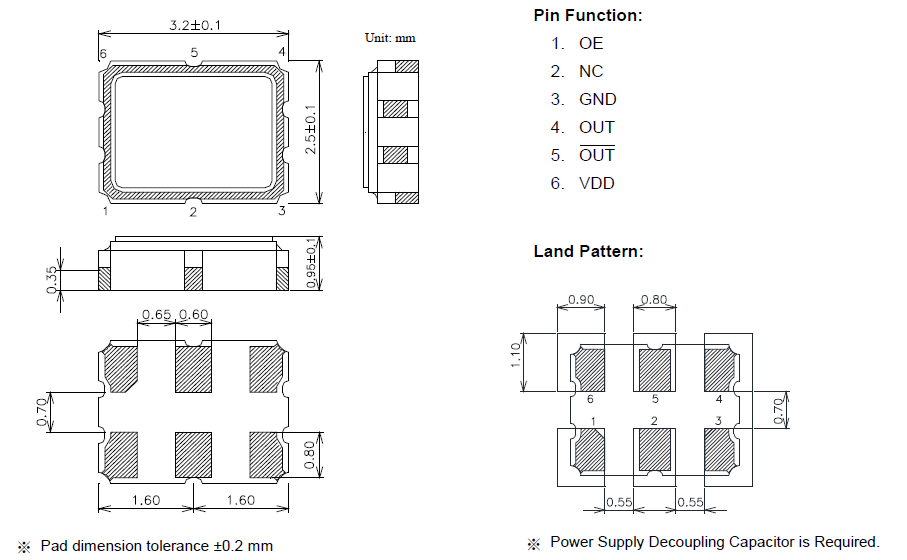

• DIMENSIONS（差分晶振156.25MHz尺寸）

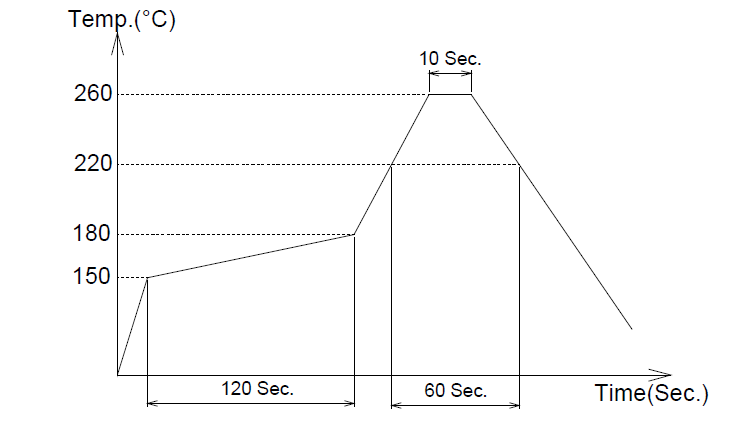

• SUGGESTED REFLOW PROFILE（差分晶振156.25MHz回流焊作业建议）

Note 1: Period while temperature exceeds the solder melting point : 220℃ should be less than 200 sec.
Note 2: Period while temperature stays at the top melting point : 260℃ should be less than 30 sec.
