TCXO2016温补晶振32MHz规格书与使用说明如下：

• Nominal Frequency（标称频率）: 32.000MHz
• Dimensions（尺寸）:2.0mm*1.6mm
• Type（型号）:NT2016SA
• NDK Spec.No.（料号）:END4263A
• Supply Voltage (Vcc)（输入电压）:1.8V~3.3V
• Output Wave Form（输出波形）: Clipped Sine Wave(削峰正弦波）
• Frequency Tolerance（频差范围）: ±1ppm(at +25℃±2℃,before reflow soldering, based on nominal frequency)
• Operating Temp. Range（工作温度范围）:-30℃~+85℃

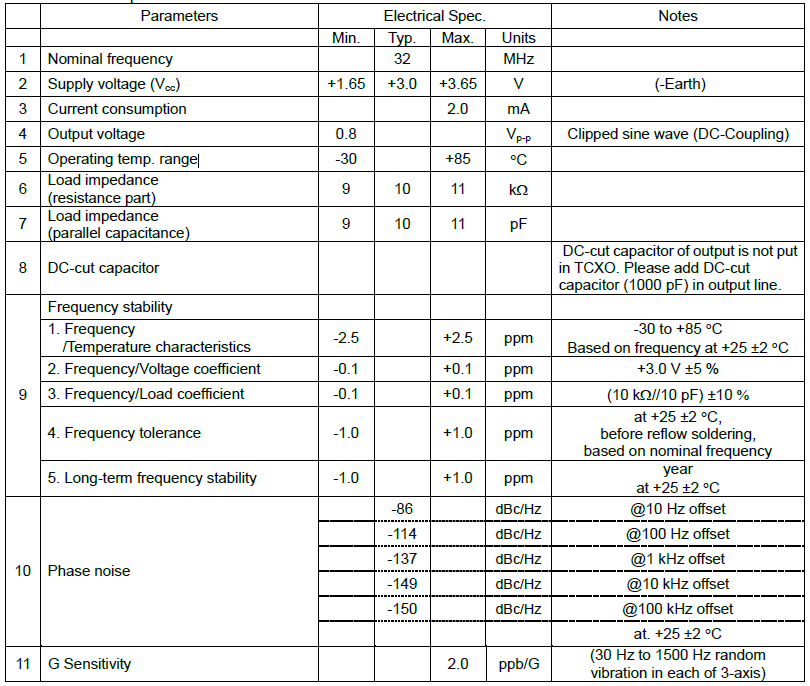

ELECTRICAL SPECIFICATIONS（TCXO2016温补晶振32MHz电气参数）

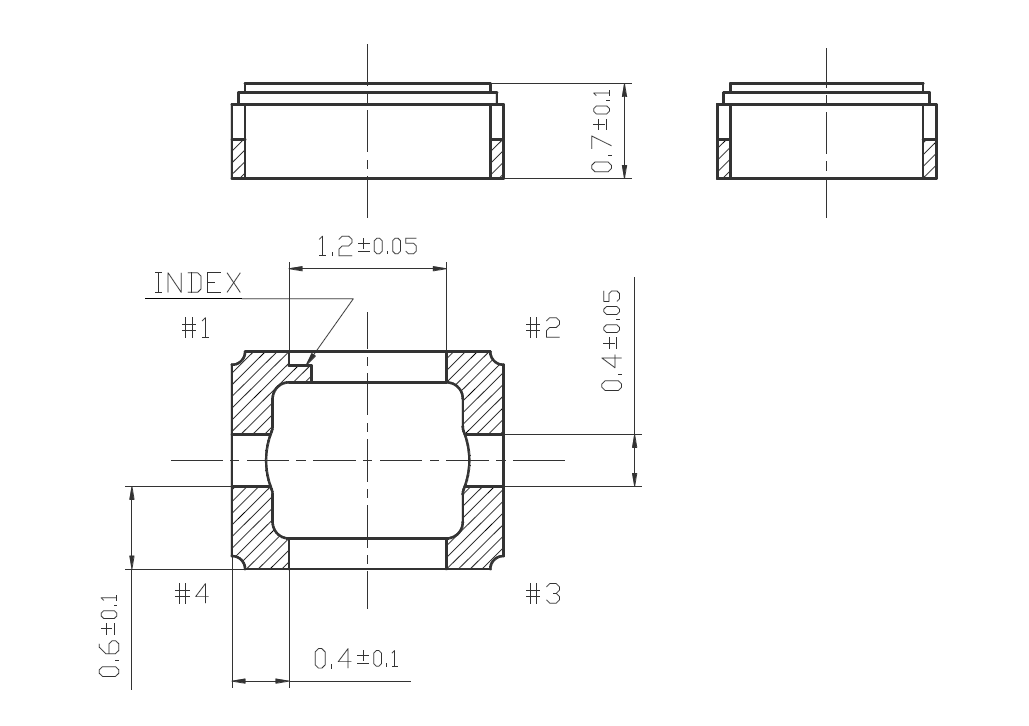

DIMENSIONS（TCXO2016温补晶振32MHz尺寸）

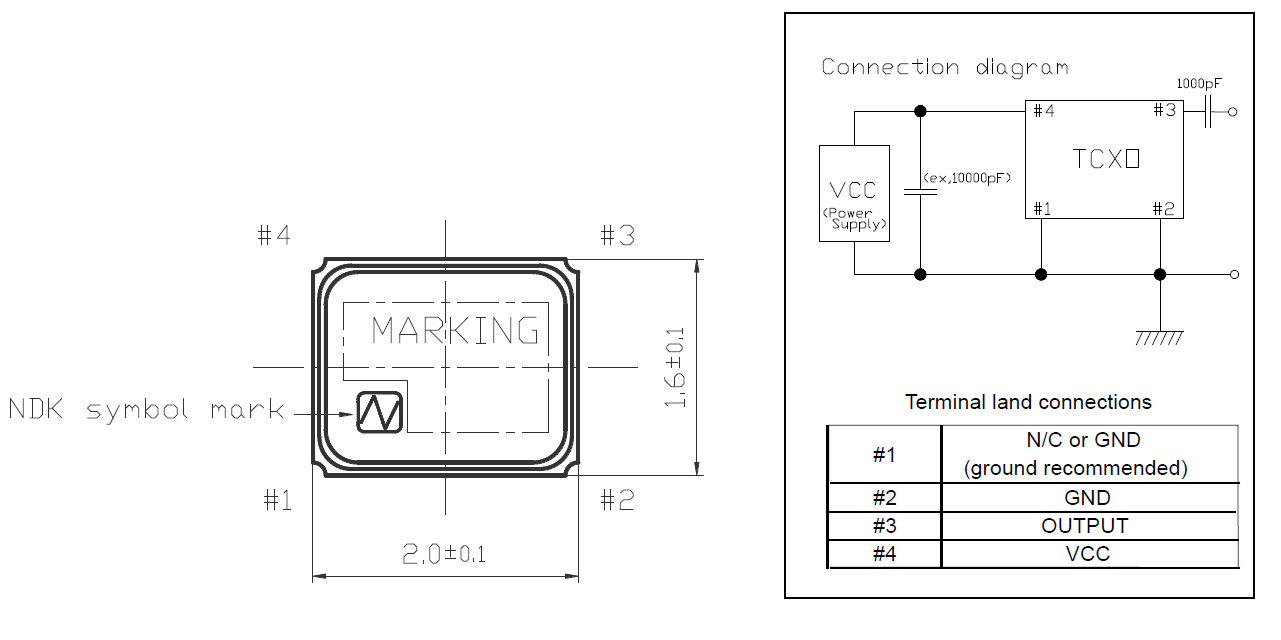

CONNECTION DIAGRAM AND TERMINAL LAND CONNECTIONS(TCXO2016温补晶振32MHz电路连接图及引脚说明)

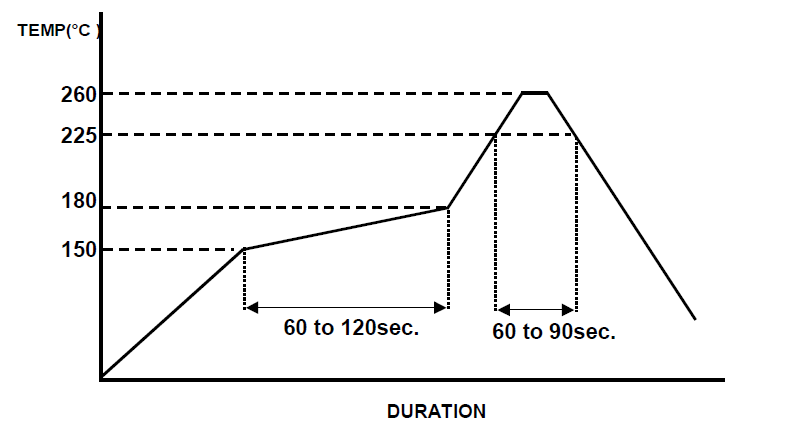

SUGGESTED REFLOW PROFILE（TCXO2016温补晶振32MHz回流焊作业建议）

ATTENTION:

(1) Reflow soldering heat resistance
Peak temperature: +265℃
Heating:+225C or higher,90 sec
(2) Manual soldering heat resistance
Pressing a soldering iron of +350℃±5℃ on the terminal electrode for 3±1 seconds
(3) Hot air heat resistance
Blow hot air of +350℃±5℃ on the product for 3±1seconds
