KDS TCXO2016温补晶振32MHz规格书与使用说明如下：

• Nominal Frequency（标称频率）: 32.000MHz
• Dimensions（尺寸）:2.0mm*1.6mm
• Type（型号）: DSB211SDN
• KDS Spec.No.（料号）: 1XXD32000PBA
• Supply Voltage (Vcc)（输入电压）:1.8V
• Output Wave Form（输出波形）: Clipped Sine Wave（削峰正弦波）
• Frequency Tolerance（频差范围）: ±1.5ppm
• Operating Temp. Range（工作温度范围）:-30℃~+85℃

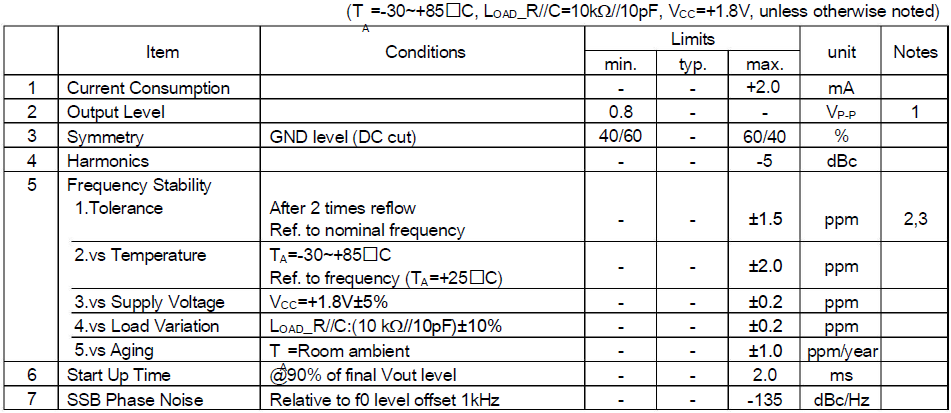

Electrical Specifications(KDS TCXO2016温补晶振32MHz电气参数）

Notes
1. Clipped sine wave (DC-coupled)
2.T(A)=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

Outline, Pin Connections (KDS TCXO2016温补晶振32MHz尺寸与引脚说明)

Measurement Circuit（KDS TCXO2016温补晶振32MHz测试电路）

SUGGESTED REFLOW PROFILE（KDS TCXO2016温补晶振32MHz回流焊作业建议）

(1) Peak temperature: +260℃ 10s max.
(2) Primary Heating:+220℃ 60s
(3) Preheating:+160℃~180℃ 120s
