VC-TCXO2016压控温补晶振19.2MHz (DSA211SDN) 7DF01920A08规格参数及应用说明如下：

• 类别Item: 有源晶体振荡器Oscillator
• 品名Device Name: 压控温补晶振VC-TCXO
• 型号名称Model Name: DSA211SDN
• 规格编码Spec No.: 7DF01920A08
• 标称频率Nominal Frequency: 19.200MHz
• 输出波形Output Waveform：削峰正弦波 Clipped Sine Wave
• 尺寸Size: 2.0mm*1.6mm
• 额定电压Supply Voltage:1.8V
• 频差Frequency Tolerance: ±1.5PPM (过两次回流焊之后After 2 times reflow Ref. to Nominal Frequency)
• 压控范围Control Range: Vcont=+0.9V±0.6V
• 工作温度范围Operating Temperature Range: -40℃~+85℃

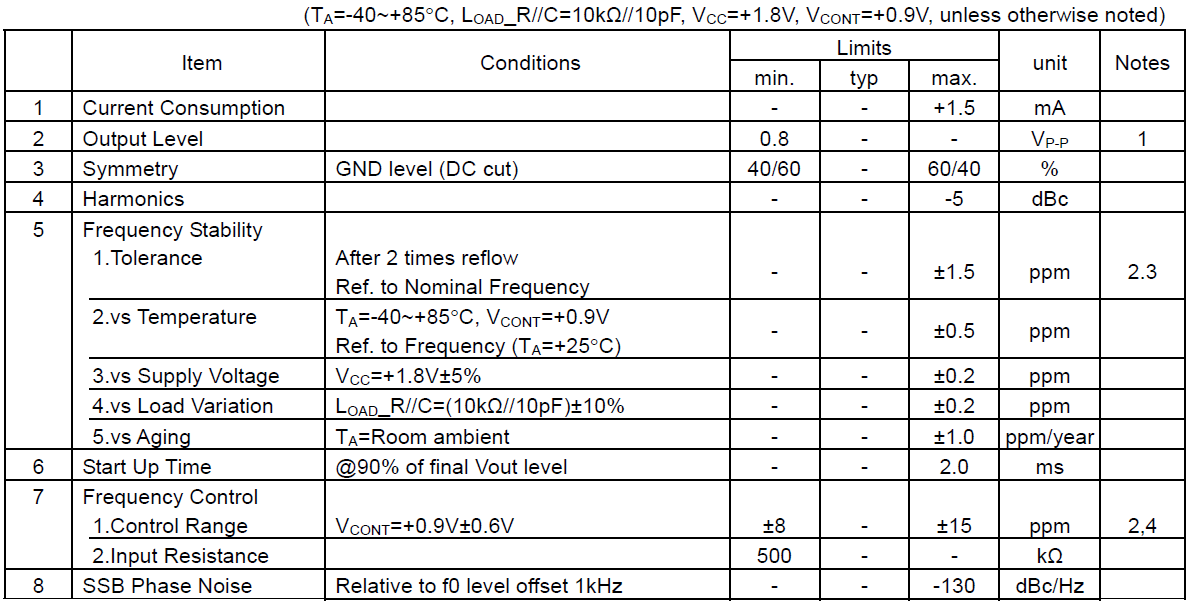

VC-TCXO2016压控温补晶振19.2MHz电气参数Electrical Characteristics

Notes
1.输出波形：削峰正弦波 Clipped sine wave (DC-coupled)
2. TA=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.
4. Positive slope (Frequency becomes high in proportion to frequency control voltage.)

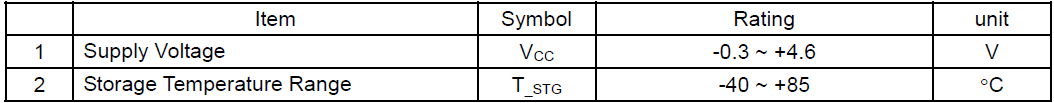

VC-TCXO2016压控温补晶振19.2MHz值Absolutely Maximum Ratings

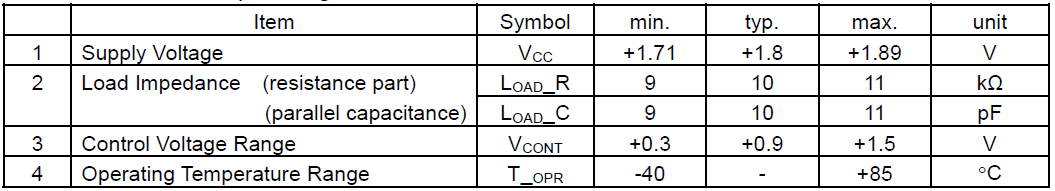

VC-TCXO2016压控温补晶振19.2MHz建议工作条件Recommended Operating Conditions

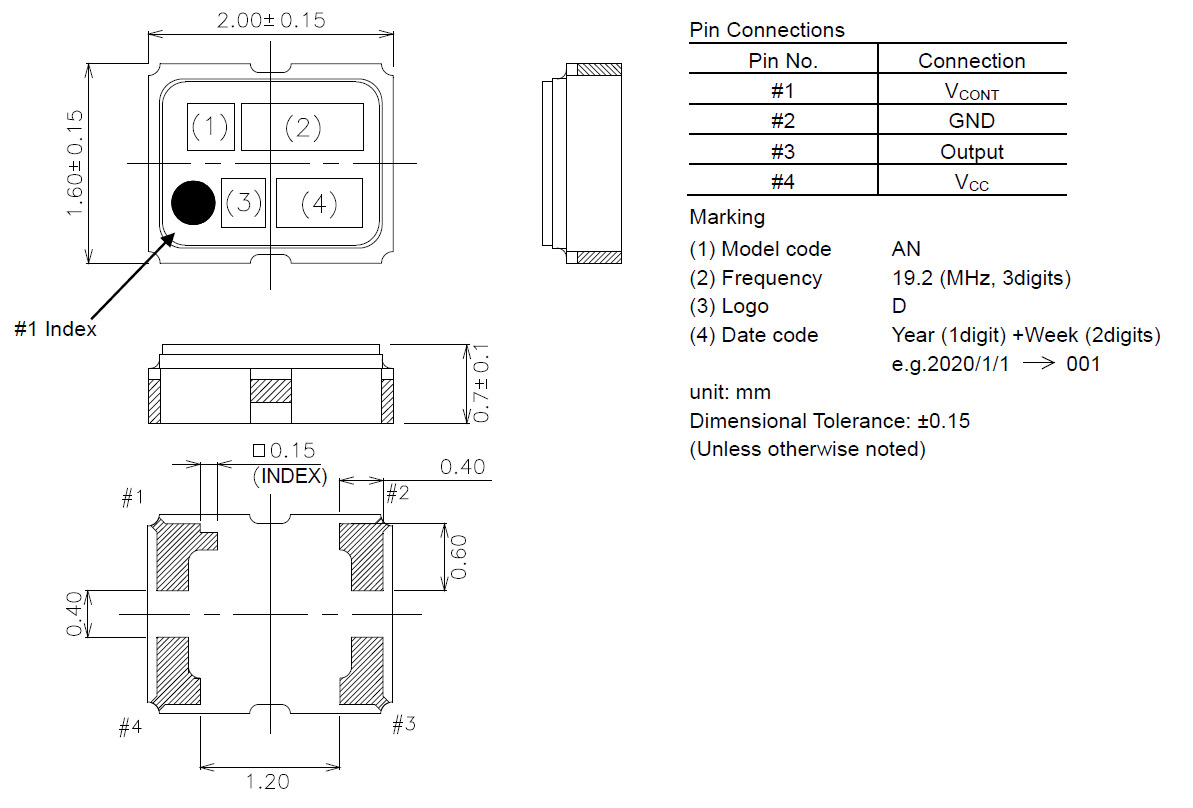

VC-TCXO2016压控温补晶振19.2MHz外形尺寸及焊盘脚位说明Outline, Pin connections

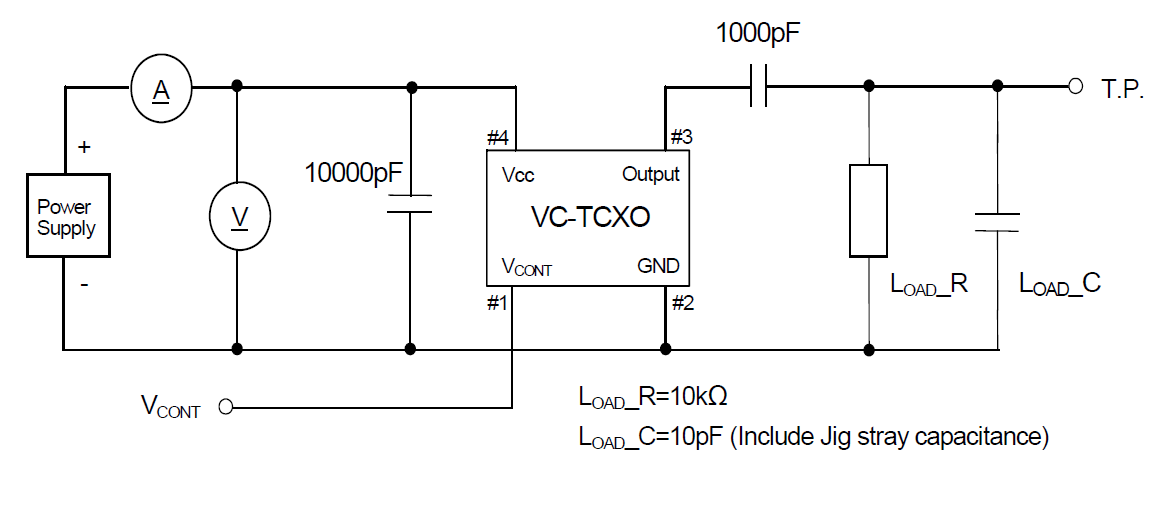

VC-TCXO2016压控温补晶振19.2MHz测试电路Measurement Circuit

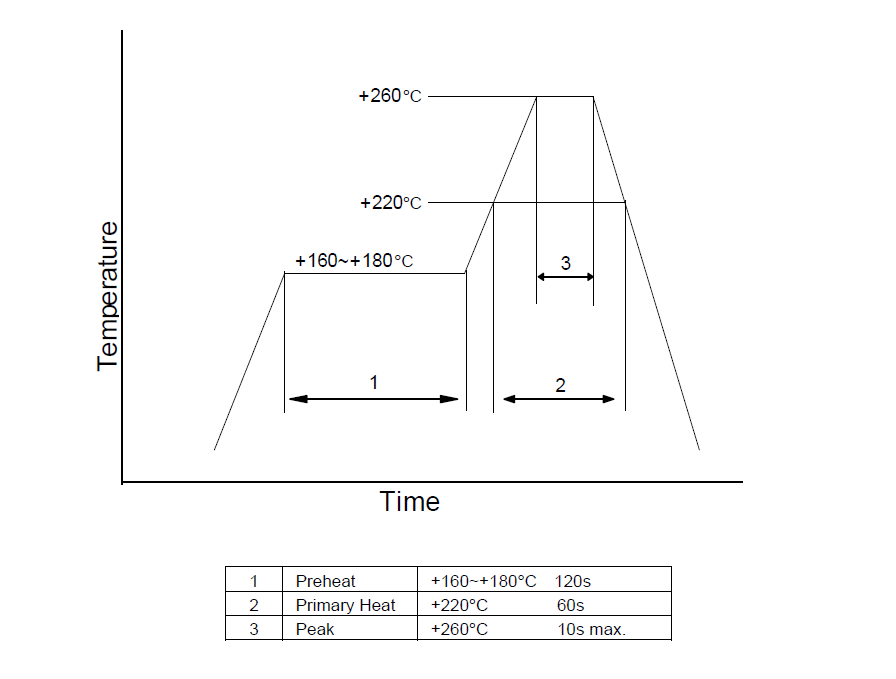

VC-TCXO2016压控温补晶振19.2MHz回流焊作业说明Reflow Profile
