晶诺威科技OSC3225有源晶振24MHz规格参数及使用说明如下：

• Nominal Frequency: 24.000MHz
• Frequency Accuracy: (25℃±3℃) <±20PPm
• Frequency Tolerance vs Temperature: <±30PPM
• Operating Temperature Range: -40℃~+85℃
• Storage Temperature Range:-55℃~+125℃
• Input Voltage(VDD) : 1.8~3.3V
• Input Current(IDD): 10mA max
• Output Waveform: CMOS
• Output Symmetry: 50%±10%
• Rise/fall Time: 5ns max
• Output Voltage:VoL: 10%VDD VoH: 90%VDD
• Output Load: 15pF
• Output State Control: Enable/Disable
• Start-up Time: 3ms max
• Standby Current: 10uA max
• Phase Jtter(ms): 1ps rms max 12KHz to 20MHz max
• Oscillation Mode: Fundamental
• Aging: ±3ppm max/year

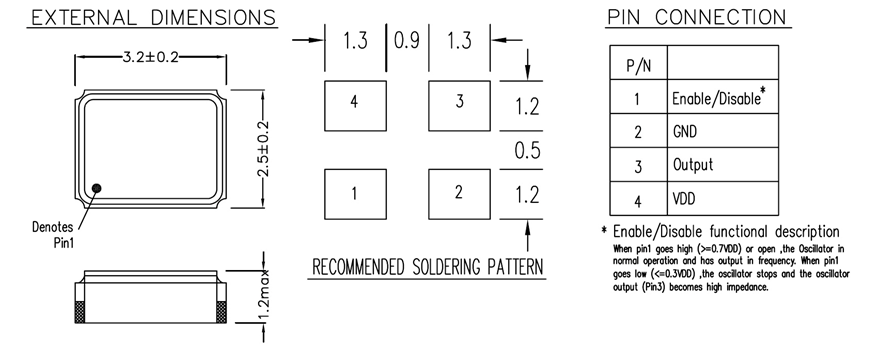

OSC3225有源晶振24MHz外形尺寸图及管脚说明MARKING , DIMENSIONS AND PIN CONNECTIONS

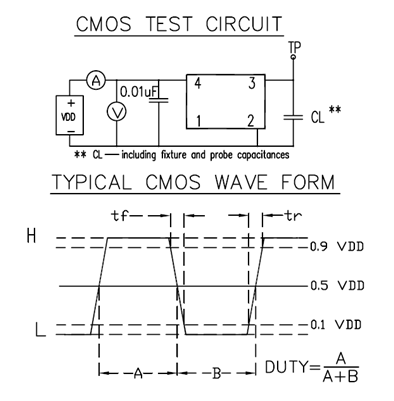

OSC3225有源晶振24MHzCMOS测试电路图CMOS TEST CIRCUIT

OSC3225有源晶振24MHz回流焊作业说明Solder profile
Peak: 245±5℃ Soldering zone: 230℃ or more, 30±10s. Pre-heating zone 1: 150℃～180℃, 90±30s

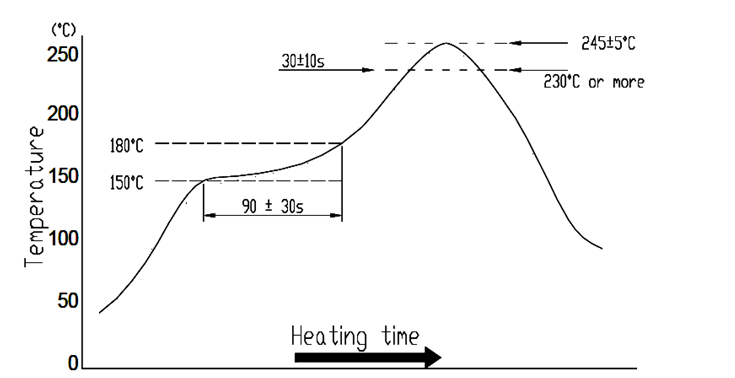

Temperature profile for reflow soldering
Soldering iron method
Bit temperature: 350±10℃ Application time of soldering iron:3+1 s. For other
procedures, refer to IEC 60068-2-20.
