KDS精度0.5PPM车规级TCXO2520温补晶振32MHz主要规格参数如下：

• Device Name: TCXO
• Factory Name: KDS
• Model Name: DSB221SDN
• Spec. No. :7EE03200A0D
• Nominal Frequency: 32.000 MHz
• Size:2.5mm*2.0mm
• Frequency Stability: ±0.5PPM
• Supply Voltage: 1.8V~2.8V
• Current Consumption: 2.0 mA max.

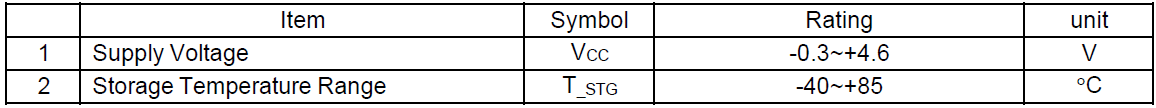

TCXO2520-32MHz Absolute Maximum Rating

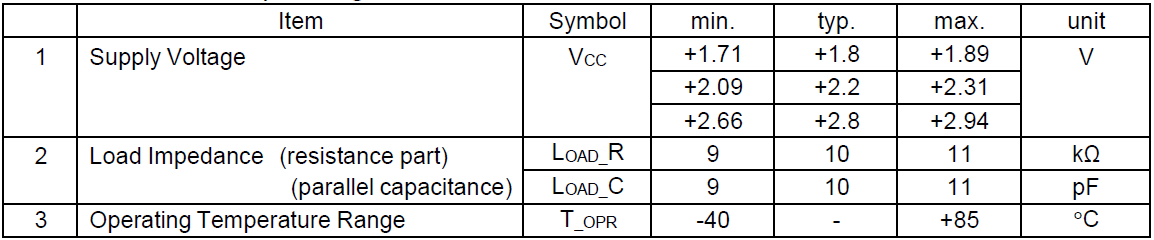

TCXO2520-32MHz Electrical Operating Conditions

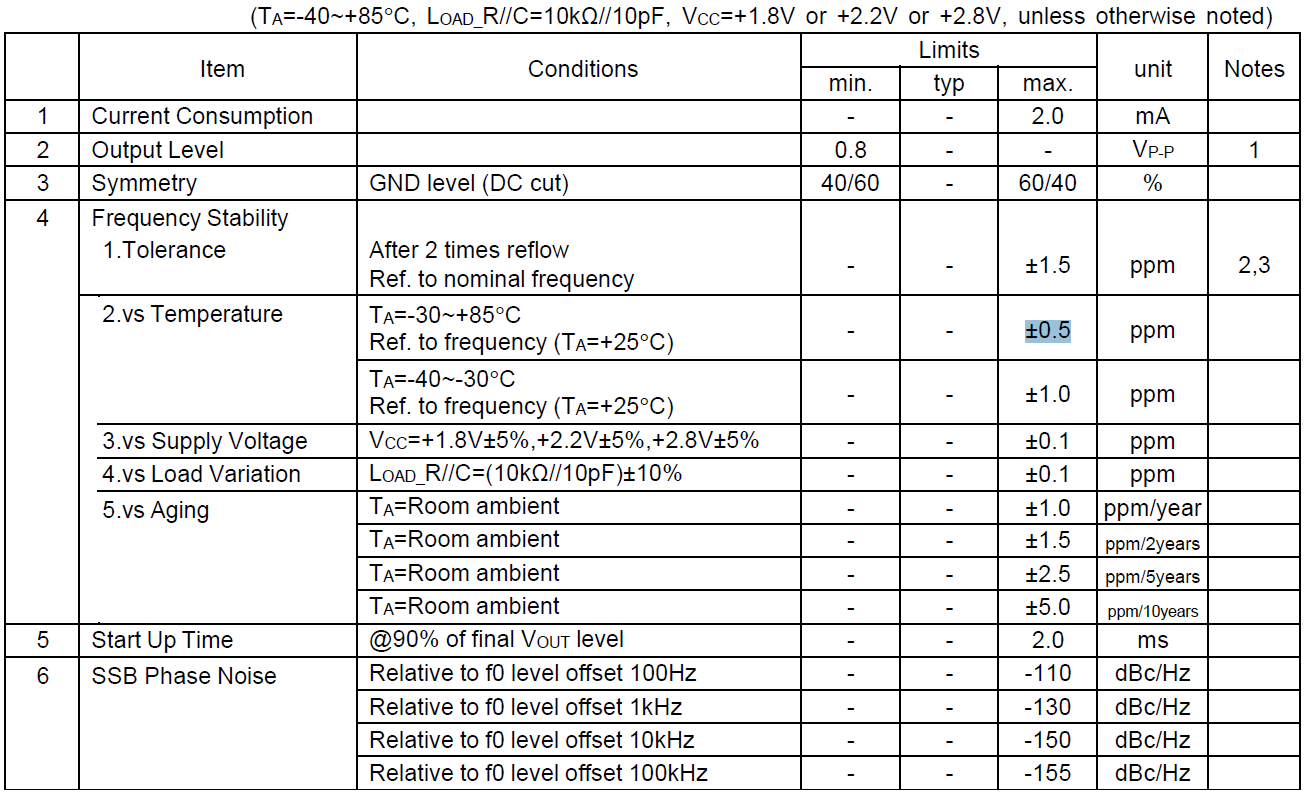

TCXO2520-32MHz Electrical Characteristics

Notes:
1. Clipped sine wave (DC-coupled)
2. Ta=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

KDS精度0.5PPM车规级TCXO2520温补晶振32MHz使用说明如下：

• TCXO2520-32MHz Outline, Pin Connections

• TCXO2520-32MHz Measurement Circuit
