Specifications (characteristics) for OSC3225 33.333MHz

• Nominal Frequency: 33.333MHz
• Size: 3.2mmx2.5mmx1.0mm
• Frequency Accuracy (25℃): ≤20ppm
• Frequency Tolerance vs. Temperature: ≤±30ppm
• Operating Temperature Range: -20℃~+70℃
• Storage Temperature Range: -55℃~+125℃
• Input Voltage( VDD): +3. 3Vdc±10%
• Input Current(IDD): 10mA max.
• Output Waveform: CMOS
• Output Symmetry: 50%±10%
• Rise/fall Time: 5ns max
• Output Voltage: VoL: 10%VDD VoH: 90%VDD
• Output Load: 15pF
• Output State Control: Enable/disable
• Start-up Time: 3ms max.
• Standby current: 10uA max.
• Phase Jitter(rms): 1ps rms max 12KHz to 20MHz max
• Oscillation mode: Fundamental
• Aging: ±3ppm max/year

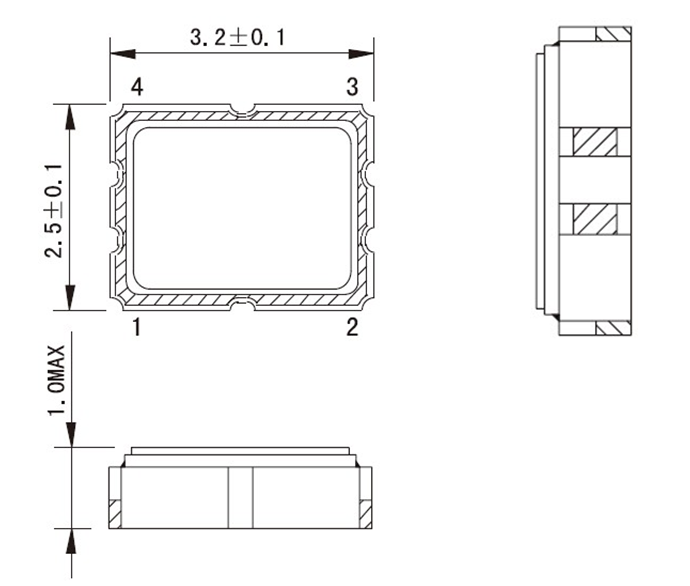

Marking and dimensions for OSC3225 33.333MHz

Suggested solder pad layout for OSC3225 33.333MHz

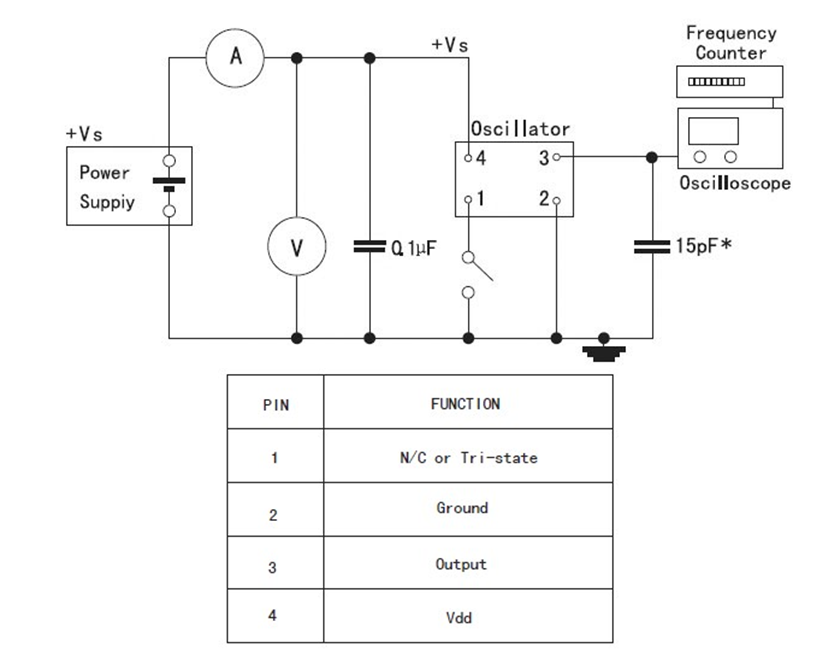

Test circuit for OSC3225 33.333MHz

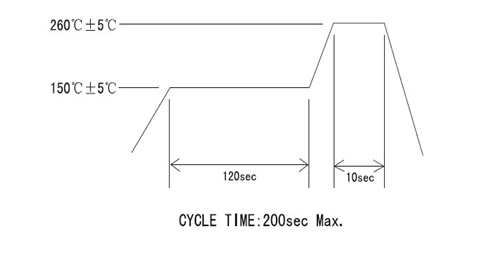

Reflow conditions for OSC3225 33.333MHz
