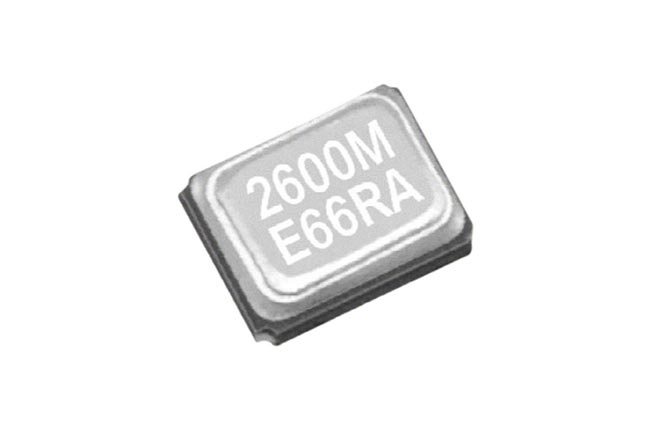

(EPSON爱普生:工业级SMD2016贴片晶振FA-128)

Epson爱普生晶振FA-128应用领域

，蓝牙，无线-局域网 ISM 频段电台广播，MPU时钟等

Specifications and Electrical Characteristics for EPSON 爱普生工业级SMD2016贴片晶振FA-128规格参数

• Type型号:FA-128
• Nominal frequency range标称频率范围: 16.000 MHz to 54.000MHz
• Product No.料号: Q22FA1280XXXX18
• Enteral dimension内部尺寸: 2.0mmx1.6mmx0.50mm
• Overtone order谐波次数: Fundamental基频
• Storage temperature range储存温度范围: -40℃~+125℃
• Operating temperature range工作温度范围: -40℃~+85℃ (+105℃)
• Level of drive激励功率: 100uW Max. for RF(射频) Reference, 200uW Max. for Clock（时钟）
• Frequency tolerance频率公差: ±10ppm for RF , ±30ppm for Clock
• Frequency versus temperature characteristics频率温度特征: ±10ppm for RF, ±30ppm for Clock
• Load capacitance(CL) 负载电容: 6pF 或订制
• Frequency aging频率年老化率: ±1ppm/year Max. for RF, ±5ppm for Clock (+25℃，年)

Motional resistance (ESR串联电阻),在-20℃~+75℃工作温度条件之下：

16.000MHz≤Nominal frequency标称频率＜18.000 MHz : 200ΩMax.

18.000MHz≤Nominal frequency标称频率＜20.000 MHz: 150ΩMax.

20.000MHz≤Nominal frequency标称频率＜24.000 MHz: 100ΩMax.

24.000MHz≤Nominal frequency标称频率＜26.000 MHz: 80ΩMax.

26.000MHz≤Nominal frequency标称频率＜54.000 MHz: 60ΩMax.

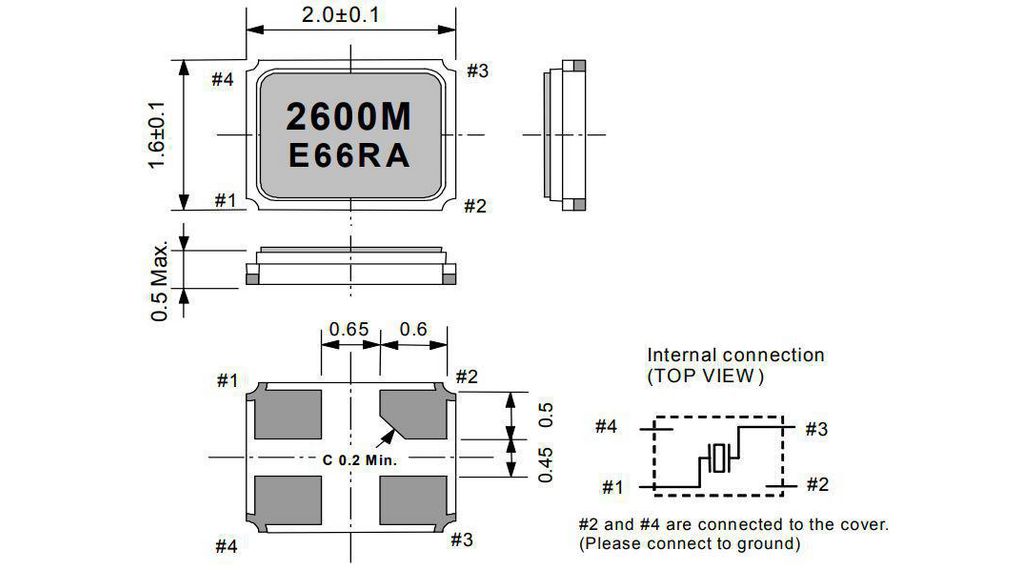

MARKING , DIMENSIONS AND PIN CONNECTIONS外形尺寸及管脚说明（单位：mm）

Suggested solder pad layout推荐焊盘尺寸（单位：mm）
