■晶诺威科技过超声波蓝牙专用无源贴片晶振SMD3225 32MHz主要参数

• 标称频率Nominal Frequency: 32.000MHz
• 盒 型 Holder Type: SMD 3.2*2.5
• 振动模式 Vibration Mode: Fundamental
• 调整频差 Frequency Tolerance（+25℃）: ±10 ppm
• 温度频差 Frequency Drift（-40 to +85℃ ）: ±30 ppm
• 工作温度范围 Operating Temperature Range:-40 to +85℃
• 等效电阻 Equivalent Resistance: 40 ohms.
• 静电容 Shunt Capacitance(C0): 7pF Maximum
• 负载电容 Load Capacitance: 9pF、10pF、12pF或订制
• 激励功率 Drive Level: 10 μw Typical

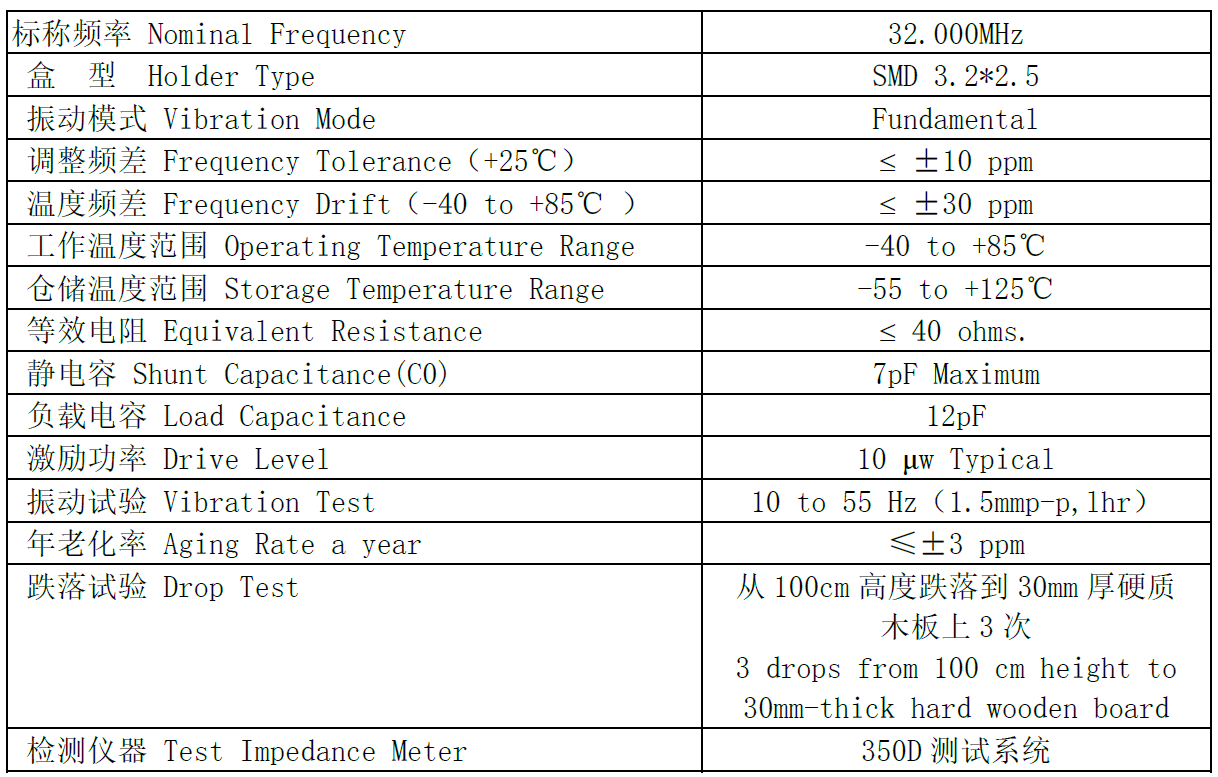

■无源晶振SMD3225 32MHz规格参数 QUARTZ CRYSTAL SPECIFICATION

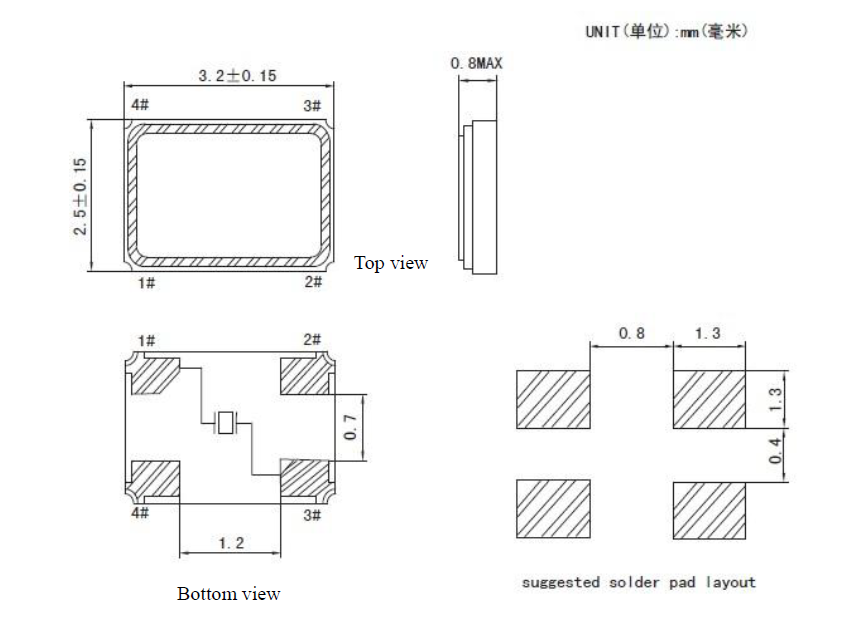

■无源晶振SMD3225 32MHz外形尺寸图 MARKING AND DIMENSIONS

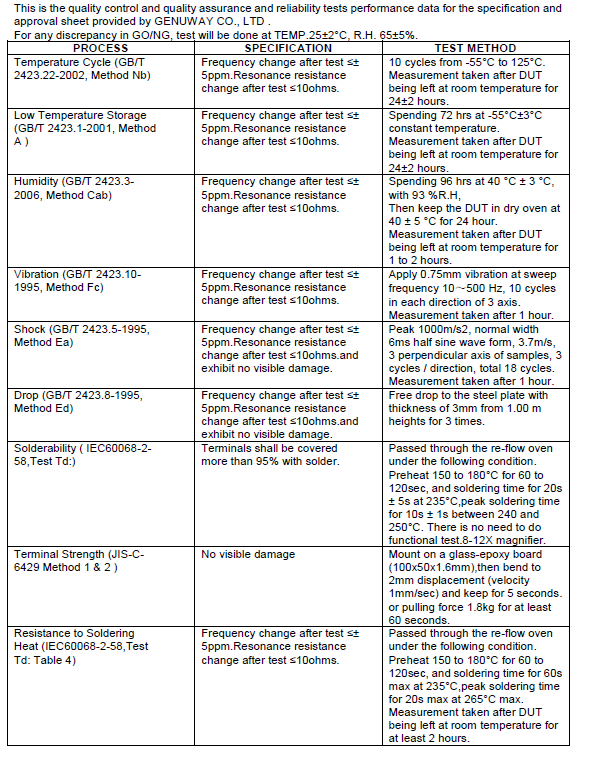

■无源晶振SMD3225 32MH性指标 Reliability Specifications

■无源晶振SMD3225 32MHz回流焊作业建议 Recommended Reflow soldering condition (SMD)
