晶诺威科技带Stａnd by功能OSC7050有源晶振64MHZ规格参数如下：

■ ELECTRICAL SPECIFICATIONS电气参数

Standard atmospheric conditions

Unless otherwise specified, the standard range of atmospheric conditions for making measurement
ａnd tests are as follow:

Ambient temperature : 25±5℃

Relative humidity : 40%~70%

If there is any doubt about the results, measurement shall be made within the following limits:

Ambient temperature : 25±3℃

Relative humidity : 40%~70%

Measure equipment

Electrical characteristics measured by MD 37WX-05M or equivalent.

Crystal cutting type

The crystal is using AT CUT (thickness shear mode).

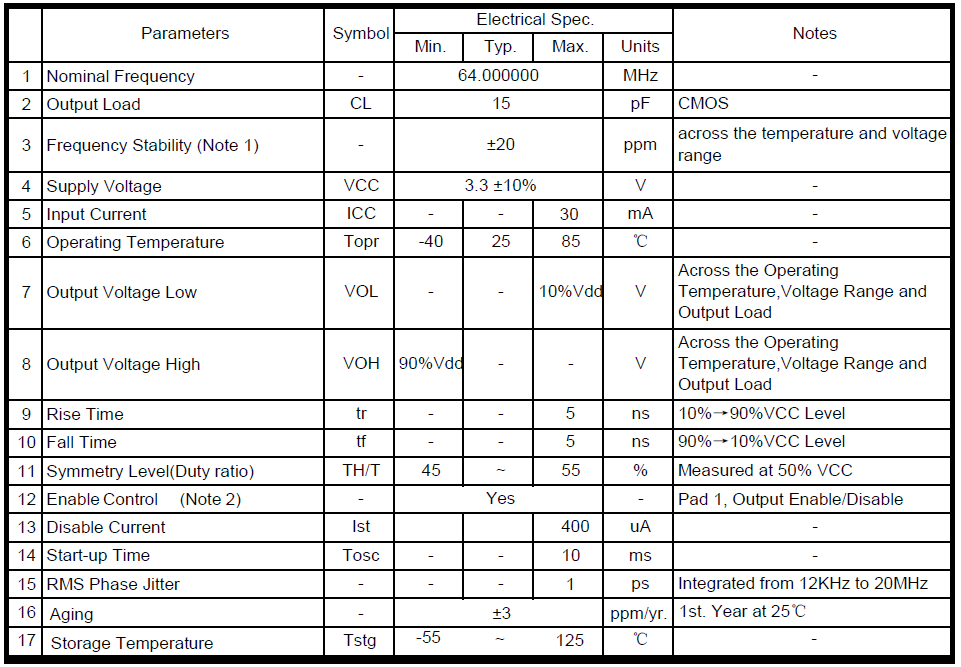

■ ELECTRICAL SPECIFICATIONS电气参数

Note1
Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Ouput Load Change, First Year Aging at 25°C,Shock, and Vibration

Note2

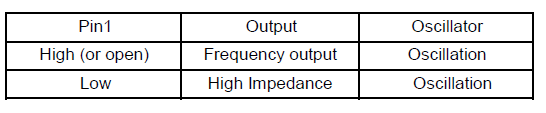

When “Enable Control” goes low，The frequency output becomes high impedance

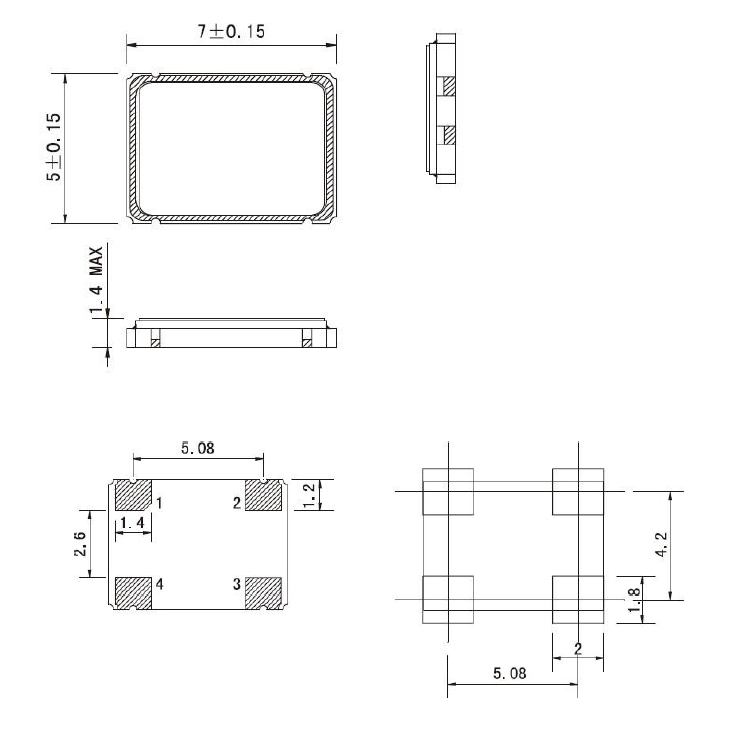

■ DIMENSIONS尺寸

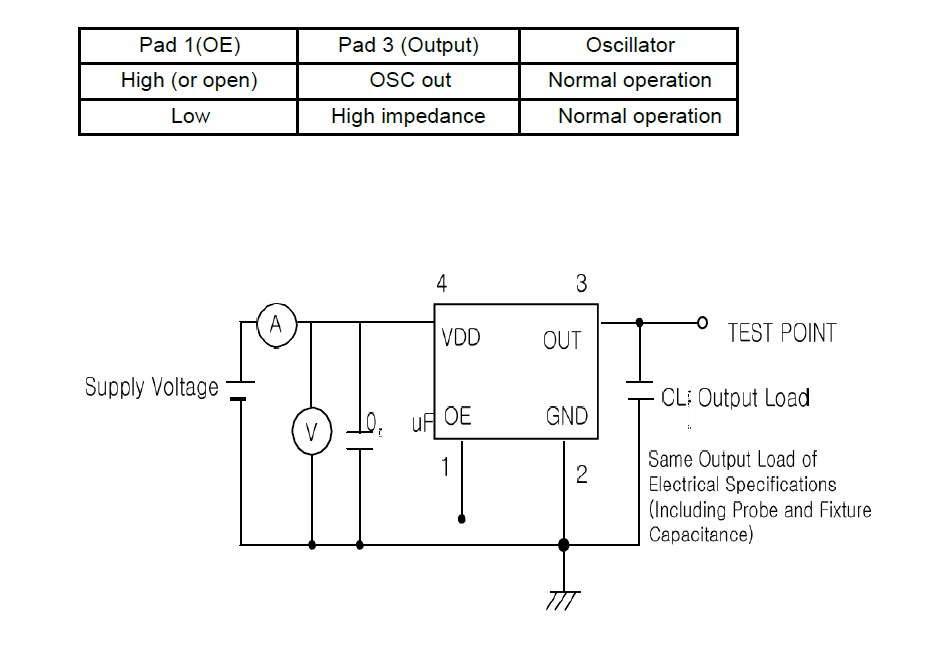

■ TEST DIAGRAM测试电路

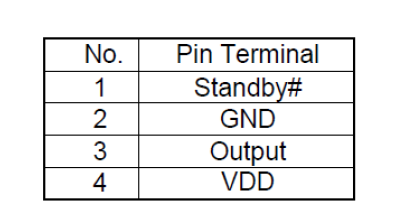

Pad 1 : Tri-State control三态控制

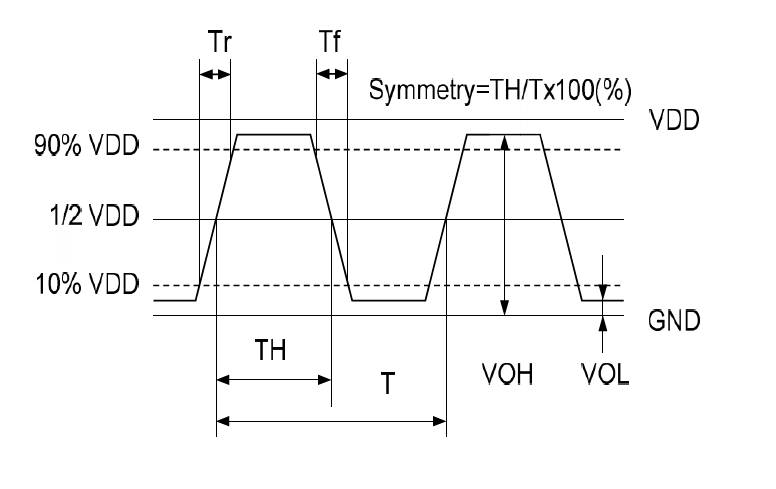

■ WAVEFORM CONDITIONS波形条件
Waveform measurement system should have a min. bandwidth of 5 times the frequency being tested.

■ OUTPUT ENABLE / DISABLE DELAY控制脚/STAND BY待机模式
The following figure shows the oscillator timing during normal operation . Note that when the device is in standby, the oscillator stops. When standby is released, the oscillator starts and stable oscillator output occurs after a short delay.

■ SUGGESTED REFLOW PROFILE回流焊作业建议

■ STRUCTURE ILLUSTRATION内部结构图解
