±0.5ppm高精度温补晶振TCXO3225 24MHz规格参数说明如下：

• Main Electrical Characteristics

1.Device Name: TCXO

2.Model Name: DSB321SDN

3.Nominal Frequency: 24.000 MHz

4.Current Consumption :1.5 mA max.

5.Output Waveform: Clipped sine wave(DC-coupled)

6.Start Up Time: 2.0 ms ( @90% of final Vout level)

7.SSB Phase Noise: -130 dBc/Hz (Relative to fo level offset 1kHz)

• Absolute Maximum Ratings

• Recommended Operating Conditions

• Frequency Stability:

1.Tolerance vs Temperature: ±0.5 ppm (TA=-30~+85℃ Ref.to Frequency(TA=+25°C)
2. Tolerance vs Supplv Voltage: ±0.2 ppm (Vcc=+3.3V±5%)
3. Tolerance vs Load Variation: ±0.2 ppm ( LoAD_R//C=(10kΩ//10pF)±10% )
4. Tolerance vs Aging : ±1.0ppm/year (TA=Room ambient)

Tolerance: ±1.5 ppm (After 2 times reflow Ref.to Nominal Frequency)

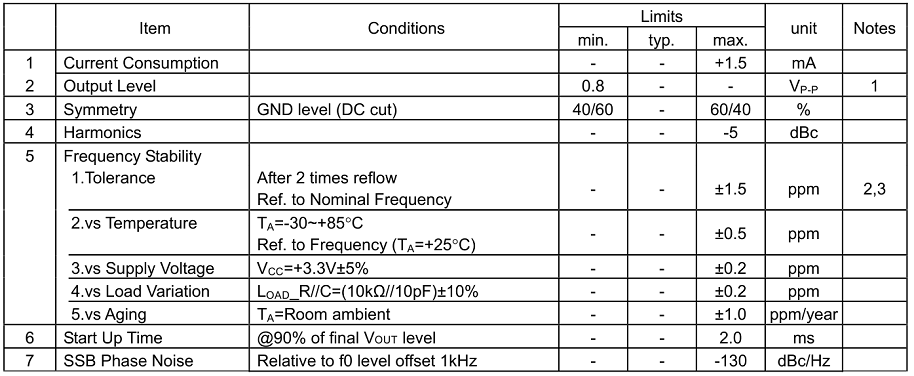

• Electrical Characteristics in Details:

(TA=-30~+85C, LoAD_R//C=10kΩ//10pF,Vcc=+3.3V, unless otherwise noted)

Notes
1.TA=+25°C
2.Please leave after reflow in 2h or more at room ambient.
3.KDS PART NO. : 1XTW24000MDA
