TCXO2520温补晶振32MHz 1XXB32000MMA规格说明如下：

• Device Name名称: TCXO2520
• Nominal Frequency标称频率: 32.000 MHz
• Size尺寸: 2.5mm*2.0mm
• Model Name型号: DSB221SDN
• Spec. No.规格号 : 1XXB32000MMA
• Frequency Stability频率稳定度: ±1PPM
• Supply Voltage额定输入电压范围: 1.8V~3.3V
• Current Consumption功耗: 2.0 mA max.
• Start Up Time启动时间: 2ms
• Output Waveform输出波形 : Clipped sine wave削峰正弦波
• SSB Phase Noise相噪: -130 dBc/Hz

Absolute Maximum Rating 值

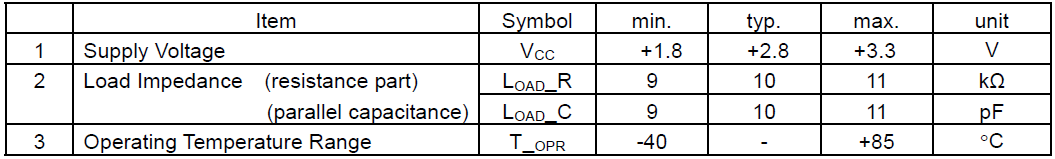

Recommended Operating Conditions建议工作条件

Electrical Operating Conditions电气工作条件

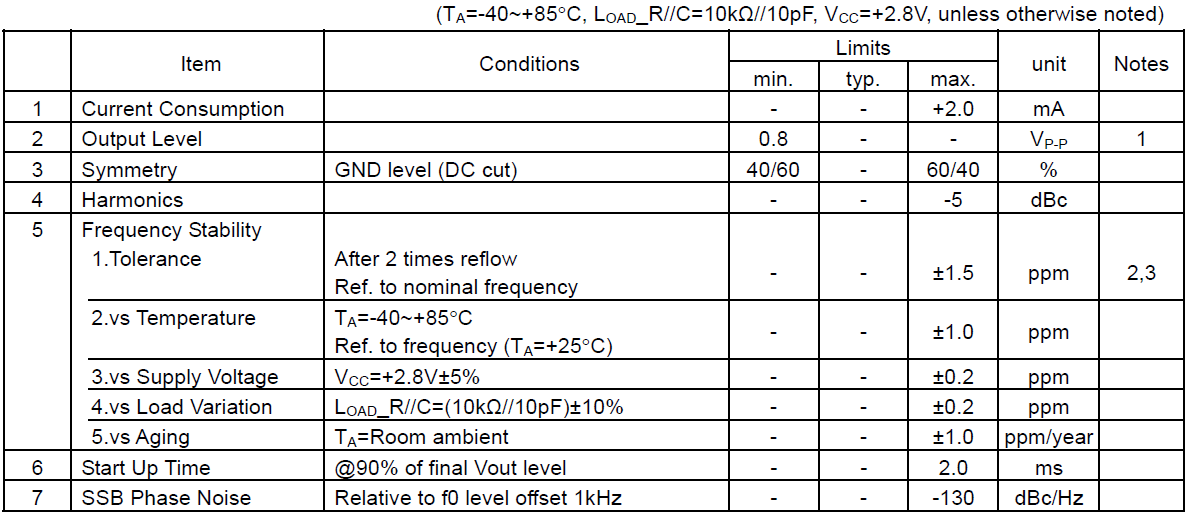

Electrical Characteristics 电气参数特性

Notes:
1. Clipped sine wave (DC-coupled)
2. Ta=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

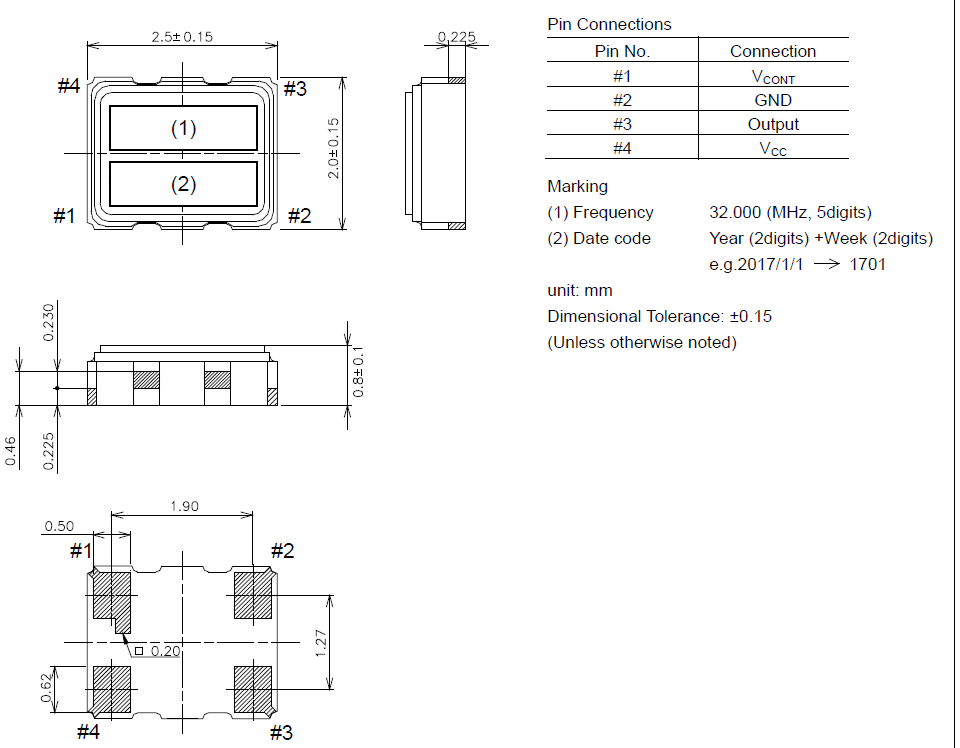

Outline, Pin Connections外形尺寸及脚位连接说明

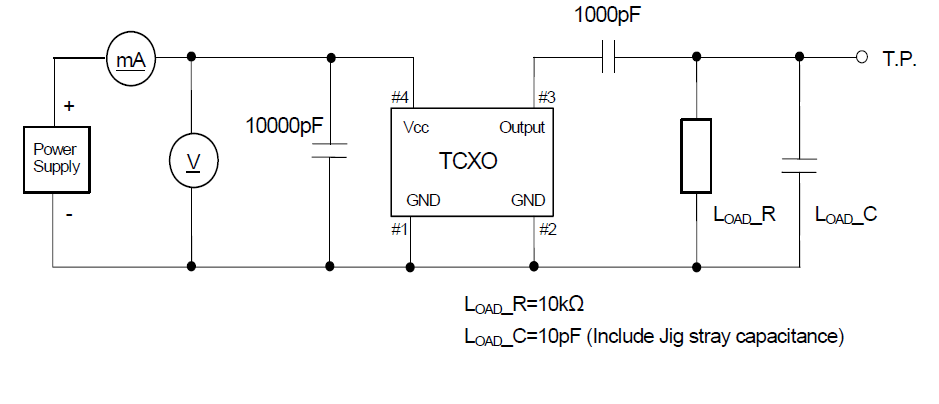

Measurement Circuit 测试电路

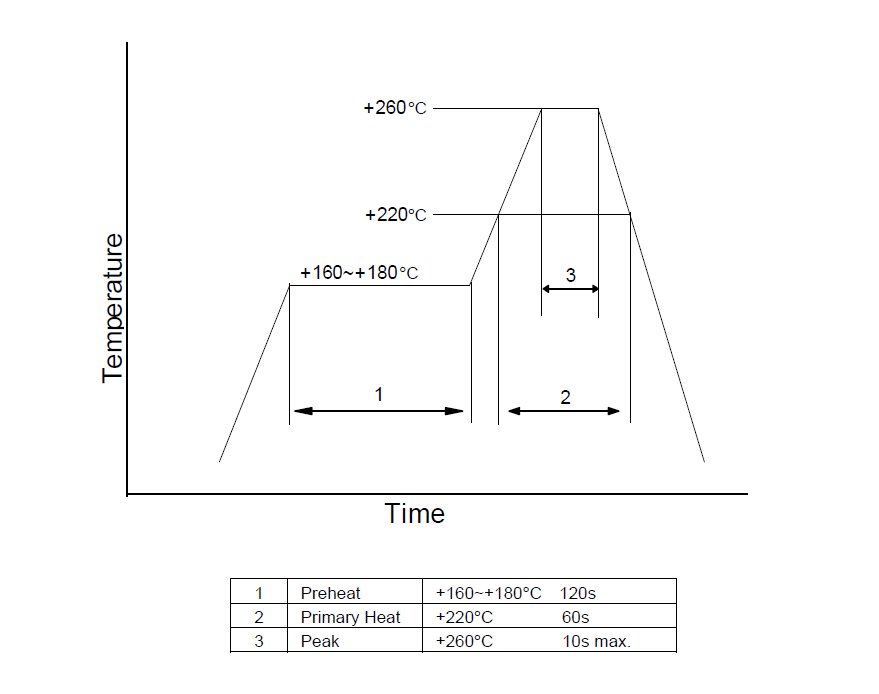

Reflow Profile 回流焊作业说明
