DSB221SDN/TCXO2520温补晶振24MHz 1XXB24000MEA规格及使用说明说明如下：

• Device Name名称: TCXO2520
• Nominal Frequency标称频率: 24.000 MHz
• Size尺寸: 2.5mm*2.0mm
• Model Name型号: DSB221SDN
• Spec. No.规格号 : 1XXB24000MEA
• Frequency Stability频率稳定度: ±0.5PPM
• Supply Voltage额定输入电压: 3.3V
• Current Consumption功耗: 1.5 mA max.
• Output Wave输出波形：Clipped sine wave削峰正弦波
• Start Up Time启动时间: 2ms
• SSB Phase Noise相噪: -130 dBc/Hz

TCXO2520温补晶振24MHz 1XXB24000MEA Absolute Maximum Rating 值

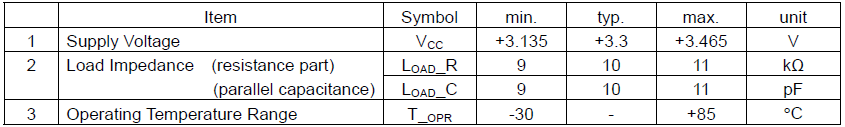

TCXO2520温补晶振24MHz 1XXB24000MEA Recommended Operating Conditions建议工作条件

TCXO2520温补晶振24MHz 1XXB24000MEA Electrical Characteristics 电气参数特性

Notes:
1. Clipped sine wave (DC-coupled)
2. Ta=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

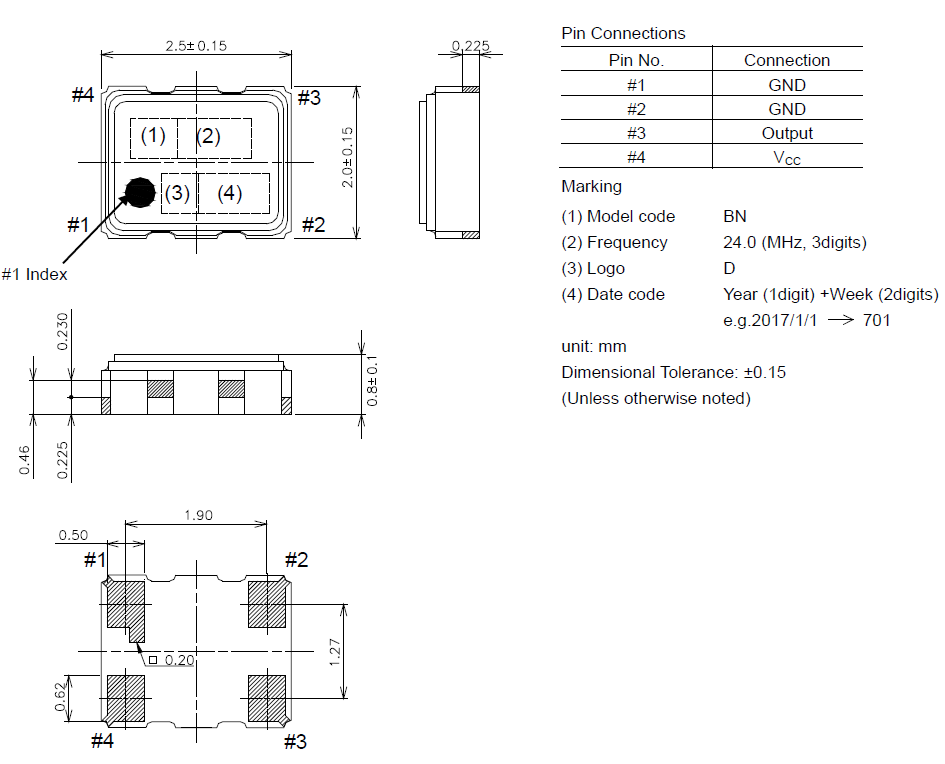

TCXO2520温补晶振24MHz 1XXB24000MEA Outline, Pin Connections外形尺寸及脚位连接说明

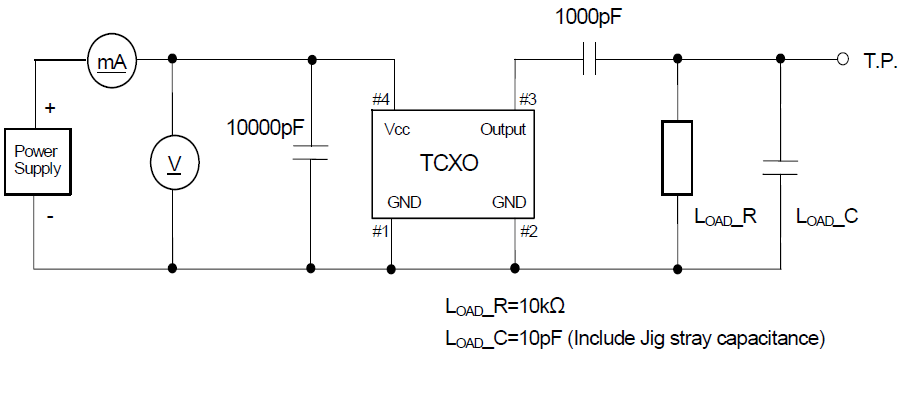

TCXO2520温补晶振24MHz 1XXB24000MEA Measurement Circuit 测试电路

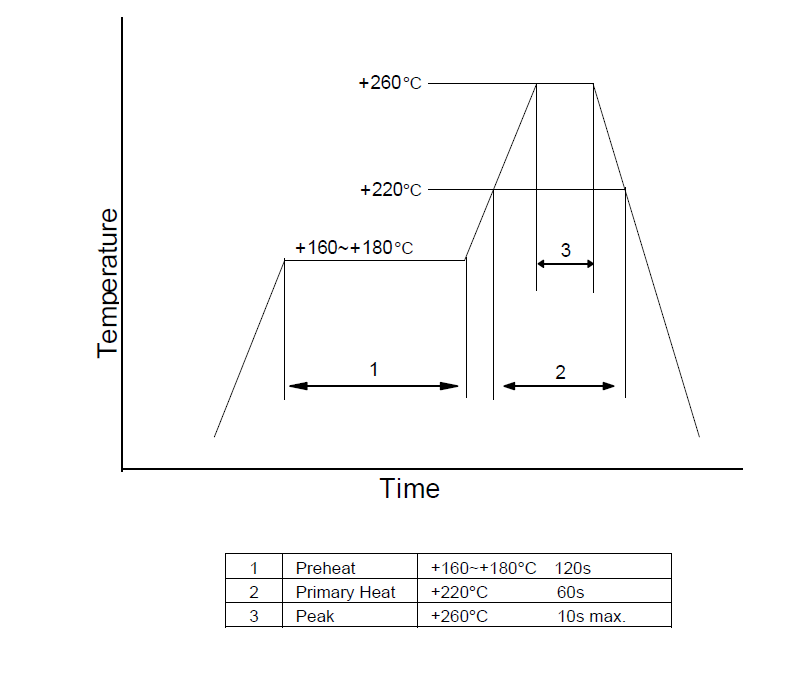

TCXO2520温补晶振24MHz 1XXB24000MEA Reflow Profile 回流焊作业说明
