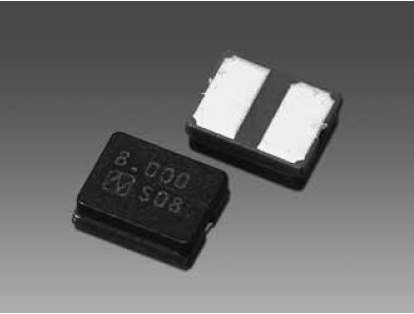

车规级晶振NX3225GD-8.000MHz-STD-CRA-3规格及使用说明如下：

• Brand品牌: NDK
• Type类别:车规级晶振
• Nominal frequency (Fnom)标称频率: 8.000MHz
• Size尺寸:3.2mm*2.5mm
• Pin No. : 2 pins 两脚
• Overtone order 振荡模式: Fundamental基频
• Frequency tolerance调整频差 : ±50PPM max. (at +25°C)
• Frequency versus temperature characteristics温度频差: ±150PPM max. (at -40~+150°C) The reference temperature shall be +25°C
• Equivalent resistance等效阻抗 : 500Ω max
• Frequency aging 年老化率: ±10PPM max./ year (at +25°C)
• Maximum drive Level 激励功率: 200μW max.
• Insulation resistance 绝缘阻抗: Terminal to terminal insulation resistance also terminal to cover insulation resistance must be 500MΩ (min) when DC100V ±15V is applied.
• Load capacitance (CL) 负载电容: 8pF
• Excitation level : 10Μw

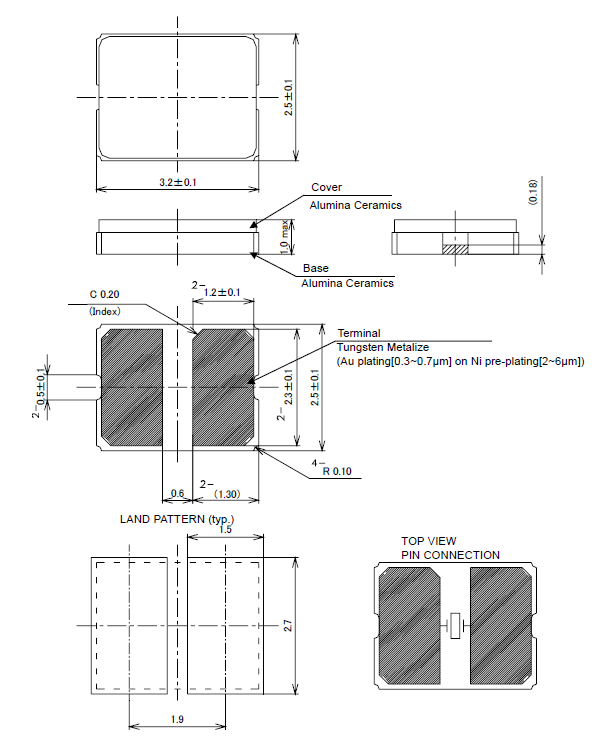

NX3225GD-8.000MHz-STD-CRA-3 Outline and pin connection外型尺寸及引脚说明

NX3225GD-8.000MHz-STD-CRA-3 Recommendation reflow condition回流焊作业建议
