精度0.5PPM KDS压控温补晶振VC-TCXO 26MHZ主要规格参数

• Device Name晶振名称：VC-TCXO
• TYPE 晶振类型: DSA211SDN
• NOMINAL FREQUENCY标称频率 : 26.000MHz
• Supply Voltage输入电压：+3.3V
• Current Consumption功耗：+1.5mA max.
• Frequency Stability温度频差(TA=-40~+85℃Ref. to frequency (TA=+25℃)：±0.5PPM
• Start Up Time启动时间(@90% of final Vout level)：2.0ms
• Output Wave form输出波型 ：Clipped sine wave (DC-coupled)削峰正弦波
• SSB Phase Noise相噪(Relative to f0 level offset 1kHz)：-135dBc/Hz

Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXO)

TCXO is the Crystal Oscillator with good temperature characteristics of Crystal unit and opposite temperature characteristics circuit (temperature compensation circuit) across a wide temperature range.

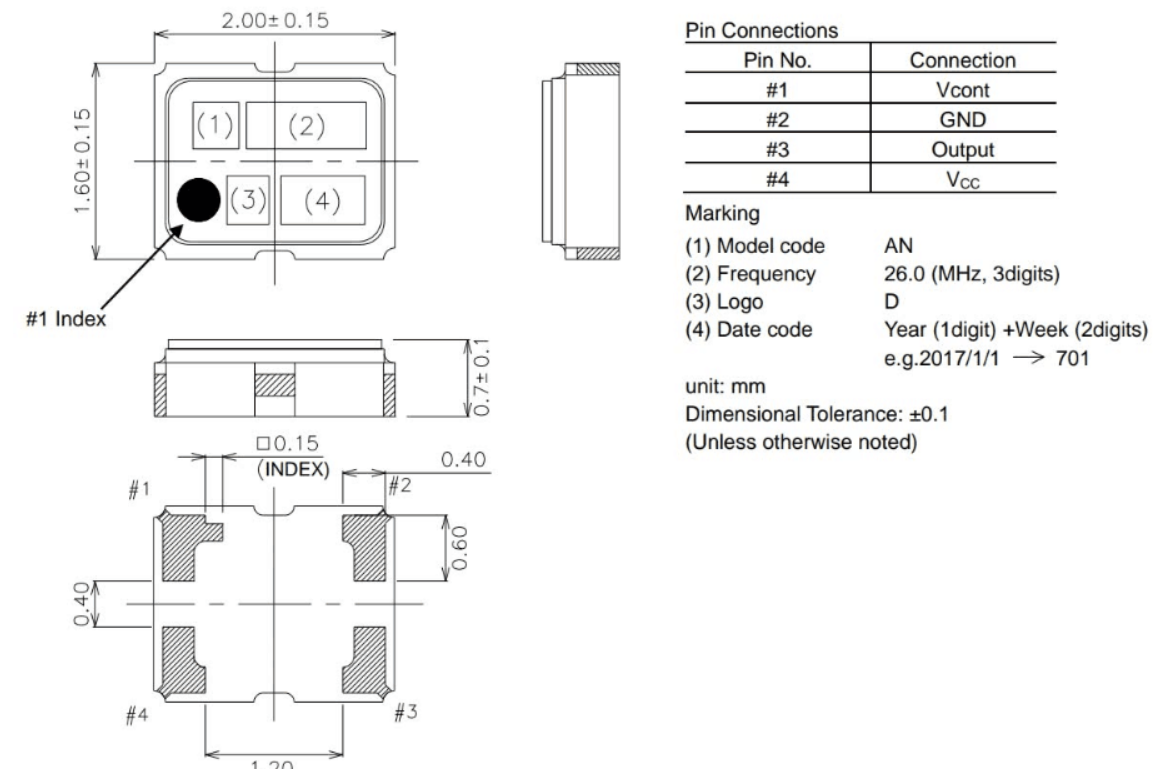

精度0.5PPM KDS压控温补晶振VC-TCXO 26MHZ Outline, Pin Connections尺寸与脚位说明

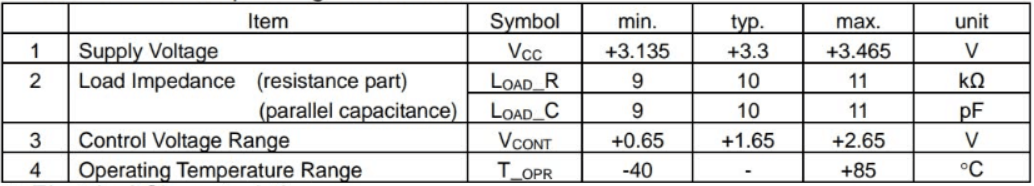

精度0.5PPM KDS压控温补晶振VC-TCXO 26MHZ Recommended Operating Conditions建议工作条件

精度0.5PPM KDS压控温补晶振VC-TCXO 26MHZ Electrical Characteristics电气参数

Notes
1. Clipped sine wave (DC-coupled)
2. TA=+25℃
3. Please leave after reflow in 2h or more at room ambient.
4. Positive slope (Frequency becomes high in proportion to frequency control voltage.)

What is a voltage controlled temperature compensated crystal oscillator?

Temperature Compensated Crystal Oscillators (TCXOs) deliver excellent temperature characteristics combined with low power consumption and fast warmup. Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXOs) combine the same excellent temperature characteristics, low power consumption and fast warmup with a voltage control function to allow precise tuning of the output frequency after PCB assembly.

Voltage control can also be used during operational life, to compensate for any effects of aging as well as offering the ability to pull back to nominal frequency where there is a change of circuit conditions. TCXOs and VC-TCXOs are used where the stability of a standard Crystal Clock Oscillator is insufficient.
