频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA

• Device Name名称: 温补晶振TCXO2016
• Nominal Frequency标称频率: 32.000 MHz
• Size尺寸: 2.0mm*1.6mm
• Model Name型号: DSB211SDN
• Spec. No.料号 : 1XXD32000MHA
• Frequency Stability vs Temperature频率精度: ±0.5PPM
• Supply Voltage额定输入电压范围: 1.8V~3.3V
• Current Consumption功耗: 1.5 mA max.
• Start Up Time启动时间: 2ms
• Output Wave form输出波形：Clipped sine wave削峰正弦波

TCXO2016温补晶振32MHz 1XXD32000MHA Absolute Maximum Rating 值

TCXO2016温补晶振32MHz 1XXD32000MHA Recommended Operating Conditions建议工作条件

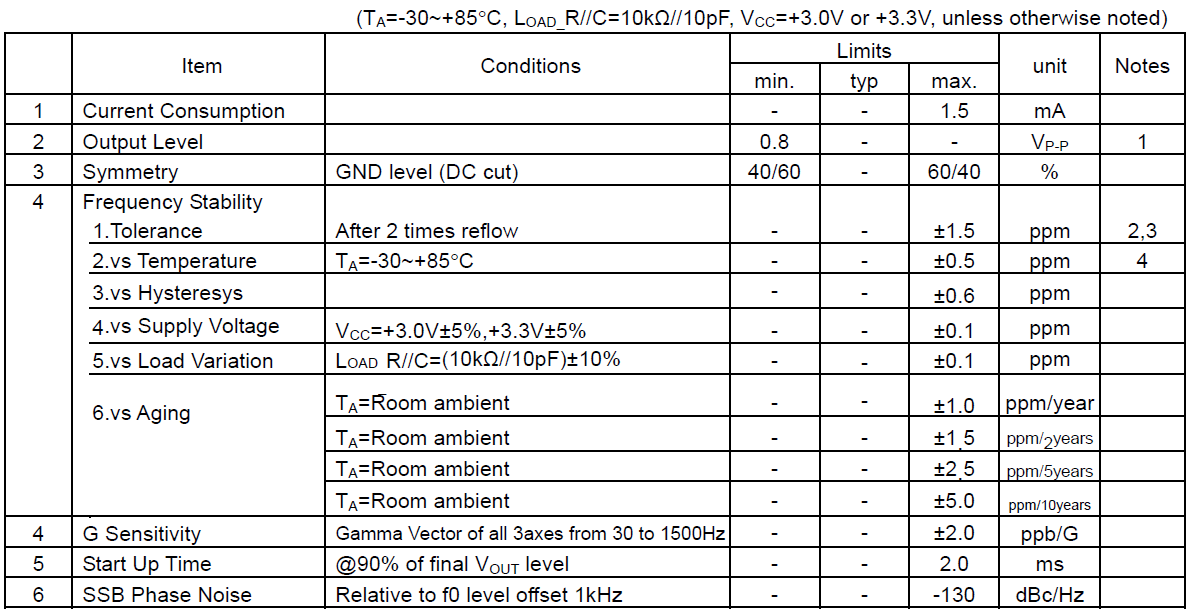

TCXO2016温补晶振32MHz 1XXD32000MHA Electrical Characteristics 电气参数特性

Notes:
1. Clipped sine wave (DC-coupled)
2. Ta=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

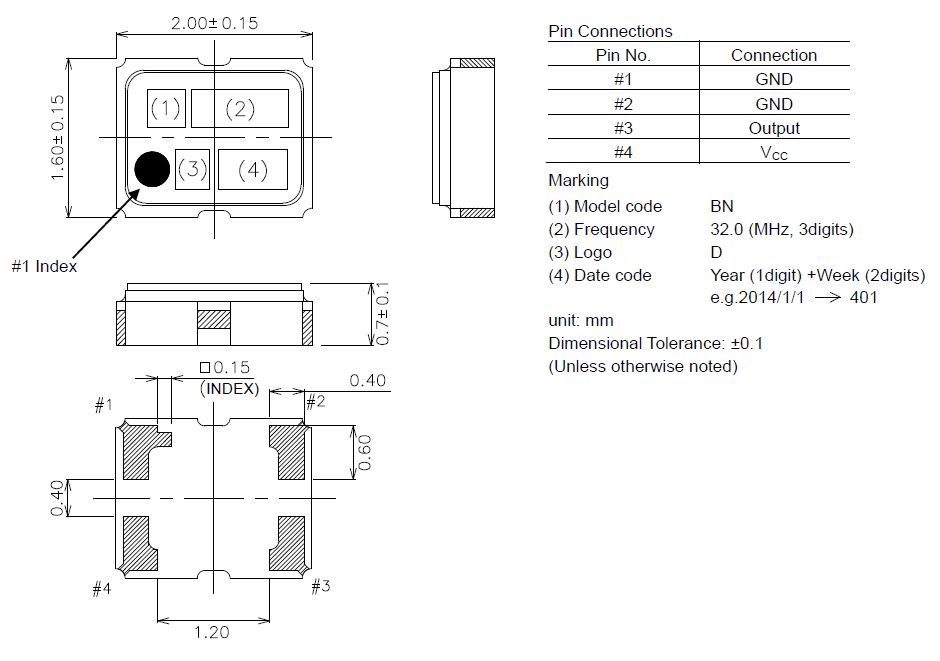

TCXO2016温补晶振32MHz 1XXD32000MHA Outline, Pin Connections外形尺寸及脚位连接说明

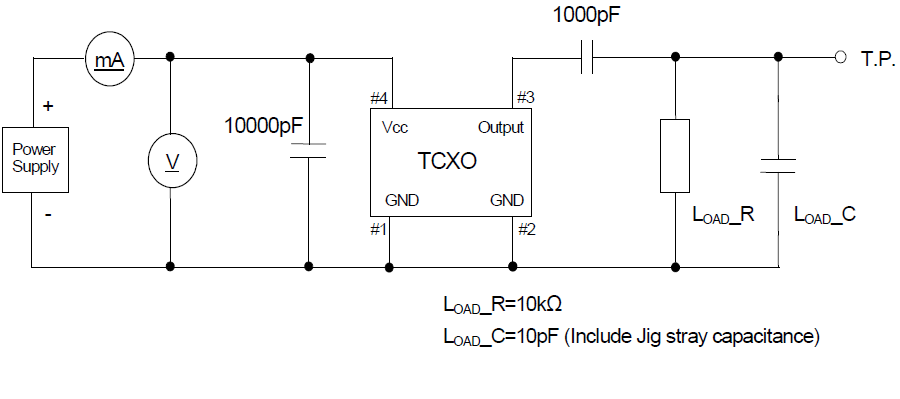

TCXO2016温补晶振32MHz 1XXD32000MHA Measurement Circuit 测试电路
