1XTV10000MDA VC-TCXO压控温补晶振10MHz主要参数

• Device Name名称： VC-TCXO压控温补晶振
• Model Name型号：DSA321SDN
• Size尺寸：3.2mm*2.5mm
• Spec. No. 料号：1XTV10000MDA
• Nominal Frequency标称频率：10.000MHz
• Supply Voltage额定电压： +3.3V
• Control Voltage Range 电压压控范围：+1.5V±1.0V
• Frequency Stability vs Temperature 温度频差：±0.5ppm
• Start Up Time启动时间： 2.0ms
• Output Wave form输出波形： Clipped sine wave (DC-coupled)削峰正弦波
• Operating Temperature Range工作温度范围： -40~+85℃

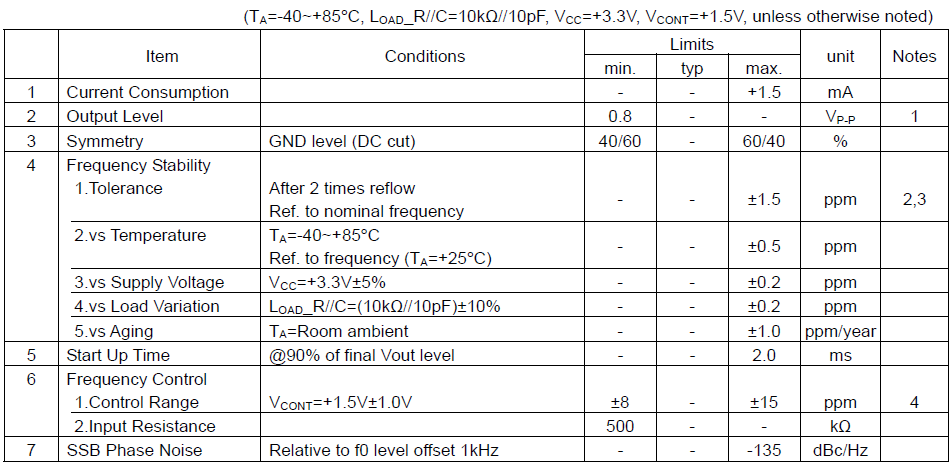

1XTV10000MDA VC-TCXO温补晶振10MHz电气参数详情如下：

Notes
1. Clipped sine wave (DC-coupled)
2. TA=+25℃
3. Please leave after reflow in 2h or more at room ambient.
4. Positive slope (Frequency becomes high in proportion to frequency control voltage.)

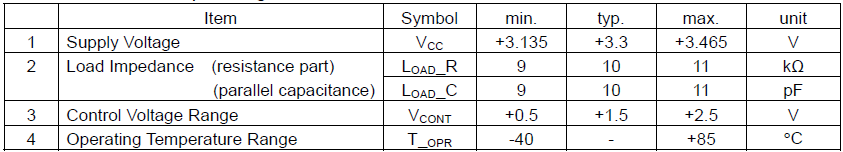

1XTV10000MDA VC-TCXO温补晶振10MHz建议工作条件

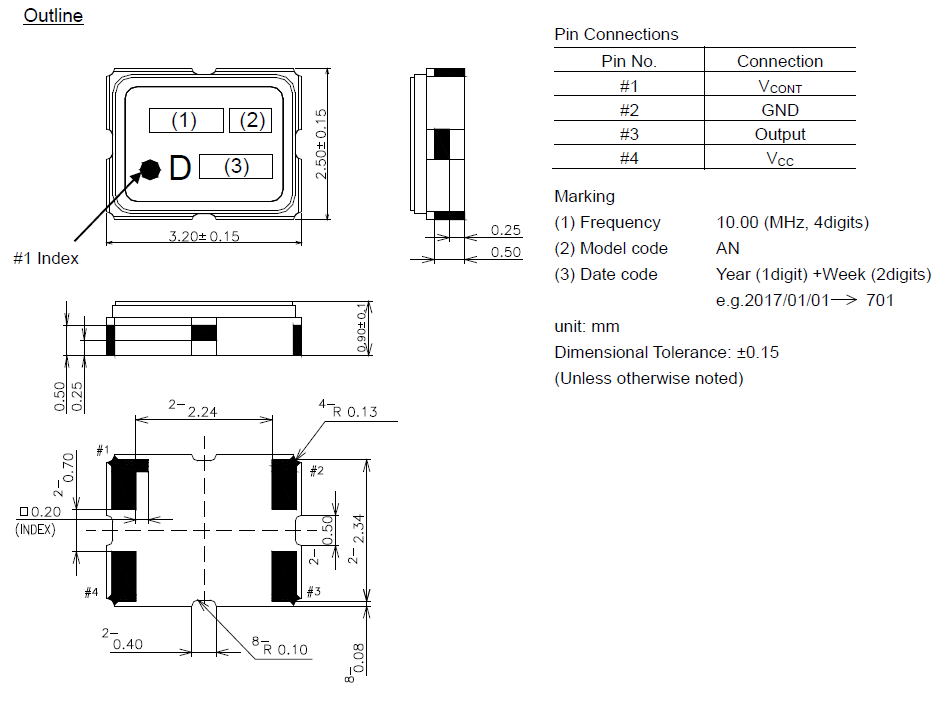

1XTV10000MDA VC-TCXO温补晶振10MHz尺寸及脚位说明

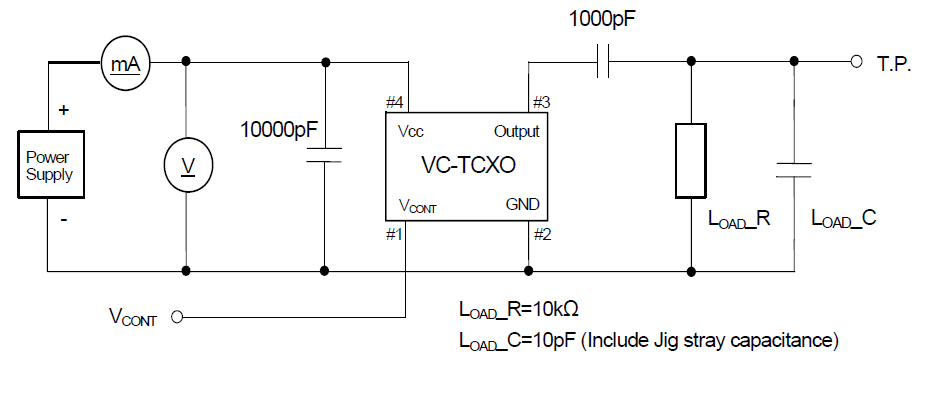

1XTV10000MDA VC-TCXO温补晶振10MHz测试电路
