TCXO3225温补晶振32MHz 1XTW32000MHB规格参数介绍如下：

Main Electrical Characteristics主要电气参数

• Device Name名称: TCXO3225
• Nominal Frequency标称频率: 32.000MHz
• Size尺寸: 3.2mm*2.5mm
• Model Name型号: DSB321SDN
• Spec. No.规格号: 1XTW32000MHB
• Frequency Stability频率稳定度: ±0.5PPM
• Supply Voltage额定输入电压范围: 3.3V
• Output Wave form输出波形:Clipped sine wave 削峰正弦波
• Current Consumption功耗: 2.0mA max.
• Start Up Time启动时间: 2ms
• SSB Phase Noise相噪: -130dBc/Hz

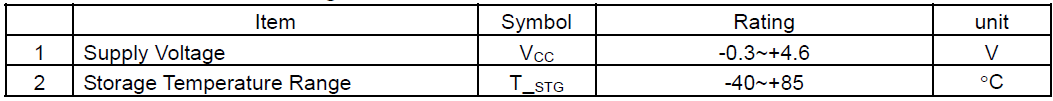

Absolute Maximum Rating值

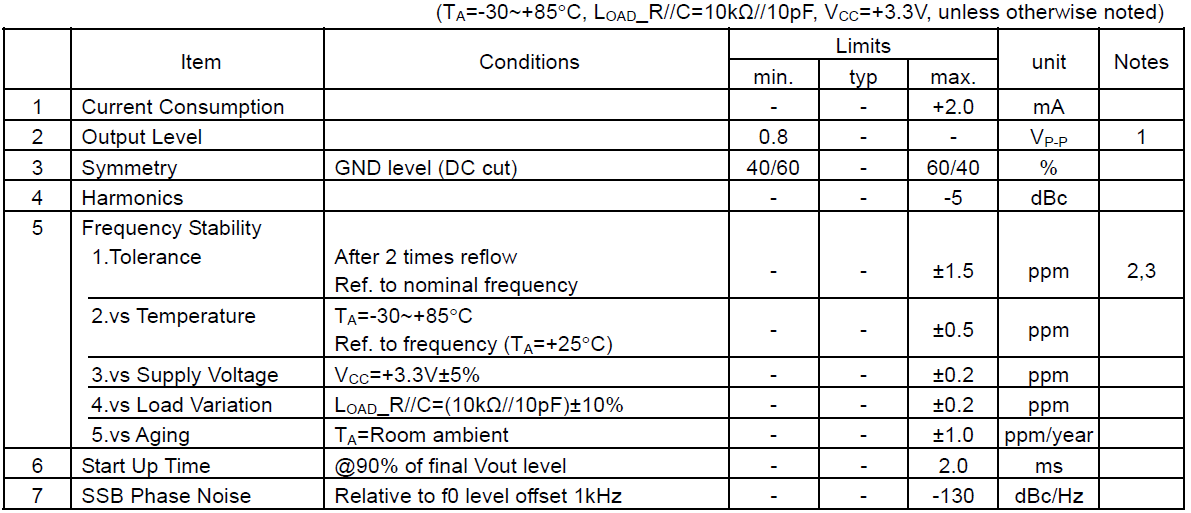

Electrical Characteristics 电气参数特性

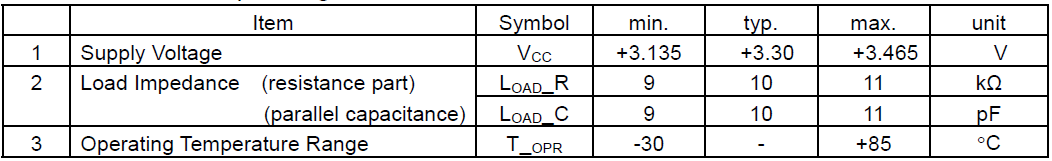

Electrical Operating Conditions电气工作条件

Notes:
1. Clipped sine wave (DC-coupled)
2. Ta=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

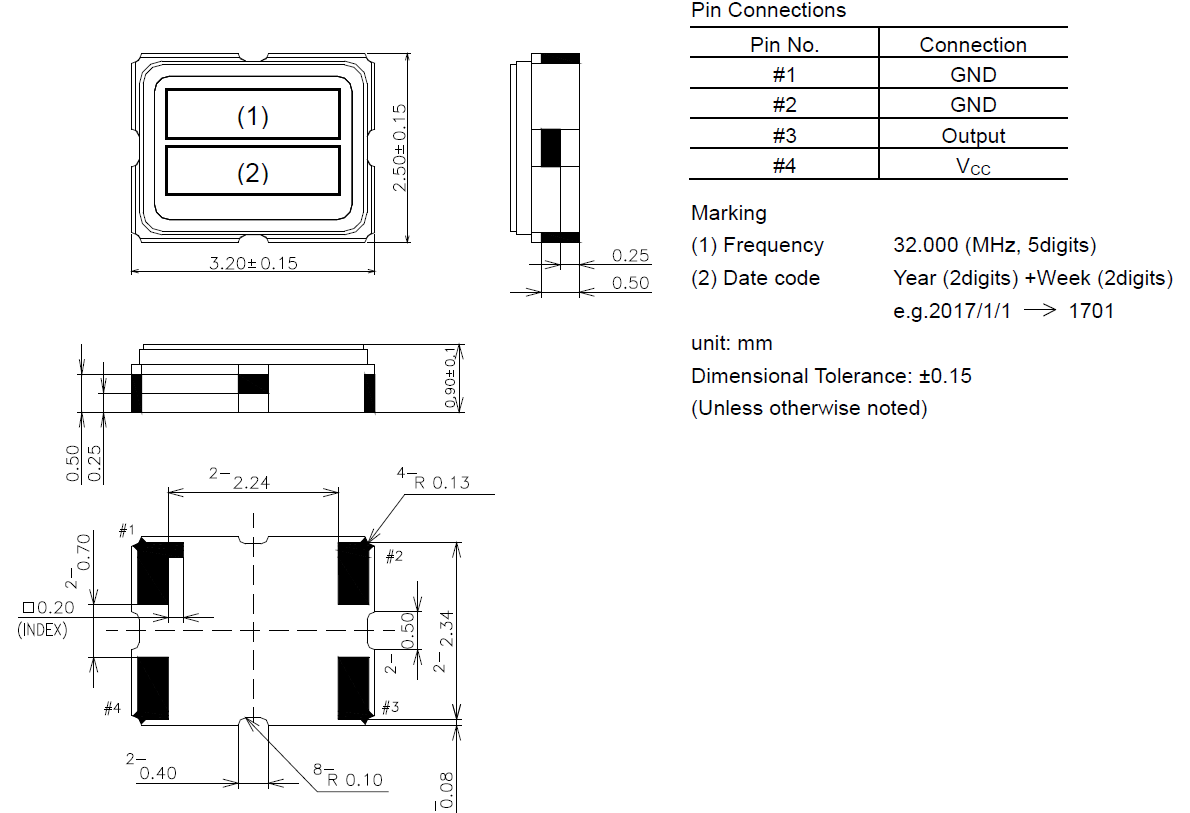

Outline, Pin Connections外形尺寸及脚位电路连接说明

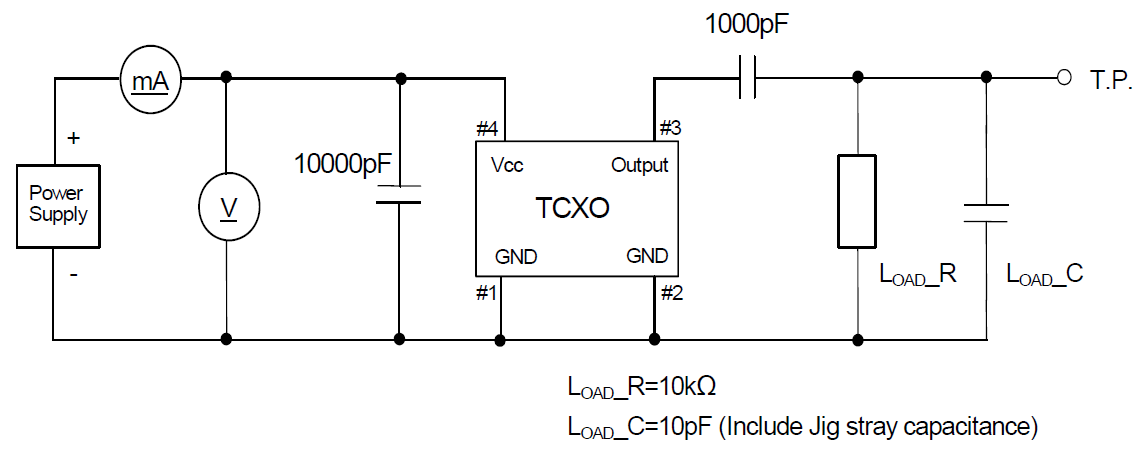

Measurement Circuit 测试电路

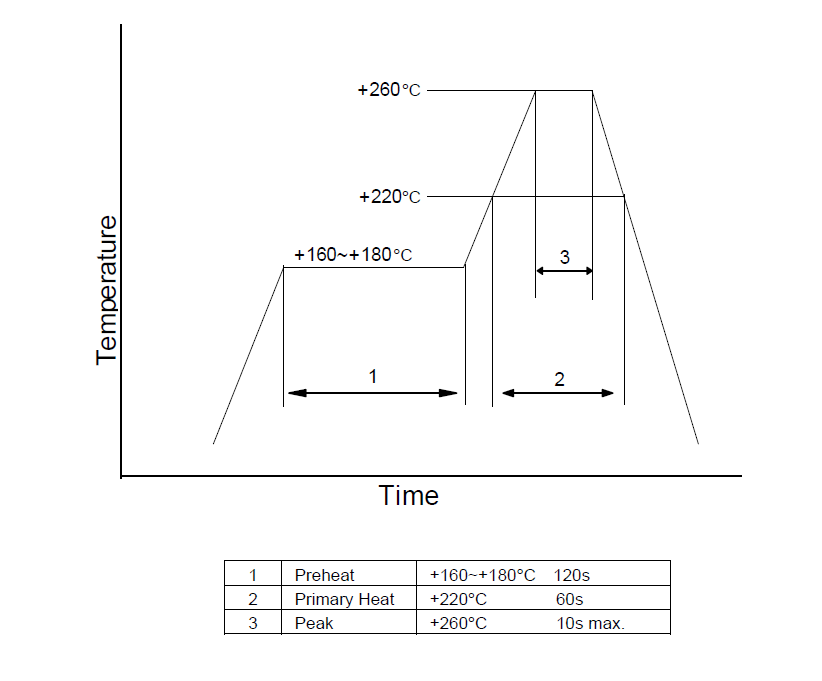

Reflow Profile 回流焊作业说明
