TXC 7V SMD3225晶振37.4MHz电气参数测试条件：温度: +25±3°C ；相对湿度: -40%~70%(This test shall be performed under the conditions of temp.at +25±3°C, Relative Humidity 40%~70%)

TXC 7V SMD3225晶振37.4MHz规格参数如下：

• 类型Type: 无源贴片石英晶振
• 料号SPEC No. : 1C208000BC0R
• 标称频率Nominal Frequency: 37.400000MHz
• 封装尺寸 Holder Type: SMD 3.2*2.5
• 振动模式 Vibration Mode: Fundamental基频
• 调整频差 Frequency Tolerance（at +25±3℃）: ±10ppm
• 频率稳定度 Frequency Stability: ±10ppm (over Operating Temp. Range ,Ref. to+25°C)
• 工作温度范围 Operating Temperature Range:-20~+85℃
• 等效电阻 Equivalent Resistance: ≤50Ω
• 绝缘阻抗 Insulation Resistance：500MΩ min. / DC100
• 静电容 Shunt Capacitance(C0): 3pF max.
• 负载电容 Load Capacitance: 12pF
• 激励功率Drive Level: 100 μw
• 老化率Aging: ±1ppm 1st Year

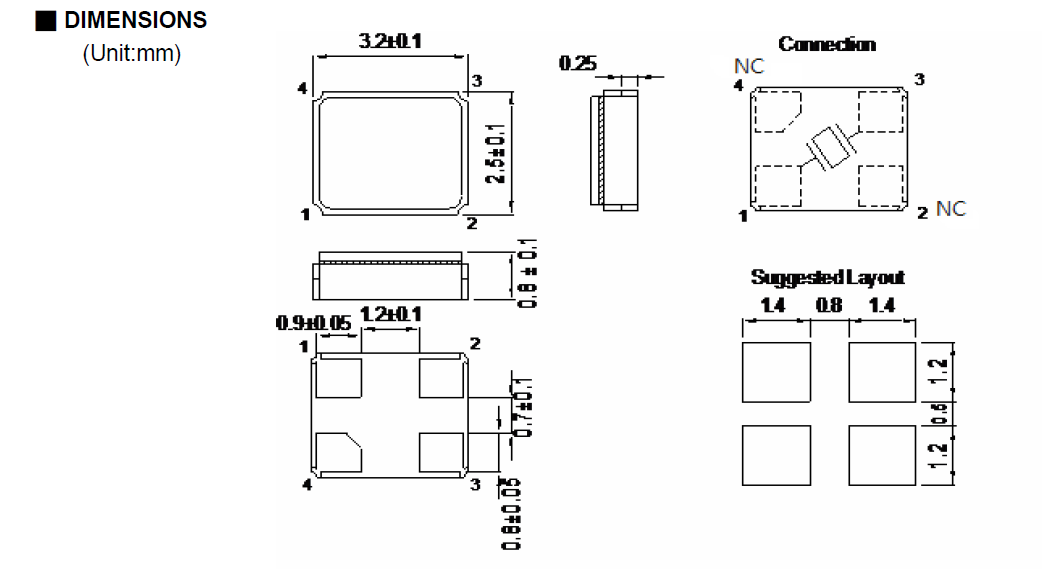

TXC 7V SMD3225晶振37.4MHz尺寸及焊盘说明Dimensions and Pads

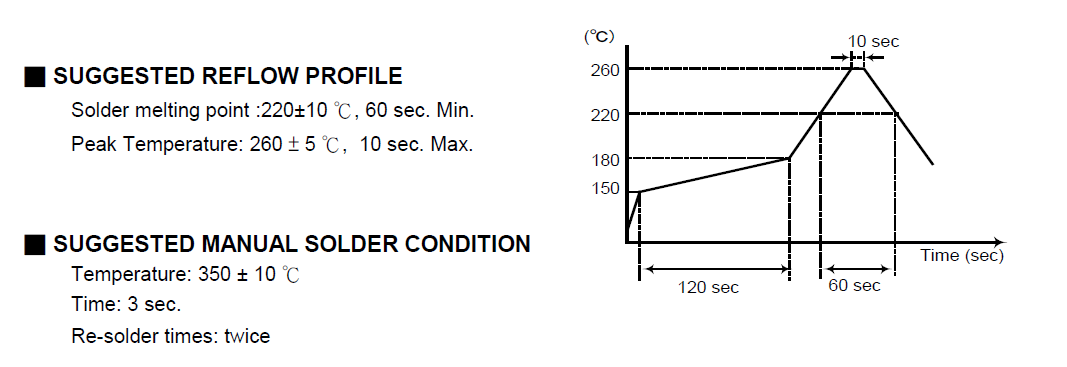

TXC 7V SMD3225晶振37.4MHz回流焊及手焊作业建议Recommended Reflow and Manual Soldering Conditions.

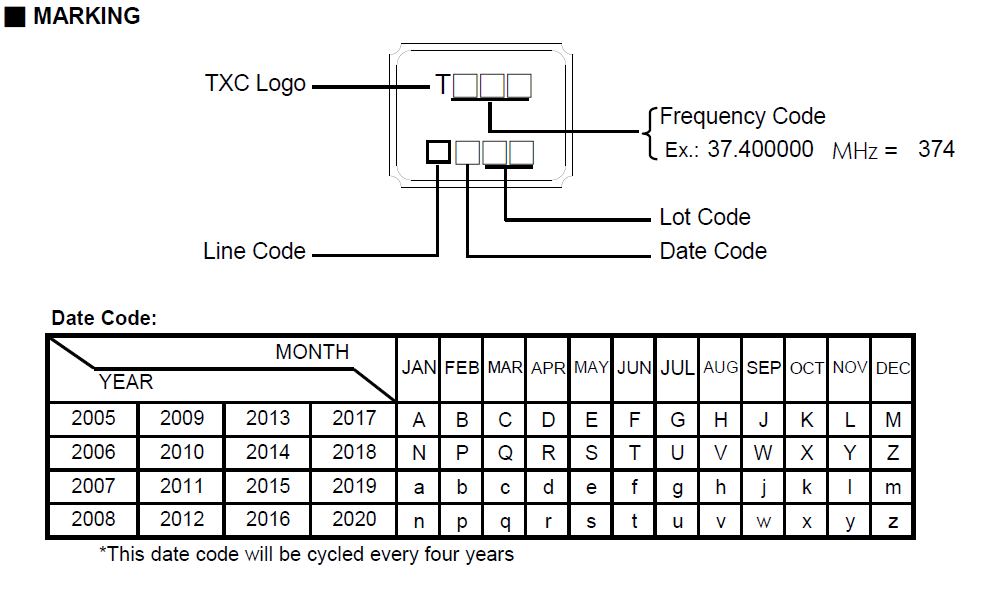

附：TXC晶振丝印说明Marking
