CMOS输出温补晶振TCXO2016 20MHz DSB211SJA主要规格参数

• Device Name晶振名称：TCXO
• Model Name 晶振类型: DSB211SJA
• NOMINAL FREQUENCY标称频率 : 20.000MHz
• Supply Voltage输入电压：+3.3V
• Current Consumption功耗：5.0mA max.
• Frequency Stability温度频差(TA=-40~+85℃ Ref. to frequency (TA=+25℃)：±2.5PPM
• Start Up Time启动时间(@90% of final V_out level)：3ms

TCXO2016 20MHz DSB211SJA输出波型 ：CMOS方波

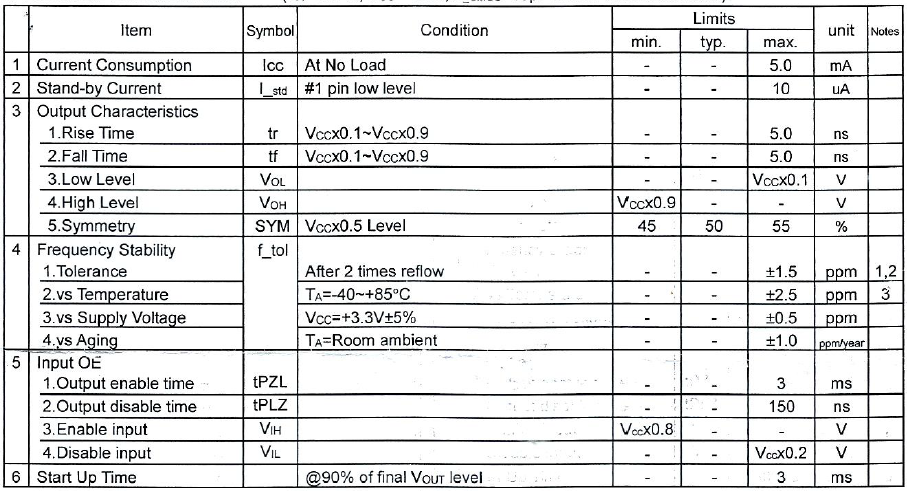

CMOS输出温补晶振TCXO2016 20MHz DSB211SJA电气参数 (TA=+25℃，Vcc=+3.3V，L_cmos=15pF unless other wise noted)

Notes
1. Ref.to nominal frequency.
2. Please leave after reflow in 8 hours or more at room ambient.
3. Ref. to frequency (TA=+25℃).

CMOS输出温补晶振TCXO2016 20MHz DSB211SJA 建议工作条件

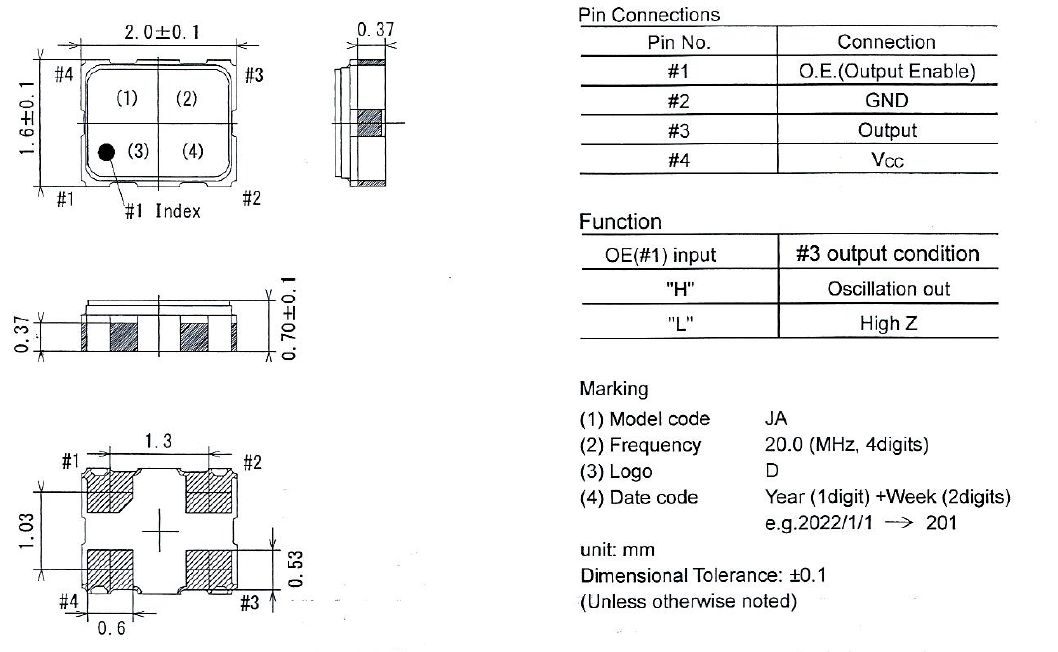

CMOS输出温补晶振TCXO2016 20MHz DSB211SJA尺寸与引脚连接说明

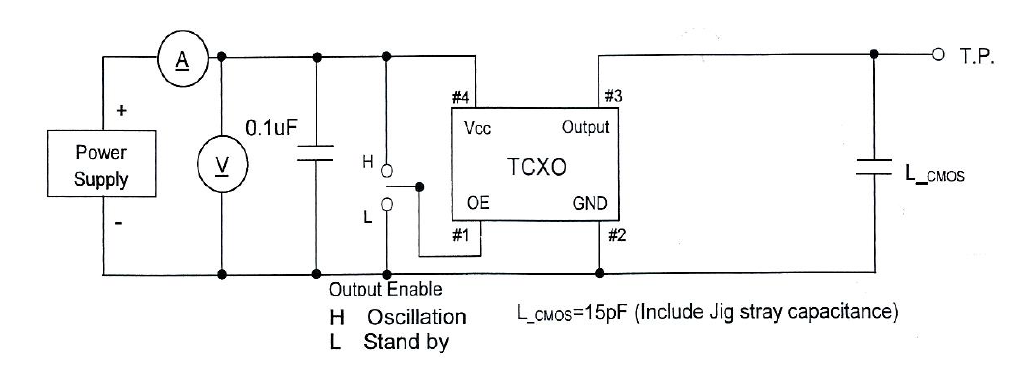

CMOS输出温补晶振TCXO2016 20MHz DSB211SJA测试电路
