±0.5PPM VC-TCXO压控温补晶振32MHZ主要规格参数如下：

• Device Name晶振名称：VC-TCXO
• TYPE 晶振类型: DSA221SDN
• NOMINAL FREQUENCY标称频率 : 32.000MHz
• SPEC No. 晶振料号: ZZ12796
• Supply Voltage输入电压：3.3V
• Current Consumption功耗：2.0mA max.
• Frequency Stability温度频差(TA=-30~+85℃Ref. to frequency (TA=+25C)：±0.5PPM
• Start Up Time启动时间(@90% of final Vout level)：2.0ms
• Output Wave form输出波型 ：Clipped sine wave (DC-coupled)
• SSB Phase Noise相噪(Relative to f0 level offset 1kHz)：-130dBc/Hz

Notes
1. Clipped sine wave (DC-coupled)
2. TA=+25℃
3. Please leave after reflow in 2h or more at room ambient.
4. Positive slope (Frequency becomes high in proportion to frequency control voltage.)

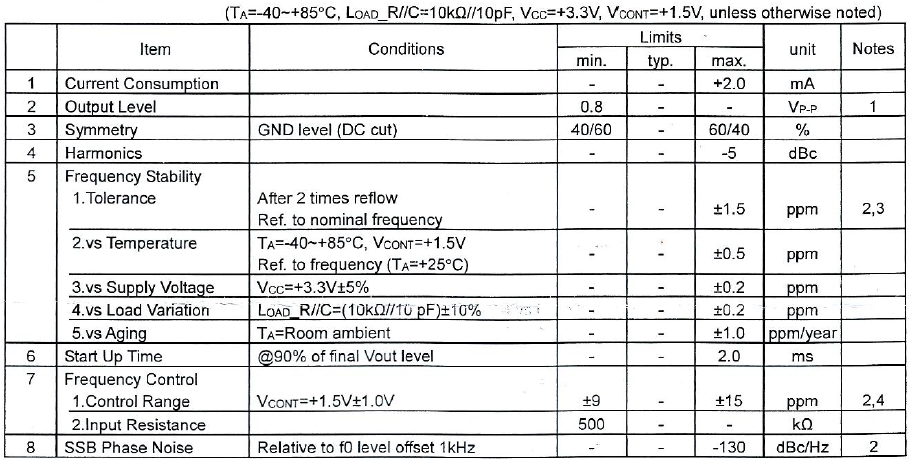

Absolute Maximum Ratings

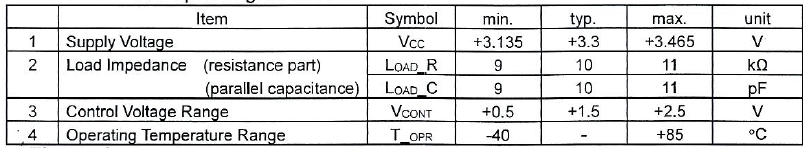

Recommended Operating Conditions

Electrical Characteristics

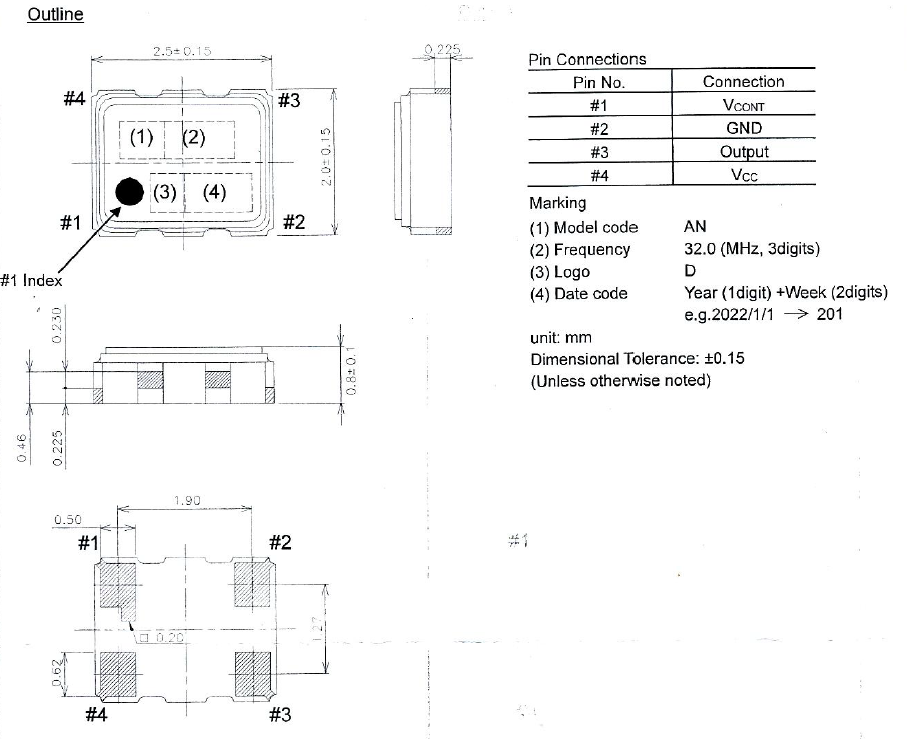

Outline, Pin Connections

Measurement Circuit

What is a voltage controlled temperature compensated crystal oscillator?

Temperature Compensated Crystal Oscillators (TCXOs) deliver excellent temperature characteristics combined with low power consumption and fast warmup. Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXOs) combine the same excellent temperature characteristics, low power consumption and fast warmup with a voltage control function to allow precise tuning of the output frequency after PCB assembly.

Voltage control can also be used during operational life, to compensate for any effects of aging as well as offering the ability to pull back to nominal frequency where there is a change of circuit conditions. TCXOs and VC-TCXOs are used where the stability of a standard Crystal Clock Oscillator is insufficient.
