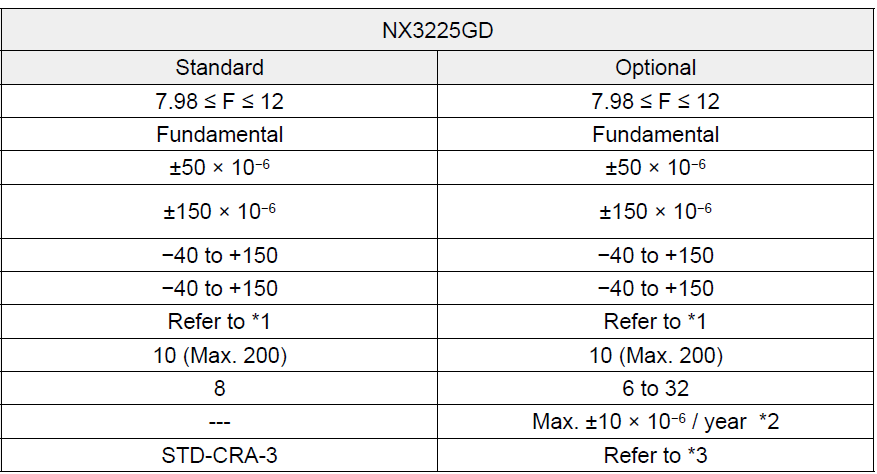

（NX3225GD）
日本电波工业株式会社 (英文全称：Nihon Dempa Kogyo Corporation 简称：NDK)
常用NDK晶振规格参数整理如下：
| NDK晶振料号 | 频率 | 负载电容(pF) | 尺寸(mm) |
| NX2012SA-32.768KHz-STD-MUB-1 | 32.768KHz | 12.5 | SMD2012 |
| NX2012SA-32.768KHz-STD-MUB-2 | 32.768KHz | 9 | |
| NX3215SA-32.768KHz-STD-MUA-8 | 32.768KHz | 12.5 | SMD3215 |
| NX3215SA-32.768KHz-STD-MUA-9 | 32.768KHz | 9 | |
| NX3215SA-32.768KHz-STD-MUA-14 | 32.768KHz | 6 | |
| NX3215SA-32.768KHz-STD-MUS-2 | 32.768KHz | 12.5 | |
| NX2016SA-16MHz-EXS00A-CS11636 | 16MHz | 9 | SMD2016 |
| NX2016SA-26MHz-EXS00A-CS11655 | 26MHz | 9 | |
| NX2016SA-32MHz-EXS00A-CS11656 | 32MHz | 10 | |
| NX3225GA-9.84375MHz-STD-CRG-2 | 9.84375MHz | 8 | SMD3225 |
| NX3225GA-12MHz-STD-CRG-2 | 12MHz | 8 | |
| NX3225GA-12.5MHz-EXS00A-CS02847 | 12.5MHz | 8 | |
| NX3225GA-13.08148MHz-STD-CRG-2 | 13.08148MHz | 8 | |
| NX3225GA-13.56MHz-EXS00A-CG05804 | 13.56MHz | 8 | |
| NX3225GA-16MHz-STD-CRG-2 | 16MHz | 8 | |
| NX3225GA-16MHz-STD-CRA-1 | 16MHz | 8 | |
| NX3225GA-18.432MHz-EXS00A-CG02951 | 18.432MHz | 8 | |
| NX3225GA-20MHz-STD-CRA-1 | 20MHz | 8 | |
| NX3225GA-21.948717MHz-STD-CRG-2 | 21.948717MHz | 8 | |
| NX3225GA-24MHz-STD-CRA-1 | 24MHz | 8 | |
| NX3225GA-24MHz-STD-CRG-2 | 24MHz | 8 | |
| NX3225GA-24.305MHz-EXS00A-CG07038 | 24.305MHz | 8 | |
| NX3225GA-24.576MHz- | 24.576 | 6 | |
| NX3225GA-26MHz-EXS00A-CG04499 | 26MHz | 9 | |
| NX3225GA-27.6MHz-EXS00A-CG07030 | 27.6MHz | 10 | |
| NX3225GA-28.63636MHz-STD-CRG-2 | 28.63636MHz | 8 | |
| NX3225GA-28.63636MHz-EXS00A-CG03693 | 28.63636MHz | 16 | |
| NX3225GA-33.6MHz-EXS00A-CG08001 | 33.6MHz | 10 | |
| NX3225GA-40MHz-EXS00A-CG04457 | 40MHz | 15 | |
| NX3225GB-20MHz-STD-CRA-2 | 20MHz | 8 | |
| NX3225GD-8MHz-STD-CRA-3 | 8MHz | 8 | |
| NX3225SA-16MHz-STD-CSR-1 | 16MHz | 8 | |
| NX3225SA-16M-STD-CSR-6 | 16M | 8 | |
| NX3225SA-18.08MHz-EXS00A-CS11176 | 18.08MHz | 12 | |
| NX3225SA-27M-EXS00A-CS05990 | 27M | 6 | |
| NX3225SC-10MHz-STD-CRS-1 | 10MHz | 8 | |
| NX3225SC-18.08MHz-STD-CRS-1 | 18.08MHz | 8 | |
| NX5032GA-8MHz-EXS00A-CG04399 | 8MHz | 20 | SMD5032 |
| NX5032GA-8MHz-STD-CSK-7 | 8MHz | 8 | |
| NX5032GA-8MHz-STD-CSU-1 | 8MHz | 8 | |
| NX5032GA-9.8304MHz-EXS00A-CG08288 | 9.8304MHz | 8 | |
| NX5032GA-9.84375MHz-STD-CSK-7 | 9.84375MHz | 8 | |
| NX5032GA-10MHz-STD-CSK-3 | 10MHz | 8 | |
| NX5032GA-12MHz-EXS00A-CG04400 | 12MHz | 20 | |
| NX5032GA-12MHz-STD-CSK-8 | 12MHz | 8 | |
| NX5032GA-16MHz-STD-CSK-8 | 16MHz | 8 | |
| NX5032GA-16MHz-STD-CSU-2 | 16MHz | 8 | |
| NX5032GA-25MHz-STD-CSU-2 | 25MHz | 8 | |
| NX8045GB-8MHz-STD-CSJ-1 | 8MHz | 8 | SMD8045 |
| NX8045GE-4MHz-STD-CJL-6 | 4MHz | 8 |
