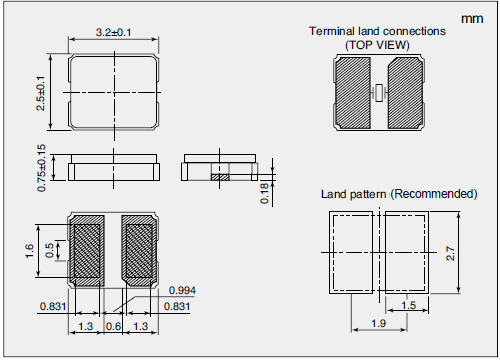

NDK车规级晶体谐振器SMD3225-2PIN(NX3225GB/NX3225GD)规格参数如下：
1、车规级晶体谐振器NX3225GB (for Automotive)
NX3225GB特点及优势
NX3225GB主要电气参数
| 电气参数 | 标准 | 可选择 |
| Nominal Frequency (MHz)标称频率 | 12 ≤ F ≤ 50 | 12 ≤ F ≤ 50 |
| Package Size尺寸 (L×W×H : mm) | 3.2×2.5×0.75 | 3.2×2.5×0.75 |
| Overtone Order振荡模式 | Fundamental | Fundamental |
| Frequency Tolerance (25±3°C)调整频差 | ±50×10-6 | ±50×10-6 |
| Frequency versus Temperature Characteristics温度频差(with reference to 25°C) | ±150×10-6 | ±150×10-6 |
| Operating Temperature Range (°C)工作温度 | -40 to +150 | -40 to +150 |
| Storage Temperature Range (°C)存储温度 | -40 to +150 | -40 to +150 |
| Equivalent Series Resistance (Ω)等效阻抗 | Max. 120 (12 ≤ F < 20MHz) Max. 100 (20 ≤ F ≤ 50MHz) | Max. 120 (12 ≤ F < 20MHz) Max. 100 (20 ≤ F ≤ 50MHz) |
| Level of Drive (µW)激励功率 | 10 (Max. 200) | 10 (Max. 200) |
| Load Capacitance (pF)负载电容 | 8 | 6 to 32 |
| Frequency Aging (+25°C)老化率 | — | Max. ±10×10-6/year *1 |
2、车规级晶体谐振器NX3225GD (for Automotive)
NX3225GD特点优势
NX3225GD主要电气参数
| 电气参数 | 标准 | 可选择 |
| Nominal Frequency (MHz)标称频率 | 7.98 ≤ F ≤ 12 | 7.98 ≤ F ≤ 12 |
| Package Size 尺寸(L×W×H : mm) | 3.2×2.5×0.80 | 3.2×2.5×0.80 |
| Overtone Order振荡模式 | Fundamental | Fundamental |
| Frequency Tolerance (25±3°C)调整频差 | ±50×10-6 | ±50×10-6 |
| Frequency versus Temperature Characteristics温度频差(with reference to 25°C) | ±150×10-6 | ±150×10-6 |
| Operating Temperature Range (°C)工作温度 | -40 to +150 | -40 to +150 |
| Storage Temperature Range (°C)存储温度 | -40 to +150 | -40 to +150 |
| Equivalent Series Resistance (Ω)等效阻抗 | Max. 500 (7.98 ≤ F < 9.8MHz) Max. 300 (9.8 ≤ F ≤ 12MHz) | Max. 500 (7.98 ≤ F < 9.8MHz) Max. 300 (9.8 ≤ F ≤ 12MHz) |
| Level of Drive (µW)激励功率 | 10 (Max. 200) | 10 (Max. 200) |
| Load Capacitance (pF)负载电容 | 8 | 6 to 32 |
| Frequency Aging (+25°C)老化率 | — | Max. ±10×10-6/year *1 |
