技术参数	SPECIFICATION	MODEL
项目	ITEM	HQ500	HQ800
工件回转直径	Swing over bed	φ420mm
两顶距离	Distance between centers	500mm	800mm
纵向行程	Max. longitudinal travel	440mm	740mm
横向行程	Max. cross travel	200mm
主轴孔锥度	Taper of spindle	M.T.4
主轴孔径	Spindle hole	φ28mm
主轴转速级数	Step of spindle speed	7
主轴转速范围	Range of spindle speed	160-1360r.p.m
尾架套筒行程	Barrel travel	70mm
尾架套筒锥度	Taper of center	M.T.3
公制螺纹切削范围	Metric thread range	0.2-6mm
英制螺纹切削范围	Inch thread range	4-120T.P.I
纵向自动走刀进给量	Longitudinal range of automatic feeding	0.05-0.35mm/0.002-0.014＂
横向自动走刀进给量	Cross range of automatic feeding	0.05-0.35mm/0.002-0.014＂
钻削直径	Max. drilling capacity	φ22mm
工作台面积	Worktable size (L*W)	475×160mm2
立铣刀直径	Max. end mill	φ28mm
面铣刀直径	Max. face mill	φ80mm
钻铣轴中心线至立柱表面距离	Distance between spindle center and column	285mm
钻铣轴端面至工作台面距离	Distance between spindle and worktable	306mm
钻铣轴行程	Headstock travel of up and down	110mm
钻铣轴孔锥度	Spindle taper	M.T.3
钻铣轴转速级数	Step of spindle speed	16
钻铣轴转速范围	Range of spindle speed	120-3000r.p.m
钻铣箱回转角度	Swivel degree of headstock	±360°
主电机功率/钻铣头电机功率	Motor power	0.55Kw/0.55Kw
电压/频率	Voltage/Frequency	As customers’ requirement
包装尺寸	Packing size	1130×580×1100mm	1430×580×1100mm
净重/毛重	N. weight/G .weight	245kg/280kg	275kg/325kg
装箱数	Loading amount(20"comtainer)	40pcs	32pcs

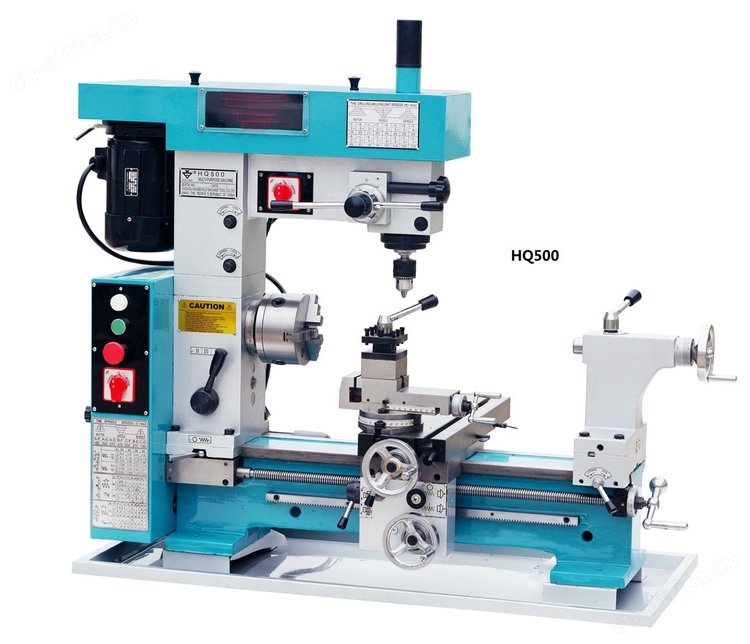

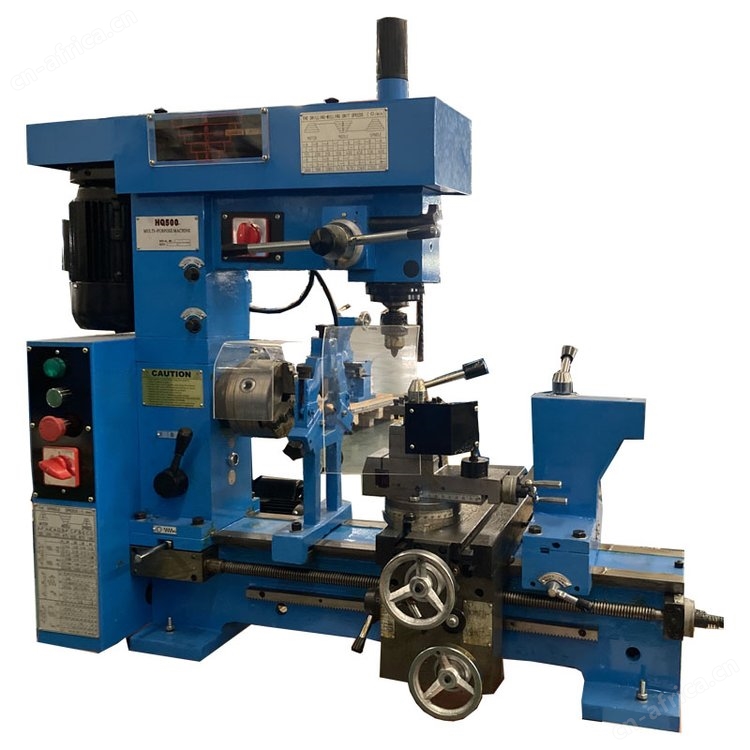

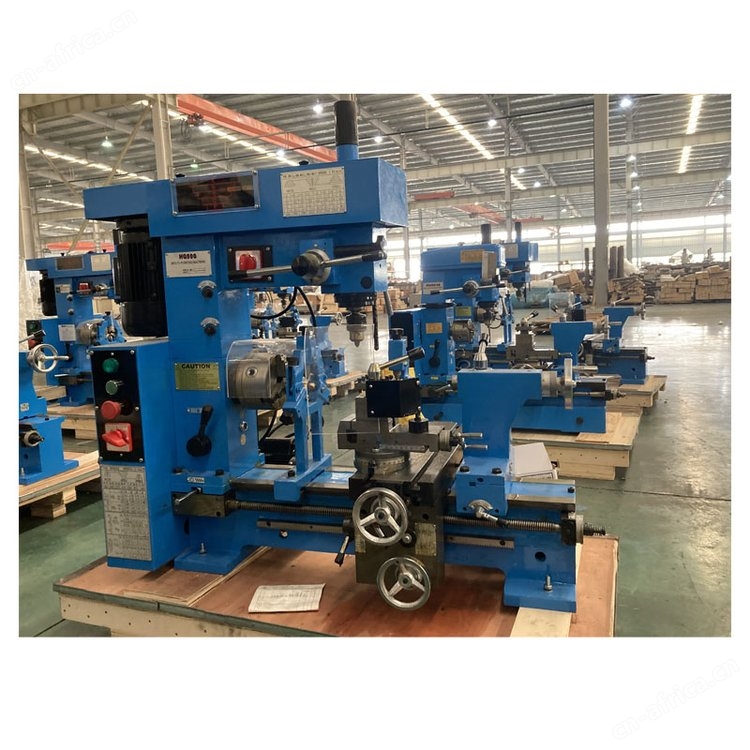

ULTI PURPOSE MACHINE HQ500 HQ800

FEATURES:
*A kind of combination machines with turning,milling,drilling and threading;
*Metric or Imperial thread cutting;
*Suitable for processing metal,wood and other material;
*Excellent advantage of various functions, small occupation and economlization;
*Widely used in job-shops,car-shops,technical school,factories and family for machine parts repairing and making, education training,household utensils' making,etc.
Standard Accs.:
* Changing gears.
*Tool-post wrench,
*Double ends wrench,
*Draw bar and washer,
*Drill chuck arbor,
*3-jaw chuck,
*Screws,
*Wedge,
*Centre,
*Allen wrench,
Optional Accs.:
*Machine stand
*Follow rest

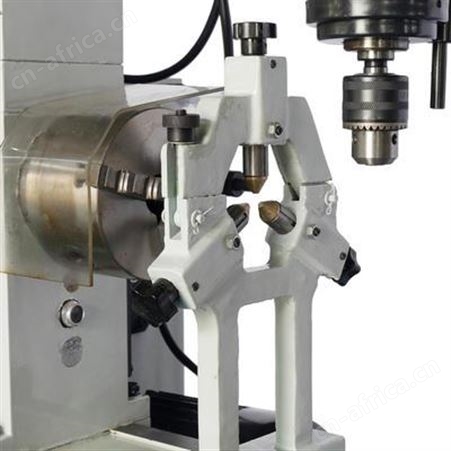

*Steady rest
*4-jaw chuck
*Back plate for 4-jaw chuck
*Reversible thread tapping tools
*Lathe tools ( 5 pcs)
*Drill chuck
*Milling holder(4 tools)
*Face plate
*Protector of lead-screw(flexible)
*Protector for tool-post
*Protector for drill chuck
*Protector for chuck
*European quick change toolpost
