输送液体的流量范围：1~120L/s
扬程范围：30~160m
配套功率范围：1.5~200KW
额定转速：2900r/min,2850r/min
1.介质温度:-15℃~80℃；
2.环境温度不大于40℃，相对湿度小于95%；
3.可输送清水或物理化学性质类似于清水的无腐蚀性介质，其固体不溶物不超过0.1%。

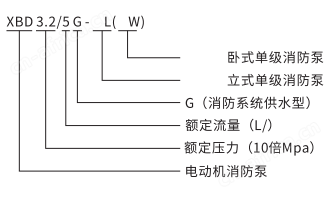

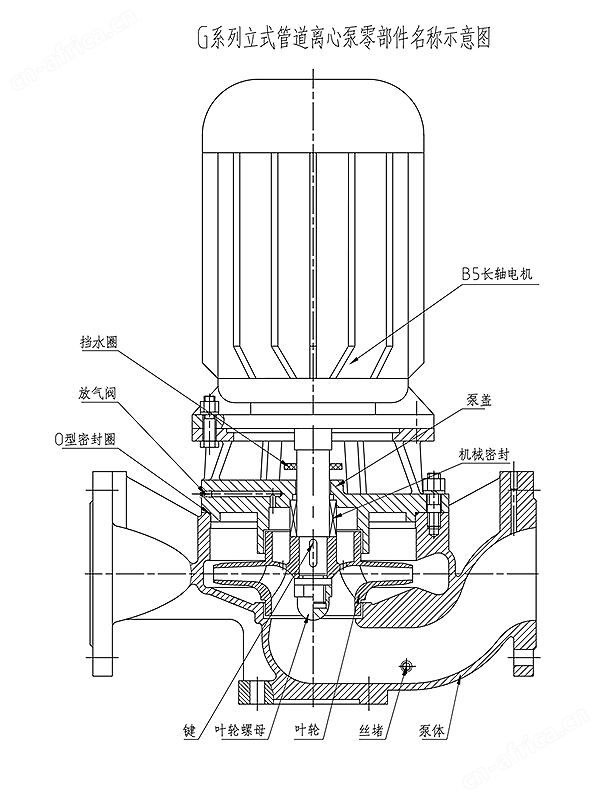

产品简介 型号意义 产品优势 性能参数 结构图纸 注意事项 原厂实图
立式单级消防泵组主要用于消防系统管道增压送水。也可适用于工业和城市给排水，高层建筑增压送水、远距离送水、采暖、浴室、锅炉冷暖水循环增压、空调制冷系统送水及设备配套等场合。
| 序号 | 消防型号 | 额定压力 | 额定流量 | 功率 | 转速r/min |
| MPa | L./S | KW | |||
| 1 | XBD3.2/5G-HKG | 0.32 | 5 | 5.5 | 2900 |
| 2 | XBD4.0/5G-HKG | 0.4 | 7.5 | 2900 | |
| 3 | XBD5.0/5G-HKG | 0.5 | 7.5 | 2900 | |
| 4 | XBD6.0/5G-HKG | 0.6 | 11 | 2900 | |
| 5 | XBD7.0/5G-HKG | 0.7 | 11 | 2900 | |
| 6 | XBD8.0/5G-HKG | 0.8 | 15 | 2900 | |
| 7 | XBD3.2/10G-HKG | 0.32 | 10 | 7.5 | 2900 |
| 8 | XBD4.0/10G-HKG | 0.4 | 11 | 2900 | |
| 9 | XBD4.6/10G-HKG | 0.46 | 11 | 2900 | |
| 10 | XBD6.0/10G-HKG | 0.6 | 15 | 2900 | |
| 11 | XBD7.0/10G-HKG | 0.7 | 18.5 | 2900 | |
| 12 | XBD8.0/10G-HKG | 0.8 | 22 | 2900 | |
| 13 | XBD9.0/10G-HKG | 0.9 | 30 | 2900 | |
| 14 | XBD10.0/10G-HKG | 1 | 30 | 2900 | |
| 15 | XBD11.0/10G-HKG | 1.1 | 30 | 2900 | |
| 16 | XBD12.0/10G-HKG | 1.2 | 37 | 2900 | |
| 17 | XBD3.2/15G-HKG | 0.32 | 15 | 7.5 | 2900 |
| 18 | XBD4.0/15G-HKG | 0.4 | 11 | 2900 | |
| 19 | XBD5.0/15G-HKG | 0.5 | 15 | 2900 | |
| 20 | XBD6.0/15G-HKG | 0.6 | 15 | 2900 | |
| 21 | XBD7.0/15G-HKG | 0.7 | 18.5 | 2900 | |
| 22 | XBD8.0/15G-HKG | 0.8 | 22 | 2900 | |
| 23 | XBD9.0/15G-HKG | 0.9 | 30 | 2900 | |
| 24 | XBD10.3/15G-HKG | 1 | 30 | 2900 | |
| 25 | XBD11.0/15G-HKG | 1.1 | 30 | 2900 | |
| 26 | XBD12.0/15G-HKG | 1.2 | 37 | 2900 | |
| 27 | XBD3.2/20G-HKG | 0.32 | 20 | 15 | 2900 |
| 28 | XBD4.0/20G-HKG | 0.4 | 18.5 | 2900 | |
| 29 | XBD5.0/20G-HKG | 0.5 | 22 | 2900 | |
| 30 | XBD6.0/20G-HKG | 0.6 | 30 | 2900 | |
| 31 | XBD7.0/20G-HKG | 0.7 | 30 | 2900 | |
| 32 | XBD8.0/20G-HKG | 0.8 | 37 | 2900 | |
| 33 | XBD9.0/20G-HKG | 0.9 | 45 | 2900 | |
| 34 | XBD10.0/20G-HKG | 1 | 45 | 2900 | |
| 35 | XBD11.0/20G-HKG | 1.1 | 55 | 2900 | |
| 36 | XBD12.0/20G-HKG | 1.2 | 75 | 2900 | |
| 37 | XBD12.9/20G-HKG | 1.29 | 75 | 2900 | |
| 38 | XBD14.0/20G-HKG | 1.4 | 75 | 2900 | |
| 39 | XBD15.0/20G-HKG | 1.5 | 90 | 2900 | |
| 40 | XBD5.0/25G-HKG | 0.5 | 25 | 22 | 2900 |
| 41 | XBD6.0/25G-HKG | 0.6 | 30 | 2900 | |
| 42 | XBD7.0/25G-HKG | 0.7 | 30 | 2900 | |
| 43 | XBD8.0/25G-HKG | 0.8 | 37 | 2900 | |
| 44 | XBD9.0/25G-HKG | 0.9 | 45 | 2900 | |
| 45 | XBD10.0/25G-HKG | 1 | 45 | 2900 | |
| 46 | XBD11.0/25G-HKG | 1.1 | 55 | 2900 | |
| 47 | XBD12.0/25G-HKG | 1.2 | 75 | 2900 | |
| 48 | XBD13.3/25G-HKG | 1.33 | 90 | 2900 | |
| 49 | XBD14.0/25G-HKG | 1.4 | 90 | 2900 | |
| 50 | XBD15.0/25G-HKG | 1.5 | 90 | 2900 | |
| 51 | XBD3.2/30G-HKG | 0.32 | 30 | 15 | 2900 |
| 52 | XBD4.0/30G-HKG | 0.4 | 18.5 | 2900 | |
| 53 | XBD5.0/30G-HKG | 0.5 | 22 | 2900 | |
| 54 | XBD6.0/30G-HKG | 0.6 | 30 | 2900 | |
| 55 | XBD7.0/30G-HKG | 0.7 | 30 | 2900 | |
| 56 | XBD8.0/30G-HKG | 0.8 | 37 | 2900 | |
| 57 | XBD9.0/30G-HKG | 0.9 | 45 | 2900 | |
| 58 | XBD10.0/30G-HKG | 1 | 45 | 2900 | |
| 59 | XBD11.0/30G-HKG | 1.1 | 55 | 2900 | |
| 60 | XBD12.0/30G-HKG | 1.2 | 75 | 2900 | |
| 61 | XBD12.5/30G-HKG | 1.25 | 90 | 2900 | |
| 62 | XBD13.2/30G-HKG | 1.32 | 90 | 2900 | |
| 63 | XBD14.0/30G-HKG | 1.4 | 90 | 2900 | |
| 64 | XBD15.0/30G-HKG | 1.5 | 90 | 2900 | |
| 65 | XBD3.2/40G-HKG | 0.32 | 40 | 22 | 2900 |
| 66 | XBD4.0/40G-HKG | 0.4 | 30 | 2900 | |
| 67 | XBD4.6/40G-HKG | 0.46 | 45 | 2900 | |
| 68 | XBD5.2/40G-HKG | 0.52 | 37 | 2900 | |
| 69 | XBD6.0/40G-HKG | 0.6 | 37 | 2900 | |
| 70 | XBD7.0/40G-HKG | 0.7 | 45 | 2900 | |
| 71 | XBD8.0/40G-HKG | 0.8 | 55 | 2900 | |
| 72 | XBD9.0/40G-HKG | 0.9 | 75 | 2900 | |
| 73 | XBD10.0/40G-HKG | 1 | 75 | 2900 | |
| 74 | XBD11.0/40G-HKG | 1.1 | 75 | 2900 | |
| 75 | XBD12.0/40G-HKG | 1.2 | 90 | 2900 | |
| 76 | XBD13.0/40G-HKG | 1.3 | 110 | 2900 | |
| 77 | XBD14.0/40G-HKG | 1.4 | 110 | 2900 | |
| 78 | XBD15.0/40G-HKG | 1.5 | 110 | 2900 | |
| 79 | XBD4.0/50G-HKG | 0.4 | 50 | 30 | 2900 |
| 80 | XBD5.0/50G-HKG | 0.5 | 37 | 2900 | |
| 81 | XBD6.0/50G-HKG | 0.6 | 45 | 2900 | |
| 82 | XBD7.0/50G-HKG | 0.7 | 55 | 2900 | |
| 83 | XBD8.0/50G-HKG | 0.8 | 75 | 2900 | |
| 84 | XBD9.0/50G-HKG | 0.9 | 90 | 2900 | |
| 85 | XBD10.0/50G-HKG | 1 | 90 | 2900 | |
| 86 | XBD11.0/50G-HKG | 1.1 | 90 | 2900 | |
| 87 | XBD12.0/50G-HKG | 1.2 | 110 | 2900 | |
| 88 | XBD13.0/50G-HKG | 1.3 | 110 | 2900 | |
| 89 | XBD14.0/50G-HKG | 1.4 | 110 | 2900 | |
| 90 | XBD15.0/50G-HKG | 1.5 | 110 | 2900 | |
| 91 | XBD4.0/60G-HKG | 0.4 | 60 | 45 | 2900 |
| 92 | XBD5.0/60G-HKG | 0.5 | 55 | 2900 | |
| 93 | XBD5.8/60G-HKG | 0.58 | 90 | 2900 | |
| 94 | XBD7.0/60G-HKG | 0.7 | 90 | 2900 | |
| 95 | XBD8.0/60G-HKG | 0.8 | 90 | 2900 | |
| 96 | XBD9.0/60G-HKG | 0.9 | 90 | 2900 | |
| 97 | XBD10.0/60G-HKG | 1 | 90 | 2900 | |
| 98 | XBD11.0/60G-HKG | 1.1 | 110 | 2900 | |
| 99 | XBD12.0/60G-HKG | 1.2 | 110 | 2900 | |
| 100 | XBD3.2/70G-HKG | 0.32 | 70 | 45 | 1480 |
| 101 | XBD4.0/70G-HKG | 0.4 | 55 | 1480 | |
| 102 | XBD4.5/70G-HKG | 0.45 | 55 | 1480 | |
| 103 | XBD5.0/70G-HKG | 0.5 | 75 | 1480 | |
| 104 | XBD5.5/70G-HKG | 0.55 | 75 | 1480 | |
| 105 | XBD6.0/70G-HKG | 0.6 | 75 | 1480 | |
| 106 | XBD6.5/70G-HKG | 0.65 | 90 | 1480 | |
| 107 | XBD7.0/70G-HKG | 0.7 | 90 | 1480 | |
| 108 | XBD7.5/70G-HKG | 0.75 | 110 | 1480 | |
| 109 | XBD8.0/70G-HKG | 0.8 | 110 | 1480 | |
| 110 | XBD8.5/70G-HKG | 0.85 | 132 | 1480 | |
| 111 | XBD9.0/70G-HKG | 0.9 | 132 | 1480 | |
| 112 | XBD3.2/80G-HKG | 0.32 | 80 | 55 | 1480 |
| 113 | XBD4.0/80G-HKG | 0.4 | 75 | 1480 | |
| 114 | XBD4.5/80G-HKG | 0.45 | 75 | 1480 | |
| 115 | XBD5.0/80G-HKG | 0.5 | 75 | 1480 | |
| 116 | XBD5.5/80G-HKG | 0.55 | 90 | 1480 | |
| 117 | XBD6.0/80G-HKG | 0.6 | 90 | 1480 | |
| 118 | XBD6.5/80G-HKG | 0.65 | 110 | 1480 | |
| 119 | XBD7.0/80G-HKG | 0.7 | 110 | 1480 | |
| 120 | XBD7.5/80G-HKG | 0.75 | 132 | 1480 | |
| 121 | XBD8.0/80G-HKG | 0.8 | 132 | 1480 | |
| 122 | XBD8.5/80G-HKG | 0.85 | 160 | 1480 | |
| 123 | XBD9.0/80G-HKG | 0.9 | 160 | 1480 | |
| 124 | XBD3.2/90G-HKG | 0.32 | 90 | 55 | 1480 |
| 125 | XBD4.0/90G-HKG | 0.4 | 75 | 1480 | |
| 126 | XBD4.2/90G-HKG | 0.42 | 75 | 1480 | |
| 127 | XBD4.5/90G-HKG | 0.45 | 75 | 1480 | |
| 128 | XBD5.0/90G-HKG | 0.5 | 75 | 1480 | |
| 129 | XBD5.5/90G-HKG | 0.55 | 90 | 1480 | |
| 130 | XBD6.0/90G-HKG | 0.6 | 90 | 1480 | |
| 131 | XBD6.5/90G-HKG | 0.65 | 110 | 1480 | |
| 132 | XBD7.0/90G-HKG | 0.7 | 110 | 1480 | |
| 133 | XBD7.5/90G-HKG | 0.75 | 132 | 1480 | |
| 134 | XBD8.0/90G-HKG | 0.8 | 132 | 1480 | |
| 135 | XBD8.5/90G-HKG | 0.85 | 160 | 1480 | |
| 136 | XBD9.0/90G-HKG | 0.9 | 160 | 1480 | |
| 137 | XBD3.2/100G-HKG | 0.32 | 100 | 55 | 1480 |
| 138 | XBD4.0/100G-HKG | 0.4 | 75 | 1480 | |
| 139 | XBD4.5/100G-HKG | 0.45 | 75 | 1480 | |
| 140 | XBD5.0/100G-HKG | 0.5 | 75 | 1480 | |
| 141 | XBD5.5/100G-HKG | 0.55 | 90 | 1480 | |
| 142 | XBD6.0/100G-HKG | 0.6 | 90 | 1480 | |
| 143 | XBD6.5/100G-HKG | 0.65 | 110 | 1480 | |
| 144 | XBD7.0/100G-HKG | 0.7 | 110 | 1480 | |
| 145 | XBD7.5/100G-HKG | 0.75 | 132 | 1480 | |
| 146 | XBD8.0/100G-HKG | 0.8 | 132 | 1480 | |
| 147 | XBD8.5/100G-HKG | 0.85 | 160 | 1480 | |
| 148 | XBD9.0/100G-HKG | 0.9 | 160 | 1480 | |
