鞋厂专用UVC能量计真正德国 230-280nm 流水线消毒柜用型号：UVC UV-Integrator140

UVC UV-Integrator140是一种高质量的紫外线测量仪器。当然我们主要应用在鞋机的杀菌消毒紫外线能量值的测试。当然其他只要是测试UVC紫外线杀菌灯都可以用这款。

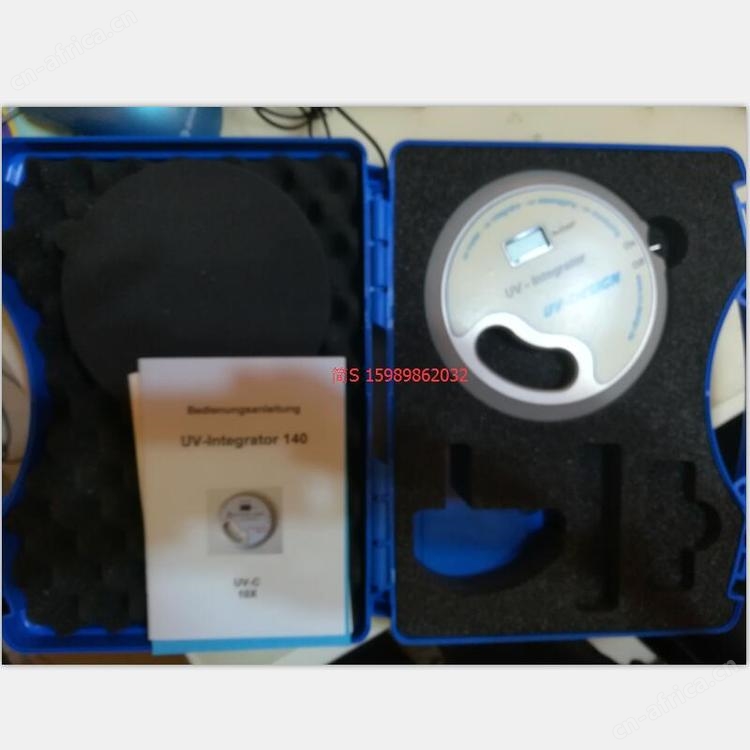

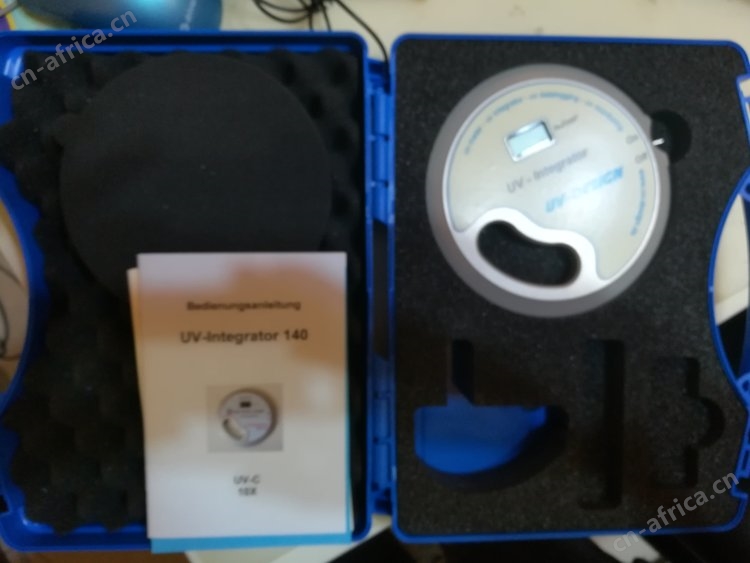

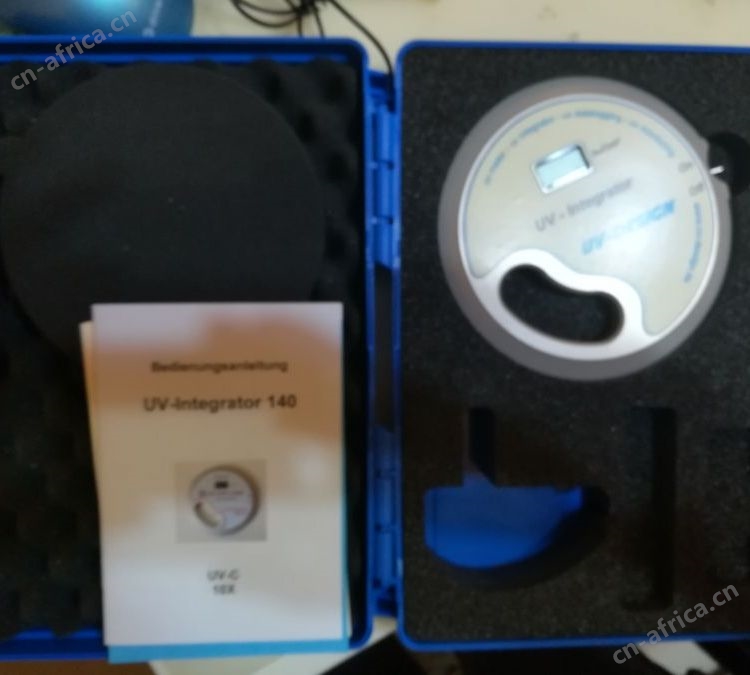

原厂手柄式设计外观，方便操作，抓握。这种UVC能量计可以很快判定灯管是否合格，对紫外线快速做出响应。这种UVC UV-Integrator140能量计尺寸比UVC UV-Integrator150大一倍左右，散热更好，耐高温强，数据稳定，使用寿命更长。

德国UV-DESIGN公司的UV能量计分以下几种，购买时请注意选对型号，默认是发250-410nm全波段的UV能量计。

Item 9.1 UV-Integrator 140, Type 1, Diazo 350 – 460 nm
Item 9.2 UV-Integrator 140, Type 2, UV-A 315 – 400 nm
Item 9.3 UV-Integrator 140, Type 3, UV 250 – 410 nm
Item 9.4 UV-Integrator 140, Type 4, UV-B 280 – 315 nm
Item 9.5 UV-Integrator 140, Type 5, UV-C 230 – 280 nm
Item 9.6 UV-Integrator 140, Type 6, UV-V 395 – 445 nm
如果需要测试其他波段，可以向原厂提出定制要求。
因为UV能量计设计原理是通过增加曝光周期中的光量的发生率，计算出相对值。
由于紫外光源辐射分布不均匀，不同厂家的测量装置结构不同，在相同的测量条件下会出现不同的

技术数据：
光谱范围：250 - 410nm
测量范围：0～5000毫瓦/厘米2
显示：6位液晶显示
显示范围：0至999999毫焦/厘米2
电源：长寿命3.6V锂电池
消耗功率：100μA
电池使用寿命：10000小时
∅尺寸：∅ 5.5" (140 mm) height ½" (13 mm)
重量：约16盎司（450克。）
温度范围：0摄氏度至45摄氏度
防热：背板隔热板
基准精度：+-5%
在传送带上，UVC UV-Integrator140能承受110°C / 230°F达10秒。这个
外壳的温度不应超过45°C / 113°F。

校准:
为了保持其功能和精度，建议每年重新校准一次。重新更换电池后也需要校准。目前，原厂出PTB校准证书

售后:
自购买之日起2年。电池部分保一年。电池为耗材。

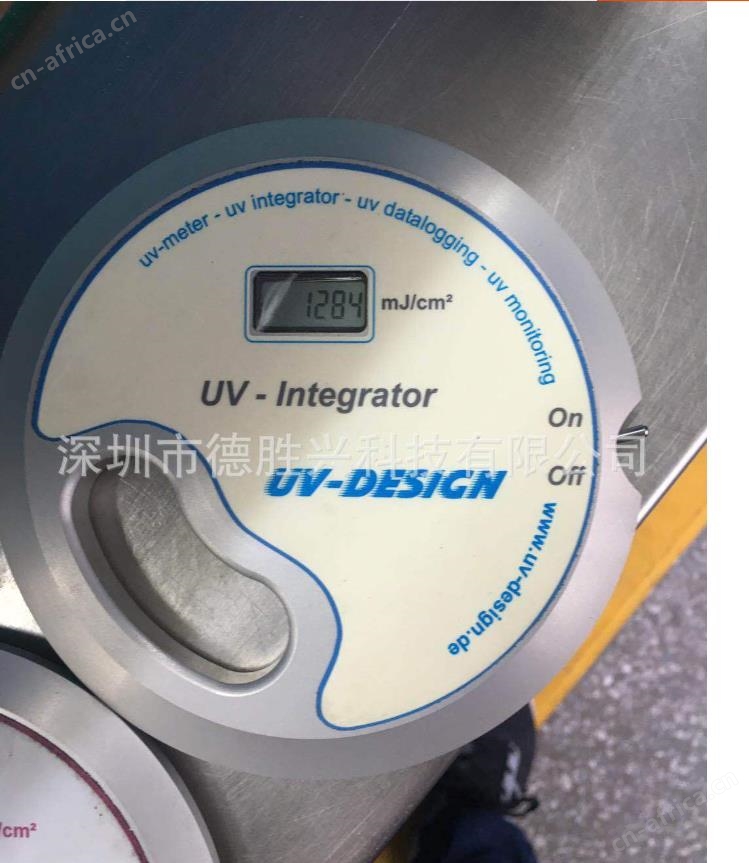

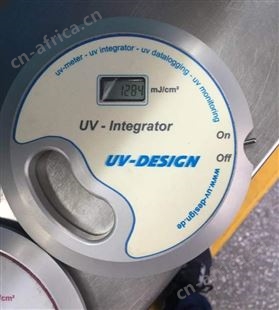

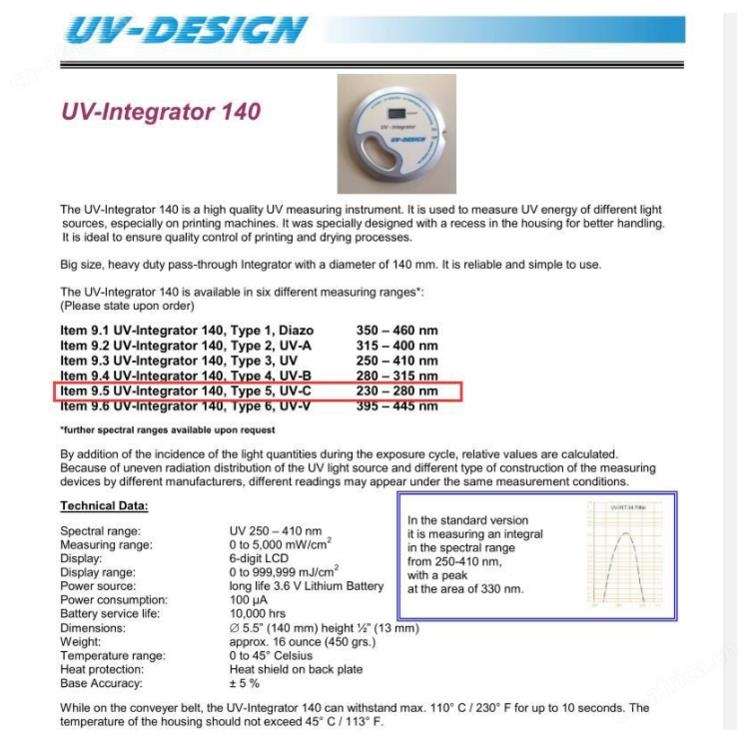

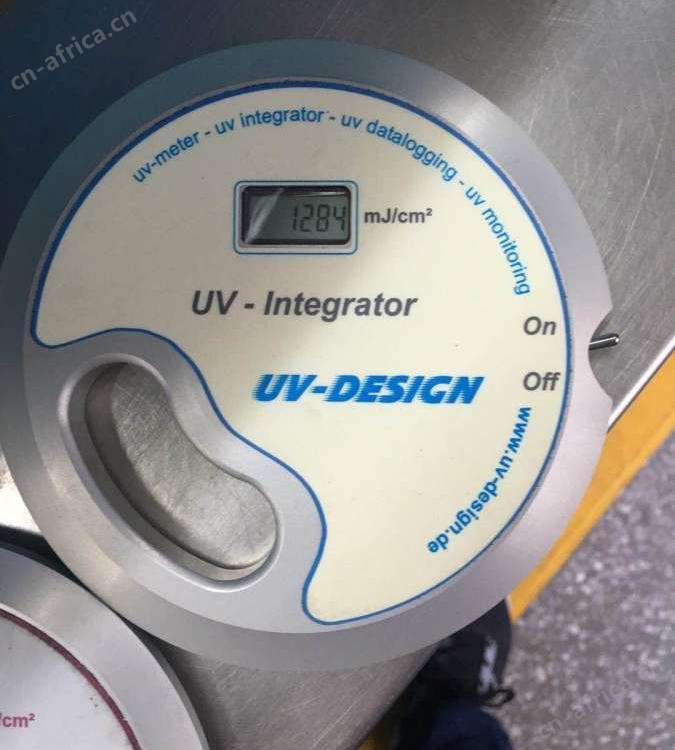

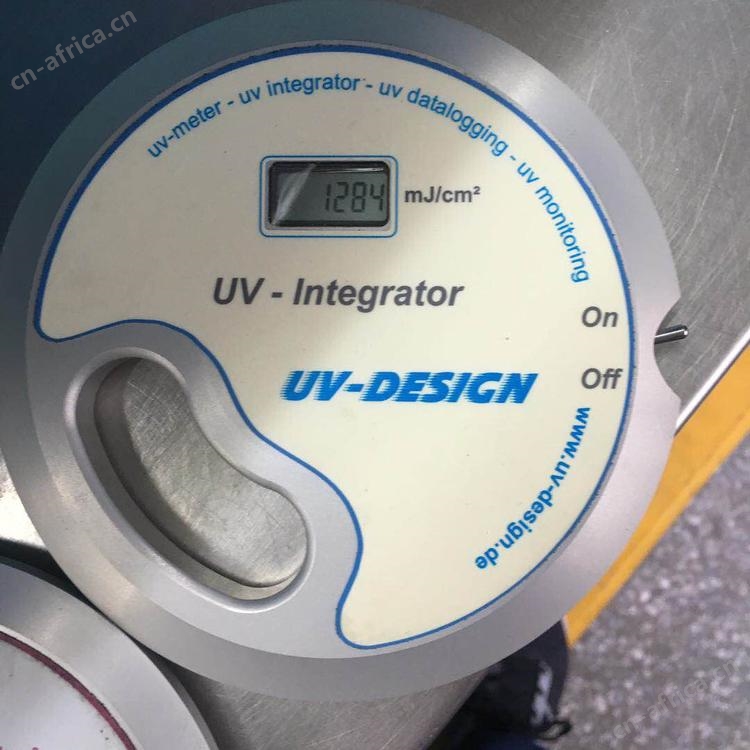

The UV-Integrator 140 is a high quality UV measuring instrument. It is used to measure UV energy of different light
sources, especially on printing machines. It was specially designed with a recess in the housing for better handling.
It is ideal to ensure quality control of printing and drying processes.

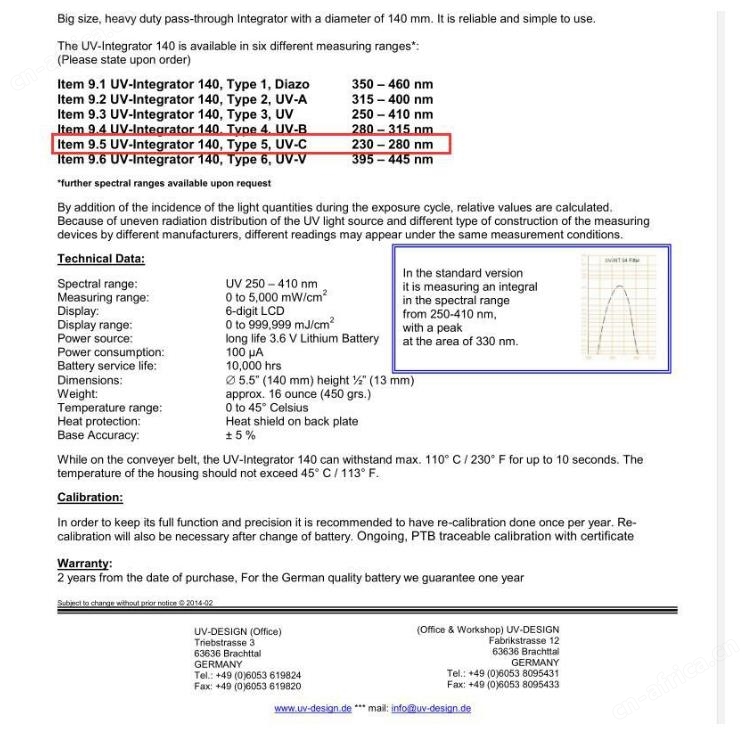

Big size, heavy duty pass-through Integrator with a diameter of 140 mm. It is reliable and simple to use.
The UV-Integrator 140 is available in six different measuring ranges*:

(Please state upon order)
Item 9.1 UV-Integrator 140, Type 1, Diazo 350 – 460 nm
Item 9.2 UV-Integrator 140, Type 2, UV-A 315 – 400 nm
Item 9.3 UV-Integrator 140, Type 3, UV 250 – 410 nm
Item 9.4 UV-Integrator 140, Type 4, UV-B 280 – 315 nm
Item 9.5 UV-Integrator 140, Type 5, UV-C 230 – 280 nm
Item 9.6 UV-Integrator 140, Type 6, UV-V 395 – 445 nm
*further spectral ranges available upon request

By addition of the incidence of the light quantities during the exposure cycle, relative values are calculated.
Because of uneven radiation distribution of the UV light source and different type of construction of the measuring
devices by different manufacturers, different readings may appear under the same measurement conditions.
Technical Data:
Spectral range: UV 250 – 410 nm
Measuring range: 0 to 5,000 mW/cm 2
Display: 6-digit LCD
Display range: 0 to 999,999 mJ/cm 2

Power source: long life 3.6 V Lithium Battery
Power consumption: 100 μA
Battery service life: 10,000 hrs
Dimensions: ∅ 5.5" (140 mm) height ½" (13 mm)
Weight: approx. 16 ounce (450 grs.)
Temperature range: 0 to 45° Celsius
Heat protection: Heat shield on back plate
Base Accuracy: ± 5 %
While on the conveyer belt, the UV-Integrator 140 can withstａnd max. 110° C / 230° F for up to 10 seconds. The
temperature of the housing should not exceed 45° C / 113° F.

Calibration:
In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-
calibration will also be necessary after change of battery. Ongoing, PTB traceable calibration with certificate
Warranty:
2 years from the date of purchase, For the German quality battery we guarantee one year。
