TXC 8Y 晶振SMD2016 24MHz规格说明,如下：

标准测试条件Standard atmospheric conditions

If there is any doubt about the results, measurement shall be made within the following limits:

环境温度Ambient temperature: 25±3℃

相对湿度Relative humidity: 40%~70%

石英切型Crystal cutting type

The crystal is using AT CUT (thickness shear mode).

晶振单体重量Unit Weight: 0.005±0.002 g/pcs

测试设备Measure equipment

Electrical characteristics measured by S&A250B or equivalent.

TXC 8Y 晶振SMD2016 24MHz MAIN ELECTRICAL SPECIFICATIONS主要电气参数

• 标称频率 Nominal Frequency: 24.000000MHz

• 封装类型 Holder Type: SMD 2.0*1.6

• 振动模式 Vibration Mode: Fundamental（基频）

• 调整频差 Frequency Tolerance（+25℃）: ±10 ppm

• 频率稳定度 Frequency Stability: ±15 ppm (Over Operating Temp. Range (Reference 25℃）

• 工作温度范围 Operating Temperature Range: -40 to +85℃

• 等效电阻 Equivalent Series Resistance : 50 ohms.

• 静电容 Shunt Capacitance(C0): 3pF Maximum

• 负载电容 Load Capacitance: 9pF

• 激励功率 Drive Level: 100 μw

• 绝缘阻抗Insulation Resistance: 500M ohms. （at DC 100V）

• 年老化率 Aging Rate a year: ≤±1 ppm (1^st Year)

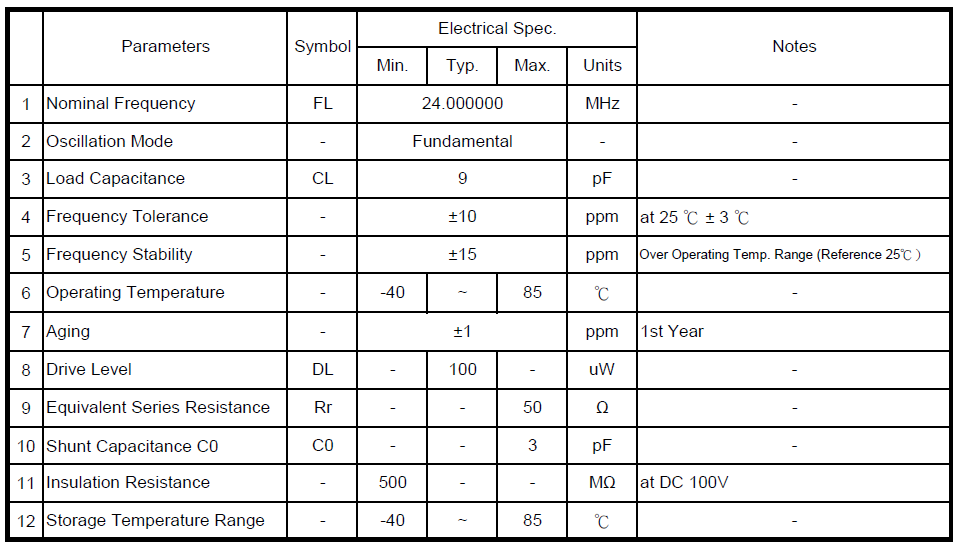

TXC 8Y 晶振SMD2016 24MHz PARAMETERS AND ELECTRICAL SPECIFICATIONS电气参数详情

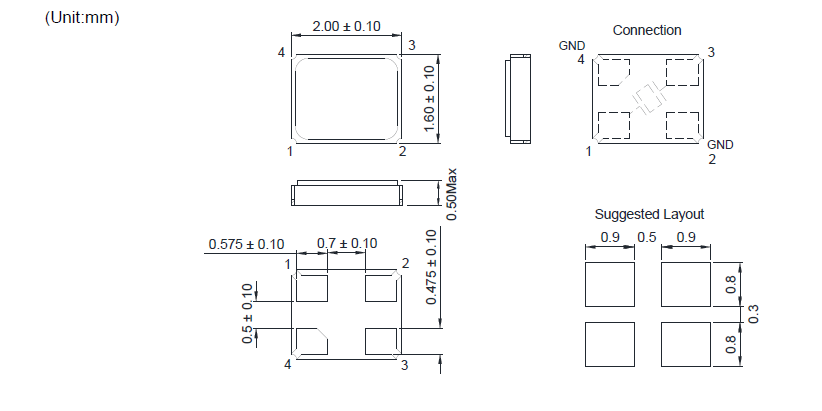

TXC 8Y 晶振SMD2016 24MHz DIMENSIONS AND PADS尺寸及焊盘说明

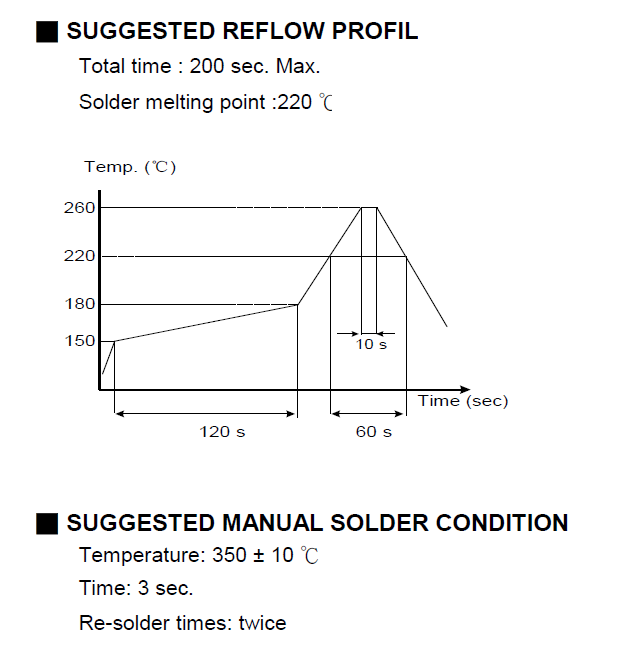

TXC 8Y 晶振SMD2016 24MHz回流焊及手焊说明SUGGESTED REFLOW AND MANUAL SOILDER CONDITIONS
